Wastewater/Activity/PacpInspection/1.0Jun 27, 2017, 09:18 AM
15 0123_15 0122 _27062017_022842.mp4
- Date
- 06/27/2017
- W/O
- 624421
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00634
- PipeID
- P12021
- Time
- 2:18 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4594
- Sewer Name
- 15 TYLER AVENUE TRUNK
- City
- EL MONTE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_624421_TV15037_JUN2017
- Material
- NRCP
- Shape
- Circular
- Height
- 18 in.
- Width
- 18 in.
- Upstream MH
- 15 0122
- Downstream MH
- 15 0123
- Dir. of Survey
- Upstream
- Length Surveyed
- 130.5 ft.
- Total Length
- 130.5 ft.
- Structural Index
- 3
- Structural Quick
- 3D00
- Structural Rating
- 75
- O&M Index
- 2
- O&M Quick
- 2D00
- O&M Rating
- 50
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 125
Observation photos (2)

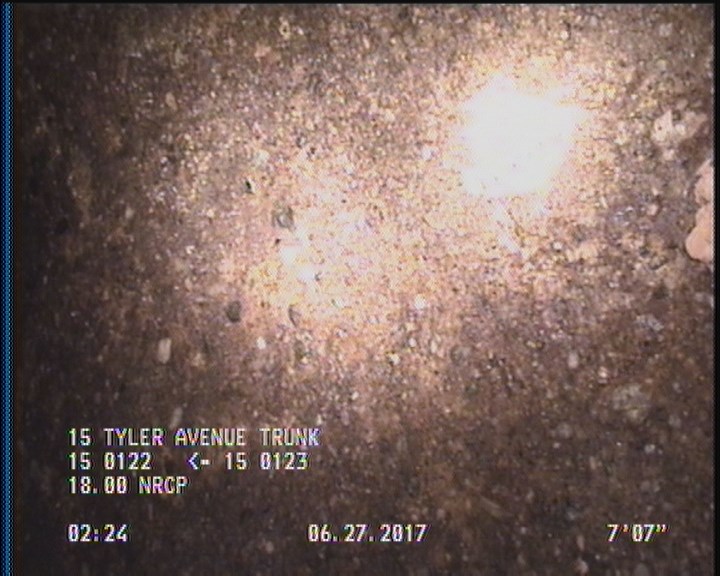

2 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

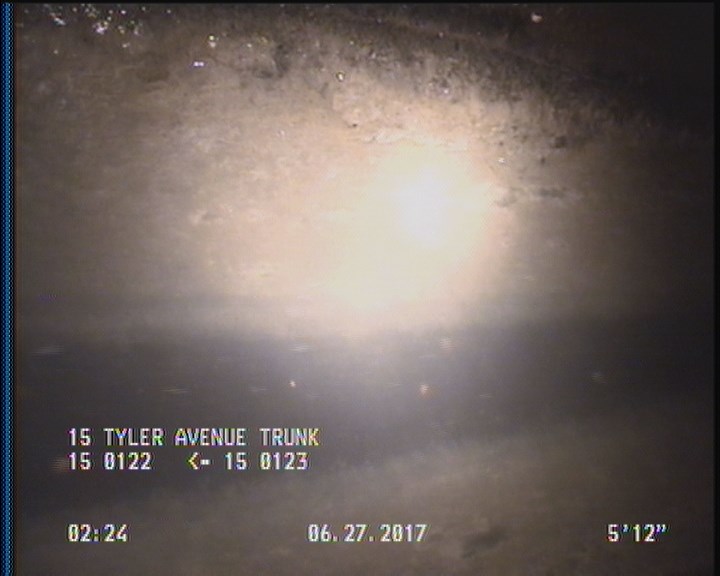

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAV | — |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 128 | MGO | COCKROACHES IN MANHOLE |
| 128 | DAGS | — |
| 19.1 | TFC | — |
| 2 | DAGS | — |
| 128 | SAV | — |
| 0 | AMH | 15 0123 |
| 130.5 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 0 | MWL | — |
| 130.5 | AMH | 15 0123 |
| 0 | MWM | — |
| 94.4 | TF | — |
| 130.5 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 6 | TFC | — |
Properties (5)
- additional_info
- SC345342
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-27T02:18:49-07:00
- sewer_category
- Gravity
