Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 20, 2017, 10:18 AM

  • 15 0132_15 0131 _20062017_033535.mpg

Date
06/20/2017
W/O
624421
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00634
PipeID
P12031
Time
3:18 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4622
Sewer Name
15 TYLER AVENUE TRUNK
City
EL MONTE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 15
Page No.
23
Purpose
Routine Assessment
Project
WO_624421_TV15037_JUN2017
Material
NRCP
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
15 0132
Downstream MH
15 0131
Dir. of Survey
Downstream
Length Surveyed
387.4 ft.
Total Length
387.4 ft.
Structural Index
3
Structural Quick
3100
Structural Rating
3
O&M Index
2
O&M Quick
2211
O&M Rating
5
Overall Index
2
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 15 0132 to 15 0131
MH: 15 0132MH: 15 0131downstream0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 15 01322.3 ft. MGO - General Observation - MAG COAT2.3 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start25.1 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"107.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"186.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"263.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"278.7 ft. RFB - Roots Fine Barrell, at 09 o'clock286.9 ft. RFJ - Roots Fine Joint, from 09 to 01 o'clock, within 8 inches of joint: YES337.9 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES339.6 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"387.4 ft. AMH - Downstream Manhole, Survey Ends - 15 0131387.4 ft. SAV - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (2)

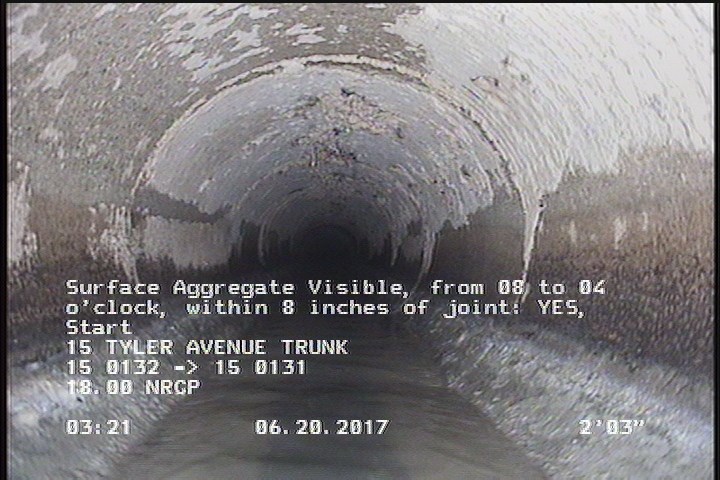

  • Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.3 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

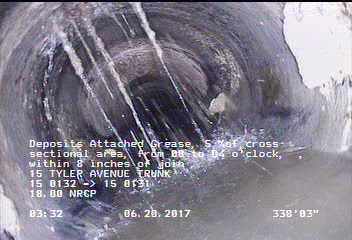

  • Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

    337.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: YES

All inspections of P12031Work order 624421

Observations (15)

DistanceCodeObservation
337.9DAGS—
186.6TFA—
2.3MGOMAG COAT
0MWL—
0MWM—
278.7RFB—
0AMH15 0132
286.9RFJ—
387.4AMH15 0131
263.9TFA—
25.1TF—
387.4SAV—
107.6TFA—
2.3SAV—
339.6TFA—

Properties (5)

additional_info
SC345337
custom_field_two
3
customer
LACSD
datetime
2017-06-20T03:18:47-07:00
sewer_category
Gravity
