Wastewater/Activity/PacpInspection/1.0Aug 14, 2017, 10:38 AM
B 0137_B 0136_8142017_043435.mp4
- Date
- 08/14/2017
- W/O
- 0646215
- Weather
- Dry
- Operator/Surveyor
- MARTIN
- Sewer ID
- Z00074
- PipeID
- P08612
- Time
- 3:38 AM
- Certificate
- U-1014-06022543
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- H0614
- Sewer Name
- B JOINT OUTFALL B - UNIT 1C
- City
- DOWNEY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- 20170814MDM_JOINT_OUTFALL_B_UNIT_1C
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Upstream MH
- B 0136
- Downstream MH
- B 0137
- Dir. of Survey
- Upstream
- Length Surveyed
- 6 ft.
- Total Length
- 6 ft.
- Structural Index
- 2
- Structural Quick
- 2100
- Structural Rating
- 2
- O&M Index
- 5
- O&M Quick
- 5100
- O&M Rating
- 5
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (5)
0 ft. - Water Level, 80 %of cross sectional area
1 ft. - General Observation - AIR VENT

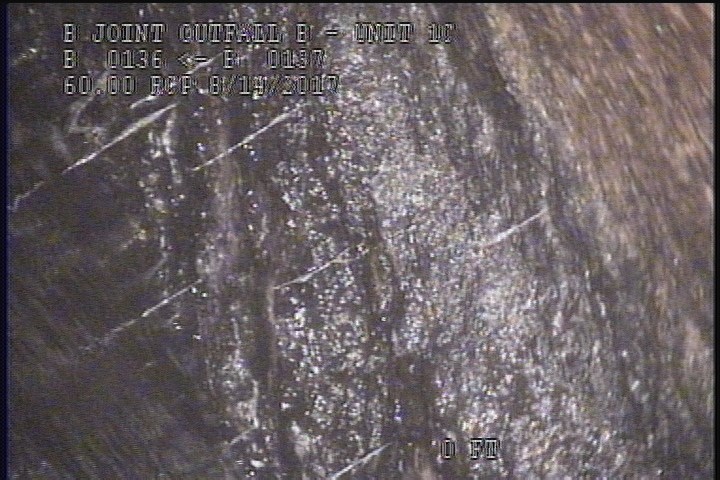

3 ft. - General Observation - GREASE COAT ON PIPE
4 ft. - Surface Spalling, from 10 to 02 o'clock, within 8 inches of joint: NO - SWOLLEN BLISTERING CONRETE POSSIBLE
6 ft. - Survey Abandoned - UPLEG DOWNSTREAM SIPHON
Observations (7)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 4:45AM |
| 3 | MGO | GREASE COAT ON PIPE |
| 6 | MSA | UPLEG DOWNSTREAM SIPHON |
| 4 | SSS | SWOLLEN BLISTERING CONRETE POSSIBLE |
| 0 | MWL | — |
| 0 | MWM | — |
| 1 | MGO | AIR VENT |
Properties (5)
- additional_info
- UPLEG DOWNSTREAM SIPHON
- custom_field_three
- SPALLING BLISTERING CONCRETE - GREASE COAT ON PIPE
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-08-14T03:38:13-07:00
