Wastewater/Activity/PacpInspection/1.0Jul 17, 2017, 09:30 AM
J 0190_J 0189 _07172017_023036.mp4
- Date
- 07/17/2017
- W/O
- 641001
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00055
- PipeID
- P11429
- Time
- 2:30 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4709
- Sewer Name
- J JOINT OUTFALL J - UNIT 1C
- City
- SAN PEDRO
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 47A
- Purpose
- Routine Assessment
- Project
- WO_641001_TV05283_JUN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 30 in.
- Width
- 30 in.
- Upstream MH
- J 0190
- Downstream MH
- J 0189
- Dir. of Survey
- Downstream
- Length Surveyed
- 181.8 ft.
- Total Length
- 181.8 ft.
- Structural Index
- 3
- Structural Quick
- 3F00
- Structural Rating
- 105
- O&M Index
- 2
- O&M Quick
- 2L00
- O&M Rating
- 128
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 233
Observation photos (3)

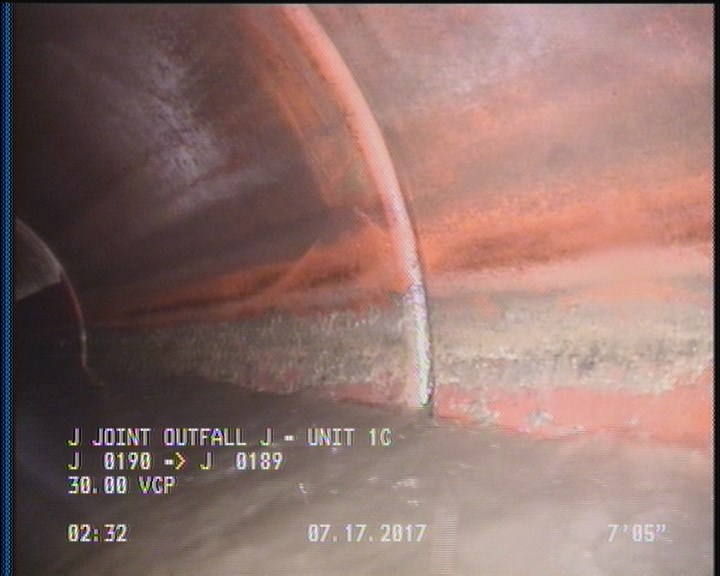

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

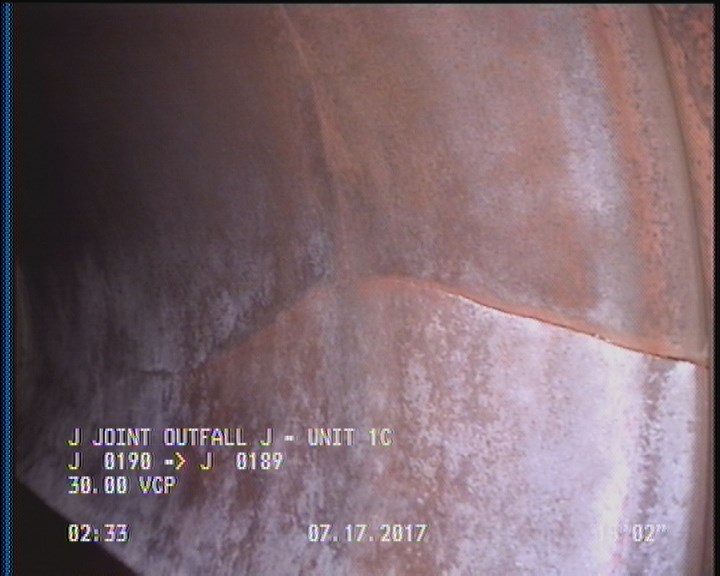

7.4 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

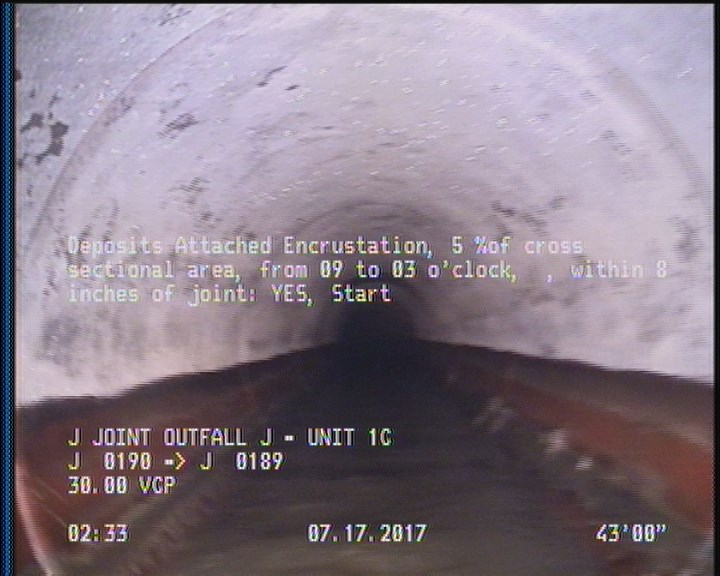

40.4 ft. - Deposits Attached Encrustation, 5 %of cross sectional area, from 09 to 03 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | J 0190 |
| 181.8 | CM | — |
| 181.8 | DAE | — |
| 7.4 | CM | — |
| 181.8 | AMH | J 0189 |
| 181.8 | DAGS | — |
| 0 | MWL | — |
| 40.4 | DAE | — |
| 0 | MWM | — |
| 2 | DAGS | — |
Properties (5)
- additional_info
- SC345442
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-17T02:30:15-07:00
- sewer_category
- Gravity
