Wastewater/Activity/PacpInspection/1.0Jun 13, 2017, 11:01 AM
20 0213A_20 0213_13062017_040217.mp4
- Date
- 06/13/2017
- W/O
- 640960
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00750
- PipeID
- P19181
- Time
- 4:01 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4580
- Sewer Name
- 20 20TH STREET EAST TRUNK
- City
- PALMDALE
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 20
- Page No.
- 07
- Purpose
- Routine Assessment
- Project
- WO_640960_TV20003_JUN2017
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 10 in.
- Width
- 10 in.
- Upstream MH
- 20 0213
- Downstream MH
- 20 0213A
- Dir. of Survey
- Upstream
- Length Surveyed
- 97.9 ft.
- Total Length
- 97.9 ft.
- Structural Index
- 3
- Structural Quick
- 3B00
- Structural Rating
- 42
- O&M Index
- 2
- O&M Quick
- 412C
- O&M Rating
- 42
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 84
Observation photos (2)

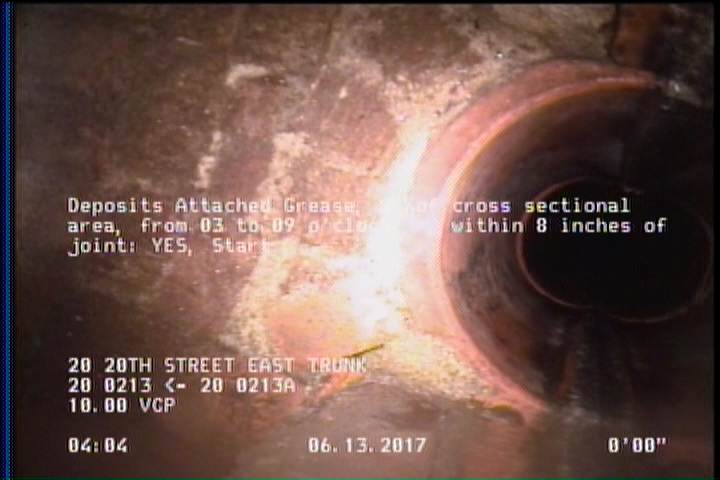

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

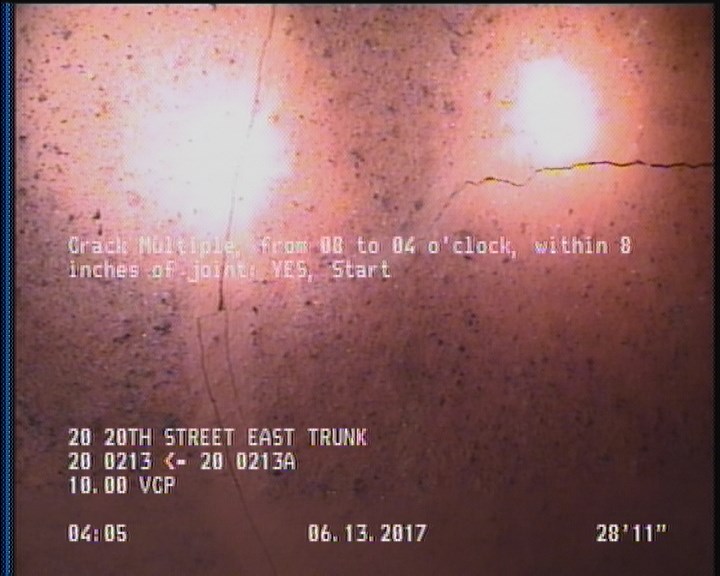

28.9 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (13)
| Distance | Code | Observation |
|---|---|---|
| 95.2 | TFC | — |
| 97.9 | AMH | 20 0213A |
| 2 | DAGS | — |
| 43.6 | TFA | — |
| 0 | AMH | 20 0213 |
| 46.7 | TFC | — |
| 96.9 | DAGS | — |
| 28.9 | CM | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 96.9 | CM | — |
| 97.9 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 92.2 | TFC | — |
Properties (5)
- additional_info
- SC345406
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-13T04:01:41-07:00
- sewer_category
- Gravity
