Wastewater/Activity/PacpInspection/1.0Jul 7, 2017, 05:46 AM
H 0749_H 0748_06072017_232537.mp4
- Date
- 07/06/2017
- W/O
- 640626
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00941
- PipeID
- P11158
- Time
- 10:46 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4553
- Sewer Name
- H JOINT OUTFALL H - UNIT 9B
- City
- WEST COVINA
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 30
- Purpose
- Routine Assessment
- Project
- WO_640626_TV22077_JUN2017
- Material
- NRCP
- Shape
- Circular
- Height
- 25 in.
- Width
- 25 in.
- Upstream MH
- H 0749
- Downstream MH
- H 0748
- Dir. of Survey
- Downstream
- Length Surveyed
- 797.9 ft.
- Total Length
- 797.9 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 7
Observation photos (3)

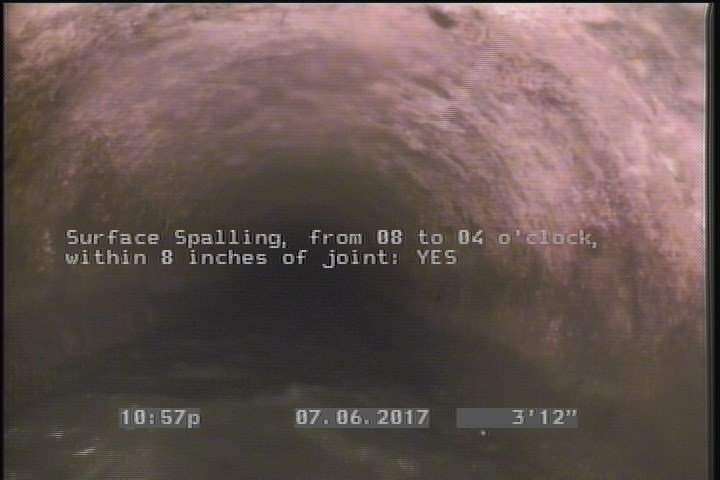

4 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

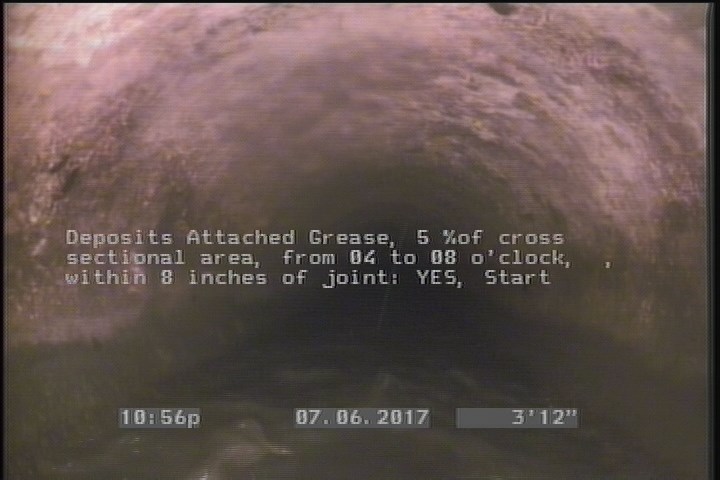

4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

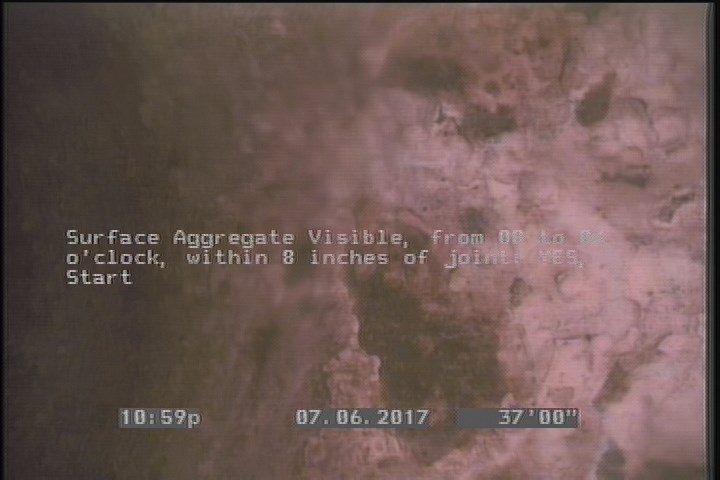

37 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 4 | SSS | — |
| 9.1 | MGO | MAG COATING |
| 37 | SAV | — |
| 4 | DAGS | — |
| 0 | MWL | — |
| 797.9 | DAGS | — |
| 797.9 | SSS | — |
| 0 | AMH | H 0749 |
| 797.9 | AMH | H 0748 |
| 0 | MWM | — |
| 797.9 | SAV | — |
Properties (5)
- additional_info
- SC345391
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-07-06T22:46:21-07:00
- sewer_category
- Gravity
