Wastewater/Activity/PacpInspection/1.0Mar 23, 2017, 06:57 AM
- Date
- 03/22/2017
- W/O
- 624437
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00695
- PipeID
- P13991
- Time
- 11:57 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4416
- Sewer Name
- 18 ORR AND DAY ROAD TRUNK
- City
- NORWALK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_624437_TV18043_MAR2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 18 0168
- Downstream MH
- 18 0167
- Dir. of Survey
- Downstream
- Length Surveyed
- 90.4 ft.
- Total Length
- 90.4 ft.
- Structural Index
- 3
- Structural Quick
- 3C2C
- Structural Rating
- 90
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 90
Observation photos (2)

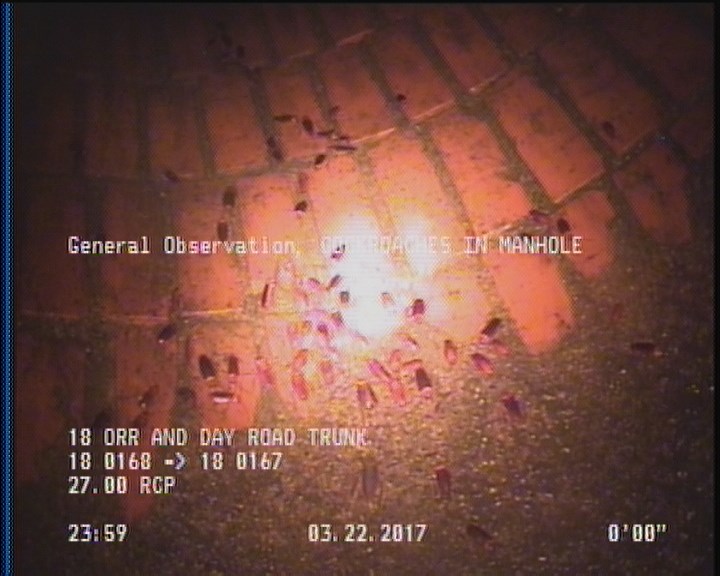

0 ft. - General Observation - COCKROACHES IN MANHOLE

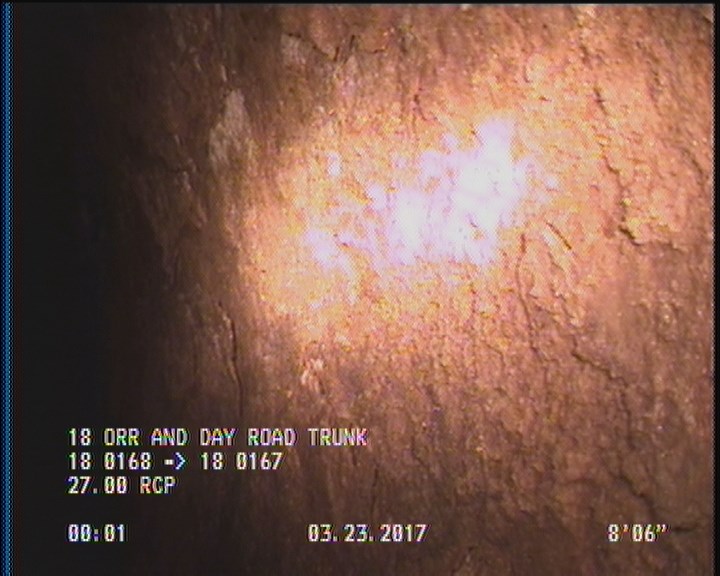

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 90.4 | AMH | 18 0167 |
| 0 | MWL | — |
| 0 | MWM | — |
| 2 | SSS | — |
| 0 | AMH | 18 0168 |
| 0 | MGO | COCKROACHES IN MANHOLE |
| 90.4 | SSS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
Properties (5)
- additional_info
- SC306981
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-03-22T23:57:32-07:00
- sewer_category
- Gravity
