Wastewater/Activity/PacpInspection/1.0May 17, 2017, 09:16 AM
- Date
- 05/17/2017
- W/O
- 607686
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00316
- PipeID
- P07920
- Time
- 2:16 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4528
- Sewer Name
- A JOA-1A DISTRICT 21 INTERCEPTOR
- City
- POMONA
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 14
- Purpose
- Routine Assessment
- Project
- WO_607686_TV21041_MAR2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 39 in.
- Width
- 39 in.
- Upstream MH
- A 0711
- Downstream MH
- A 0710
- Dir. of Survey
- Downstream
- Length Surveyed
- 10 ft.
- Total Length
- 10 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

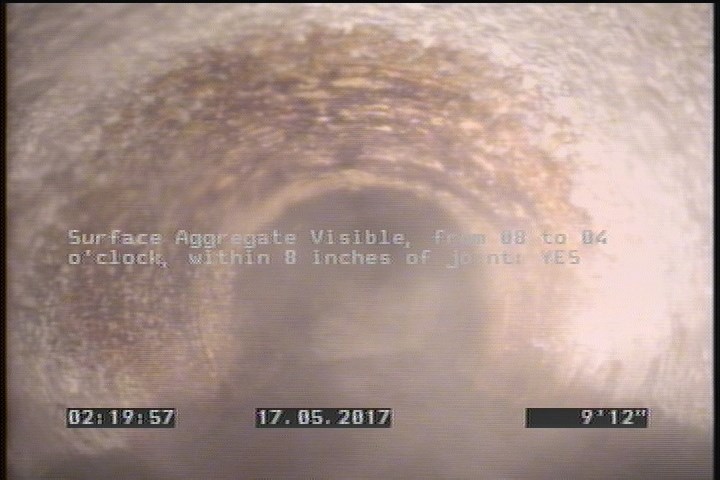

10 ft. - Surface Aggregate Visible, from 08 to 04 o'clock, within 8 inches of joint: YES

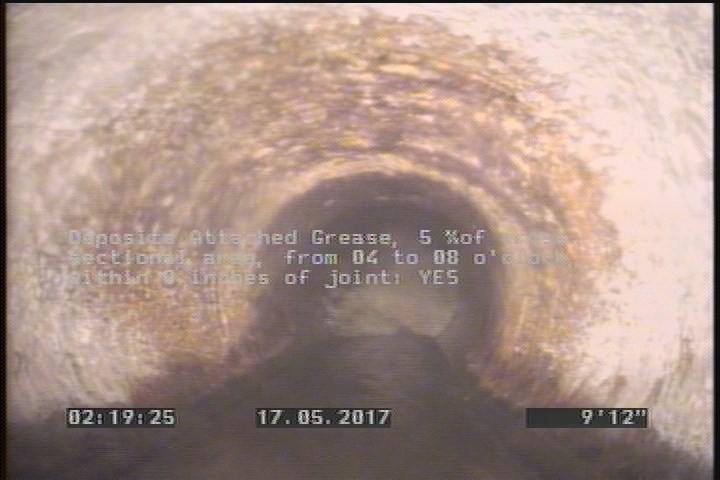

10 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

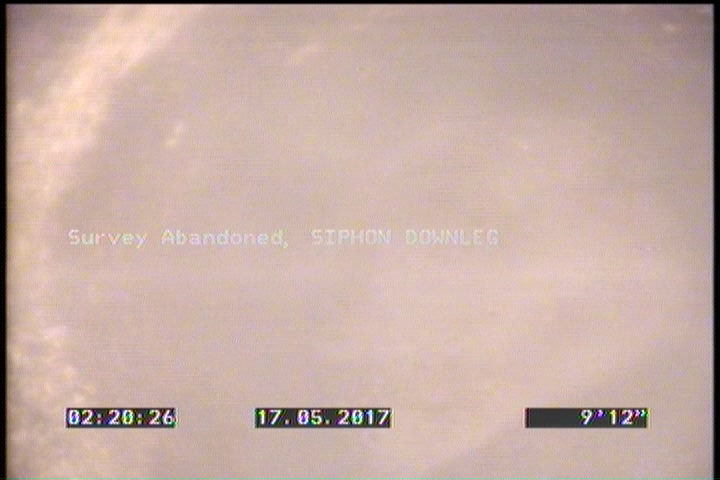

10 ft. - Survey Abandoned - SIPHON DOWNLEG
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 10 | SAV | — |
| 0 | MGO | — |
| 0 | MGO | MAG COATING |
| 10 | DAGS | — |
| 10 | MSA | SIPHON DOWNLEG |
| 0 | AMH | A 0711 |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC340742
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-05-17T02:16:38-07:00
- sewer_category
- Siphon
- year_laid
- 26232
