Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 21, 2016, 08:43 AM

  • 05 1471_05 1470_062116_014356.mpg

Date
06/21/2016
W/O
574372
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00438
PipeID
P06694
Time
1:43 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3401
Sewer Name
05 EL NIDO TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
23
Purpose
Routine Assessment
Project
WO_574372_TV05300_JUNE2016
Material
NRCP
Shape
Circular
Height
15 in.
Upstream MH
05 1471
Downstream MH
05 1470
Dir. of Survey
Downstream
Length Surveyed
324.8 ft.
Total Length
324.8 ft.
Structural Index
3
Structural Quick
3L2L
Structural Rating
320
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
320
Pipe schematic from manhole 05 1471 to 05 1470
MH: 05 1471MH: 05 1470downstream0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 14710 ft. MWL - Water Level, 10 %of cross sectional area2.1 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start2.9 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start36.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"89.9 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"93.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"144.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"162.3 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"192.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"242.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"247 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"293.6 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"320.7 ft. SAP - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish320.7 ft. SSS - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish324.8 ft. AMH - Downstream Manhole, Survey Ends - 05 1470324.8 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK

Observation photos (2)

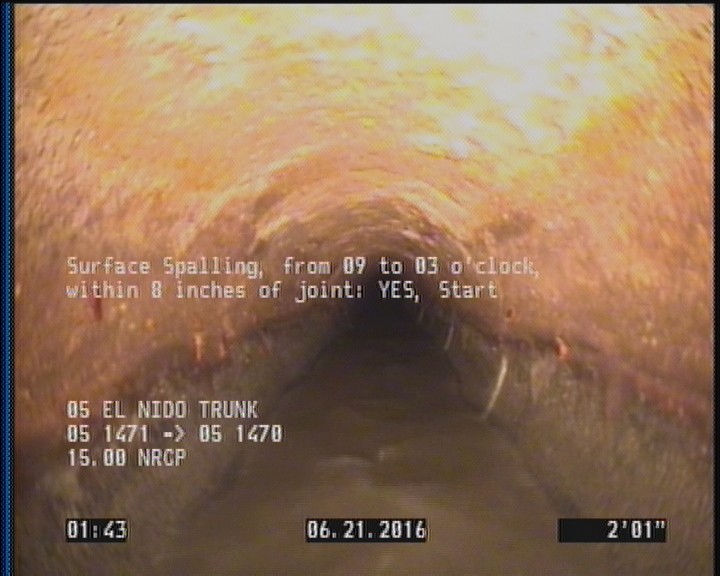

  • Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    2.1 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

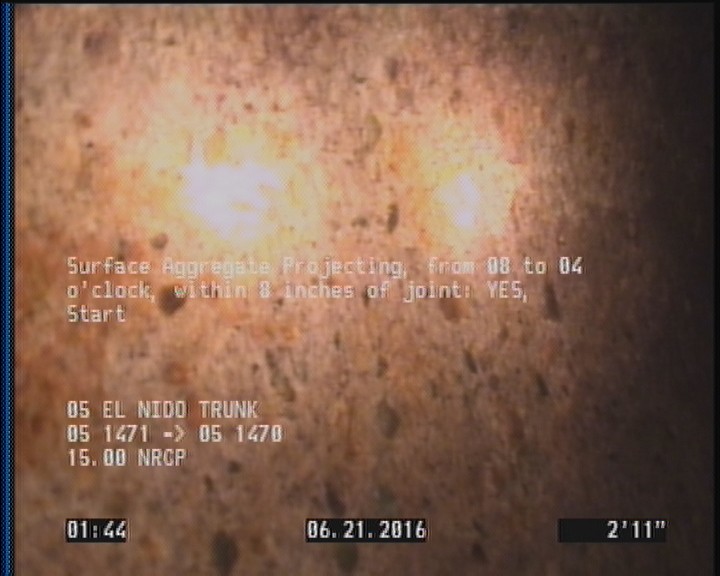

  • Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    2.9 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P06694Work order 574372

Observations (19)

DistanceCodeObservation
2.1SSS—
247TFA—
0MGOCONNECTION AT THE MH 3 O'CLOCK
2.9SAP—
320.7SAP—
324.8AMH05 1470
89.9TFA—
192.1TF—
242.8TF—
0MWM—
293.6TF—
93.6TFC—
0AMH05 1471
0MWL—
36.8TF—
324.8MGOCONNECTION AT THE MH 3 O'CLOCK
144.5TFC—
320.7SSS—
162.3TF—

Properties (4)

additional_info
SC305851
custom_field_two
2
customer
LACSD
datetime
2016-06-21T01:43:08-07:00
