Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 22, 2017, 07:34 AM

  • 05 1852_05 1851_8222017_004119.mp4

Date
08/22/2017
W/O
0652016
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00490
PipeID
P07077
Time
12:34 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0617
Sewer Name
05 NARBONNE AVENUE TRUNK, SECTION 1(EAST)
City
LOMITA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
35
Purpose
Routine Assessment
Project
20170821MDM_NARBONNE_AVENUE_TRUNK_SECTION_1_EAST
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 1851
Downstream MH
05 1852
Dir. of Survey
Upstream
Length Surveyed
354.3 ft.
Total Length
354.3 ft.
Structural Index
1
Structural Quick
1100
Structural Rating
1
O&M Index
1
O&M Quick
1100
O&M Rating
1
Overall Index
1
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole 05 1851 to 05 1852
MH: 05 1851MH: 05 1852upstream0 ft. AMH - Upstream Manhole, Survey Ends - 1:30AM0.3 ft. MGO - General Observation - SLIGHT OFFSET JOINTS THROUGHOUT REACH22.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open58.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open95.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped121.7 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open209.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open209.2 ft. RFL - Roots Fine Lateral, at 09 o'clock - 3%226.3 ft. JOM - Joint Offset Medium227.9 ft. MGO - General Observation - 8" VCP230.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open284.3 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped308.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open319 ft. MGO - General Observation - 8" VCP332 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Active354.3 ft. AMH - Downstream Manhole, Survey Begins - 12:35AM354.3 ft. MWL - Water Level, 5 %of cross sectional area354.3 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (4)

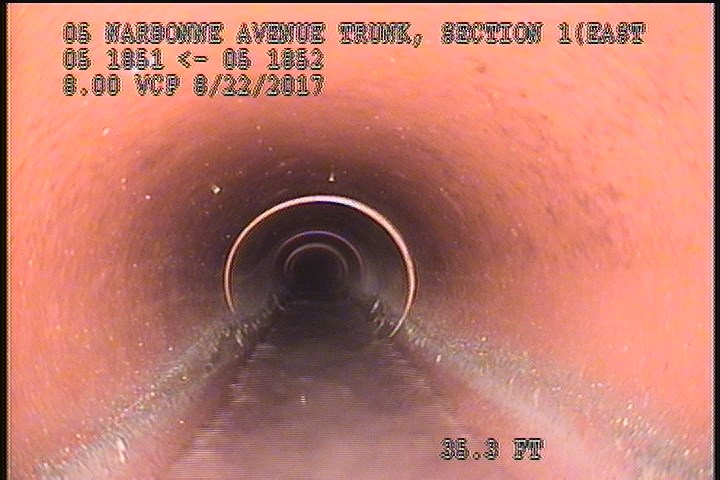

  • General Observation - 8" VCP

    35.3 ft. - General Observation - 8" VCP

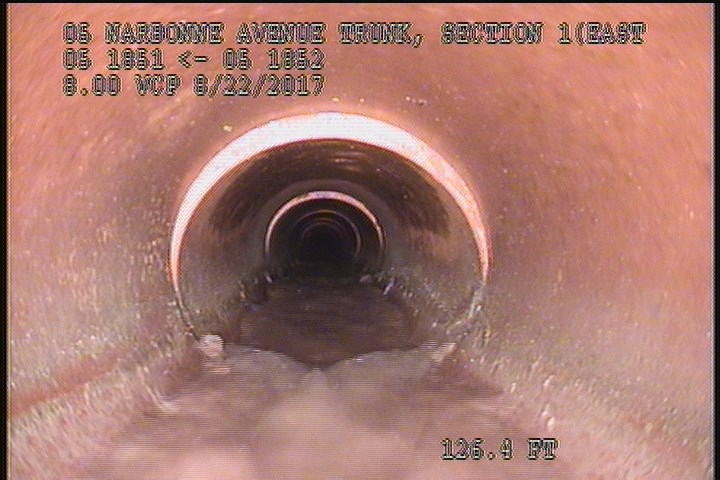

  • General Observation - 8" VCP

    126.4 ft. - General Observation - 8" VCP

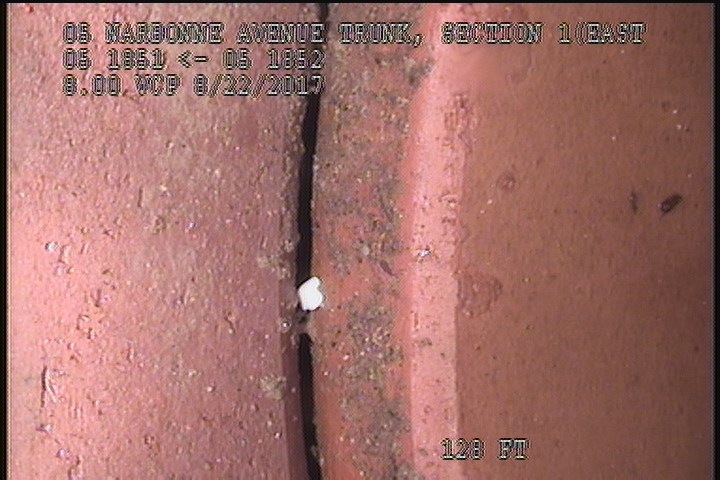

  • Joint Offset Medium

    128 ft. - Joint Offset Medium

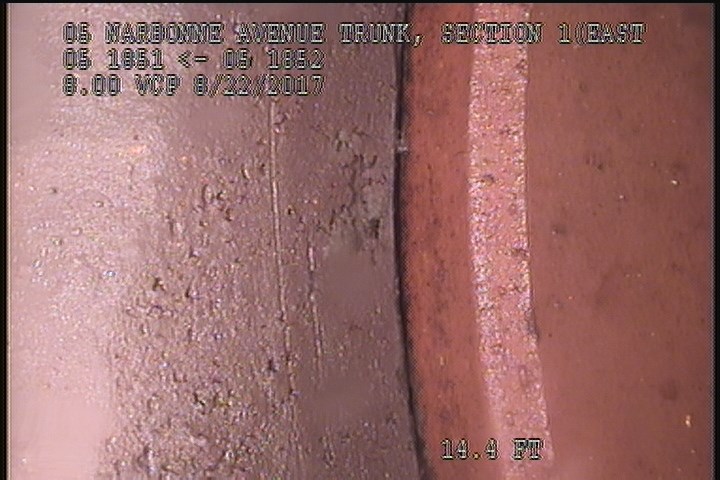

  • General Observation - SLIGHT OFFSET JOINTS THROUGHOUT REACH

    354 ft. - General Observation - SLIGHT OFFSET JOINTS THROUGHOUT REACH

All inspections of P07077Work order 0652016

Observations (18)

DistanceCodeObservation
145.1TFOpen
354MGOSLIGHT OFFSET JOINTS THROUGHOUT REACH
145.1RFL3%
126.4MGO8" VCP
295.4TFOpen
0AMH12:35AM
128JOM—
35.3MGO8" VCP
259.1TFCCapped
0MWL—
22.3TFActive
232.6TFOpen
46TFOpen
0MWM—
331.4TFOpen
70TFCCapped
124.1TFOpen
354.3AMH1:30AM

Properties (4)

custom_field_three
SLIGHT & MEDIUM OFFSETS THROUGHOUT REACH
custom_field_two
4
customer
LACSD
datetime
2017-08-22T00:34:24-07:00
