Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 21, 2017, 09:33 AM

  • 05 1855_05 1854_8212017_025421.mp4

Date
08/21/2017
W/O
0652016
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00490
PipeID
P07080
Time
2:33 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
H0616
Sewer Name
05 NARBONNE AVENUE TRUNK, SECTION 1(EAST)
City
LOMITA
Loc. details
Main Highway - Urban
Location Code
A
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
35
Purpose
Routine Assessment
Project
20170821MDM_NARBONNE_AVENUE_TRUNK_SECTION_1_EAST
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 1854
Downstream MH
05 1855
Dir. of Survey
Upstream
Length Surveyed
349.1 ft.
Total Length
349.1 ft.
Structural Index
1
Structural Quick
2118
Structural Rating
10
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
1
Overall Quick
—
Overall Rating
10
Pipe schematic from manhole 05 1854 to 05 1855
MH: 05 1854MH: 05 1855upstream0 ft. AMH - Upstream Manhole, Survey Ends - 3:40AM0.6 ft. MGO - General Observation - MEDIUM OFFSETS THROUGHOUT REACH77.3 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open113.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open148.5 ft. MGO - General Observation - 8" VCP161.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Capped213 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open236.6 ft. JOM - Joint Offset Medium245.5 ft. JOM - Joint Offset Medium264.2 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open272.3 ft. JOM - Joint Offset Medium290.7 ft. JOM - Joint Offset Medium312.5 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open326.4 ft. JOM - Joint Offset Medium335.5 ft. JOM - Joint Offset Medium336 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6" - Open337.5 ft. FC - Fracture Circumferential, from 08 to 10 o'clock, within 8 inches of joint: YES - HAIRLINE337.9 ft. JOM - Joint Offset Medium341.1 ft. JOM - Joint Offset Medium349.1 ft. AMH - Downstream Manhole, Survey Begins - 2:55AM349.1 ft. MWL - Water Level, 5 %of cross sectional area349.1 ft. MWM - Water Mark, 20 %of cross sectional area

Observation photos (9)

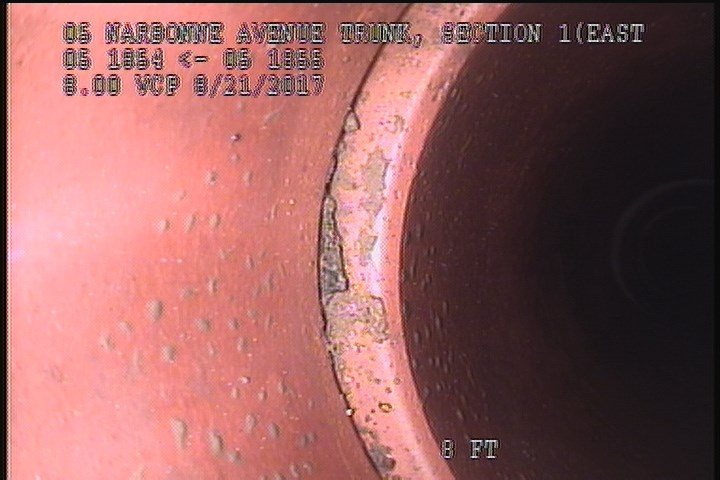

  • Joint Offset Medium

    8 ft. - Joint Offset Medium

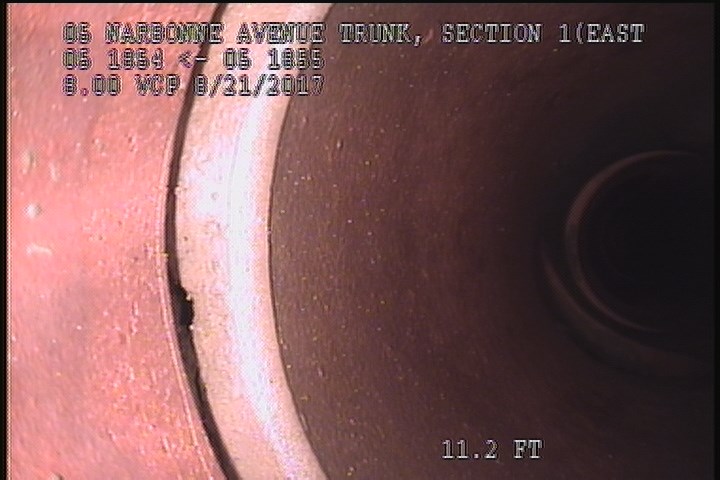

  • Joint Offset Medium

    11.2 ft. - Joint Offset Medium

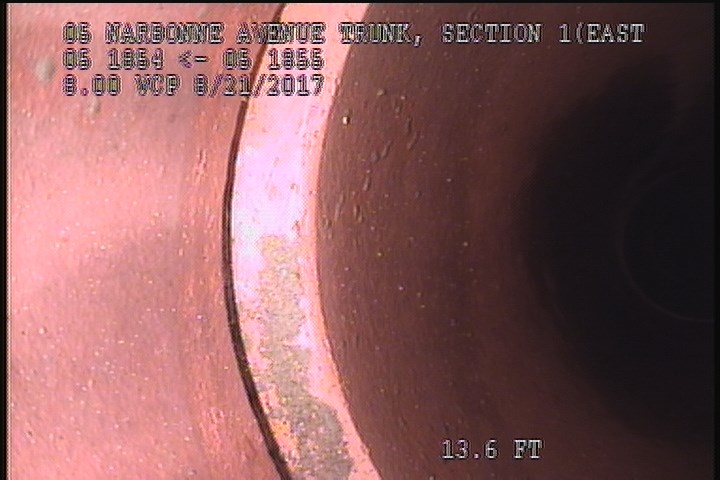

  • Joint Offset Medium

    13.6 ft. - Joint Offset Medium

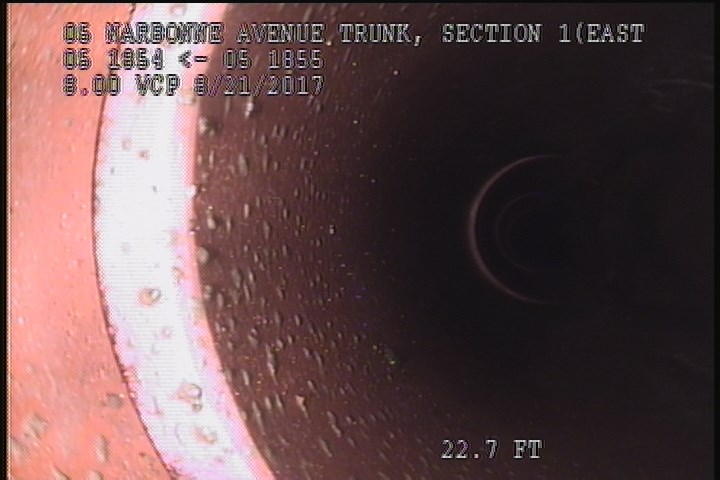

  • Joint Offset Medium

    22.7 ft. - Joint Offset Medium

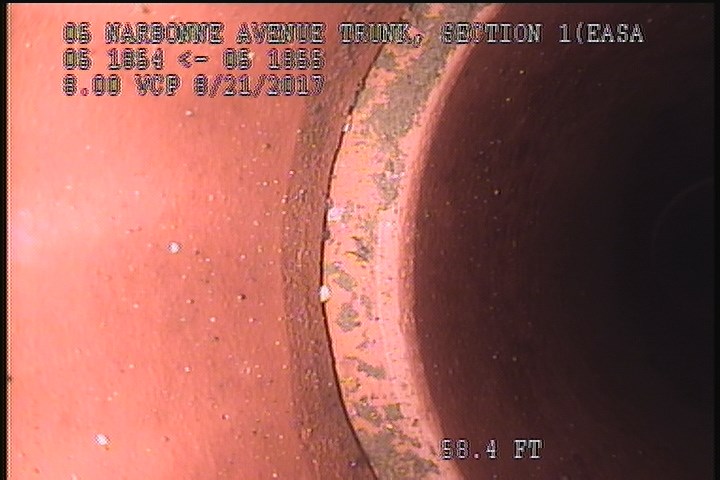

  • Joint Offset Medium

    58.4 ft. - Joint Offset Medium

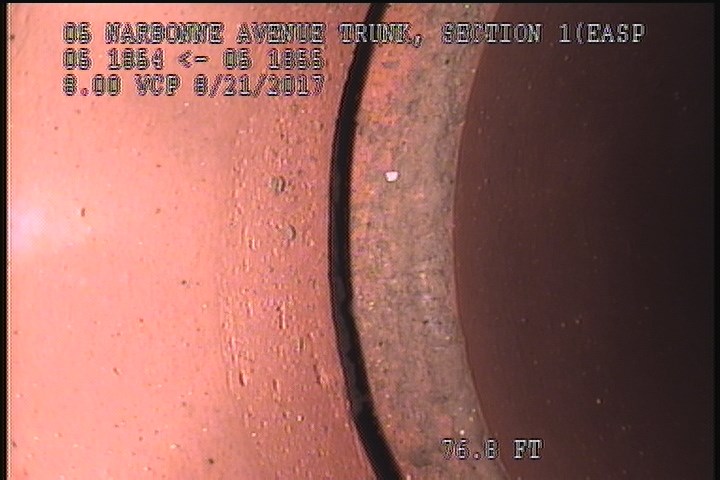

  • Joint Offset Medium

    76.8 ft. - Joint Offset Medium

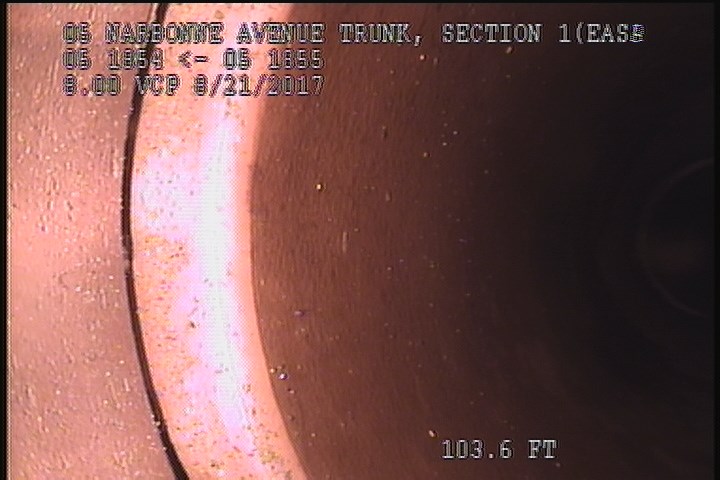

  • Joint Offset Medium

    103.6 ft. - Joint Offset Medium

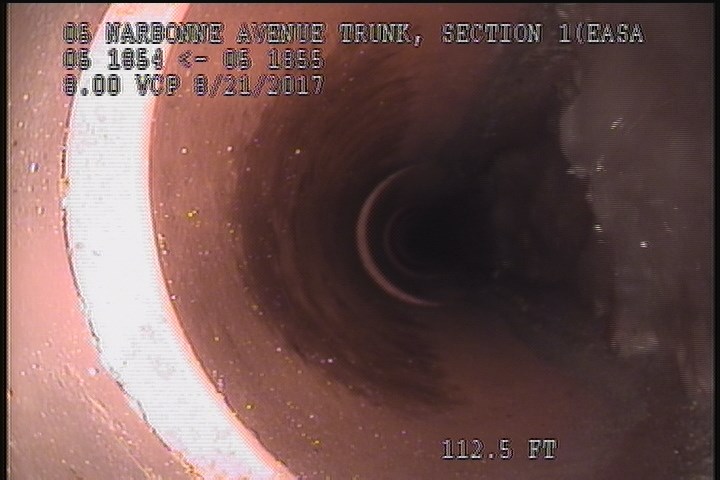

  • Joint Offset Medium

    112.5 ft. - Joint Offset Medium

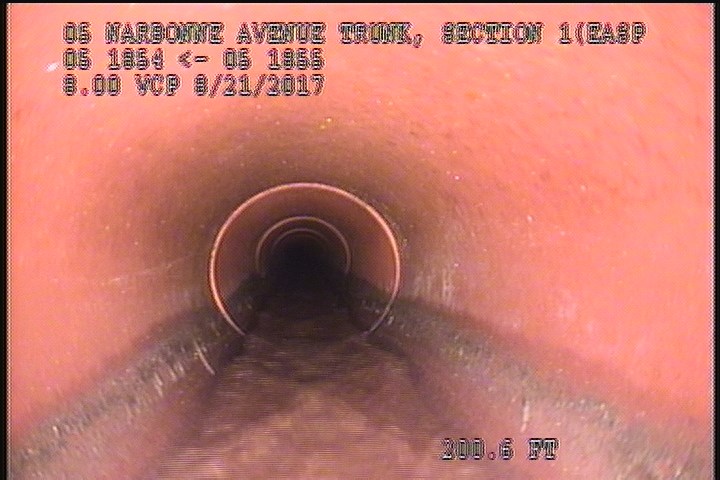

  • General Observation - 8" VCP

    200.6 ft. - General Observation - 8" VCP

All inspections of P07080Work order 0652016

Observations (22)

DistanceCodeObservation
349.1AMH3:40AM
136.1TFOpen
11.2JOM—
348.5MGOMEDIUM OFFSETS THROUGHOUT REACH
11.6FCHAIRLINE
200.6MGO8" VCP
36.6TFOpen
235.9TFOpen
271.8TFOpen
103.6JOM—
0AMH2:55AM
76.8JOM—
84.9TFOpen
187.5TFCCapped
112.5JOM—
0MWL—
13.1TFOpen
13.6JOM—
58.4JOM—
8JOM—
22.7JOM—
0MWM—

Properties (4)

custom_field_three
MEDIUM OFFSETS THROUGHOUT REACH
custom_field_two
4
customer
LACSD
datetime
2017-08-21T02:33:35-07:00
