Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 19, 2017, 07:20 AM

  • 05 1861_05 1860_8192017_015755.mp4

Date
08/19/2017
W/O
0652016
Weather
Dry
Operator/Surveyor
REVELES
Sewer ID
Z00490
PipeID
P07086
Time
12:20 AM
Certificate
U-115-06022630
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6807
Sewer Name
05 NARBONNE AVENUE TRUNK, SECTION 1(EAST)
City
LOMITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
35
Purpose
Capital Improvement Program Assesment
Project
20170818VMR_NARBONNE _AVE_TRUNK_SECTION_1_EAST
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 1861
Downstream MH
05 1860
Dir. of Survey
Downstream
Length Surveyed
341.3 ft.
Total Length
341.3 ft.
Structural Index
2
Structural Quick
3324
Structural Rating
20
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
20
Pipe schematic from manhole 05 1861 to 05 1860
MH: 05 1861MH: 05 1860downstream0 ft. AMH - Upstream Manhole, Survey Begins - 12:59 AM0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. MWL - Water Level, 10 %of cross sectional area1.9 ft. CC - Crack Circumferential, from 08 to 09 o'clock, within 8 inches of joint: NO1.9 ft. CC - Crack Circumferential, from 04 to 03 o'clock, within 8 inches of joint: NO12.3 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"25.5 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES30.8 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES48.3 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4"51.6 ft. CM - Crack Multiple, from 11 to 01 o'clock, within 8 inches of joint: YES92.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES118 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"135.5 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES137.2 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES207.7 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"222.2 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"247.9 ft. CC - Crack Circumferential, from 09 to 03 o'clock, within 8 inches of joint: YES249.4 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4"266.7 ft. TFC - Tap Factory Made Capped, at 03 o'clock, -, within 8 inches of joint: YES, 4"274.1 ft. MGO - General Observation - CD full started a new one (H0615)284.3 ft. TBA - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"284.7 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES320.5 ft. TFA - Tap Factory Made Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"341.3 ft. AMH - Downstream Manhole, Survey Ends - 02:51 AM

Observation photos (3)

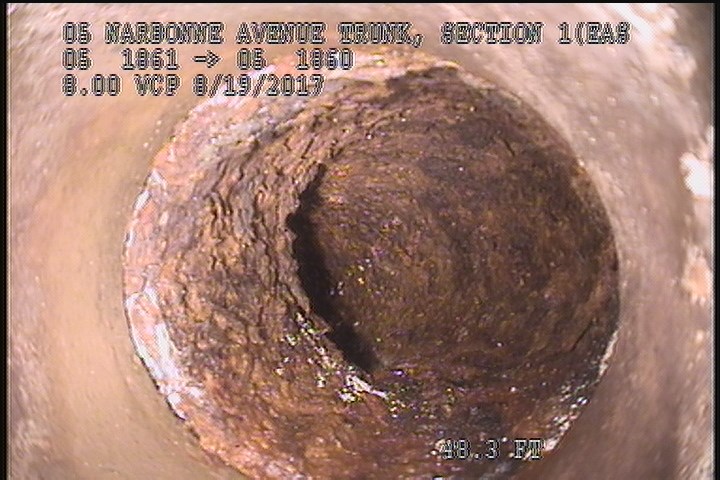

  • Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4"

    48.3 ft. - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: YES, 4"

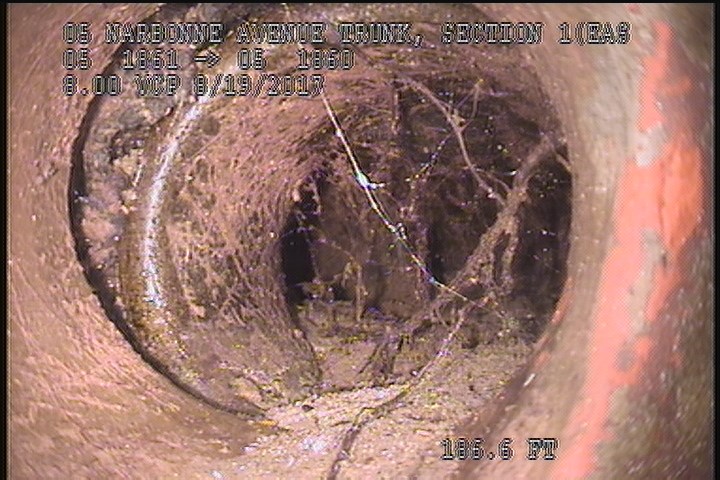

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

    137.2 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

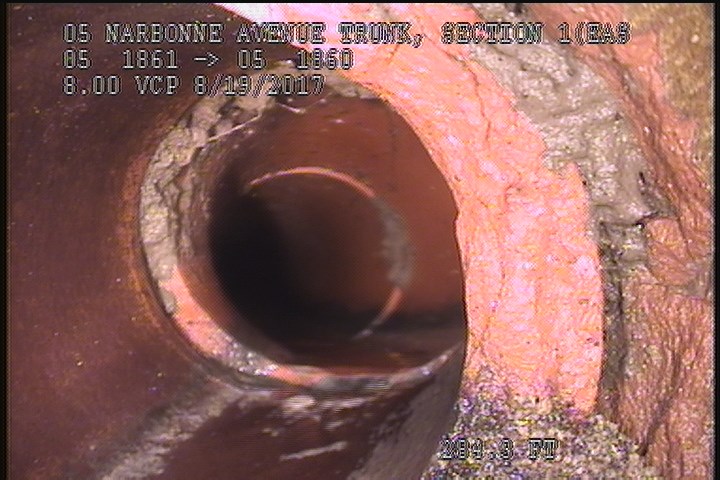

  • Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"

    284.3 ft. - Tap Break-In Active, at 03 o'clock, -, within 8 inches of joint: YES, 4"

All inspections of P07086Work order 0652016

Observations (24)

DistanceCodeObservation
284.3TBA—
137.2CM—
207.7TFA—
48.3TF—
0AMH12:59 AM
222.2TFC—
0MWM—
247.9CC—
249.4TF—
51.6CM—
266.7TFC—
135.5CL—
30.8CL—
1.9CC—
274.1MGOCD full started a new one (H0615)
0MWL—
320.5TFA—
92.5CL—
12.3TFA—
118TFA—
25.5CM—
284.7CL—
1.9CC—
341.3AMH02:51 AM

Properties (3)

custom_field_two
4
customer
LACSD
datetime
2017-08-19T00:20:00-07:00
