Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 18, 2017, 11:00 AM

  • Section#1_05 1884_05 1865__8182017__G6807.mp4

Date
08/18/2017
W/O
0652016
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00490
PipeID
P07110
Time
4:00 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6807
Sewer Name
05 NARBONNE AVENUE TRUNK, SECTION 1(EAST)
City
LOMITA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
35
Purpose
Routine Assessment
Project
20170818MDM_NARB0NNE_AVENUE_TRUNK_SECTION_1_EAST
Material
Vitrified Clay Pipe
Shape
Circular
Height
8 in.
Upstream MH
05 1865
Downstream MH
05 1884
Dir. of Survey
Upstream
Length Surveyed
34.8 ft.
Total Length
34.8 ft.
Structural Index
2
Structural Quick
4124
Structural Rating
12
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
2
Overall Quick
—
Overall Rating
12
Pipe schematic from manhole 05 1865 to 05 1884
MH: 05 1865MH: 05 1884upstream0 ft. AMH - Downstream Manhole, Survey Ends - 4:15AM0.3 ft. MGO - General Observation - MH CONN 3:00 OPEN OUTGOING LINE7.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT18.5 ft. MGO - General Observation - 8" VCP22.5 ft. FC - Fracture Circumferential, from 10 to 12 o'clock, within 8 inches of joint: YES - SLIGHT22.5 ft. FC - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES - SLIGHT27.3 ft. FC - Fracture Circumferential, from 07 to 09 o'clock, within 8 inches of joint: YES - SLIGHT34.8 ft. AMH - Downstream Manhole, Survey Begins - 4:05AM34.8 ft. MWM - Water Mark, 20 %of cross sectional area34.8 ft. MWL - Water Level, 0 %of cross sectional area - NO FLOW34.8 ft. FC - Fracture Circumferential, from 03 to 05 o'clock, within 8 inches of joint: YES - SLIGHT

Observation photos (2)

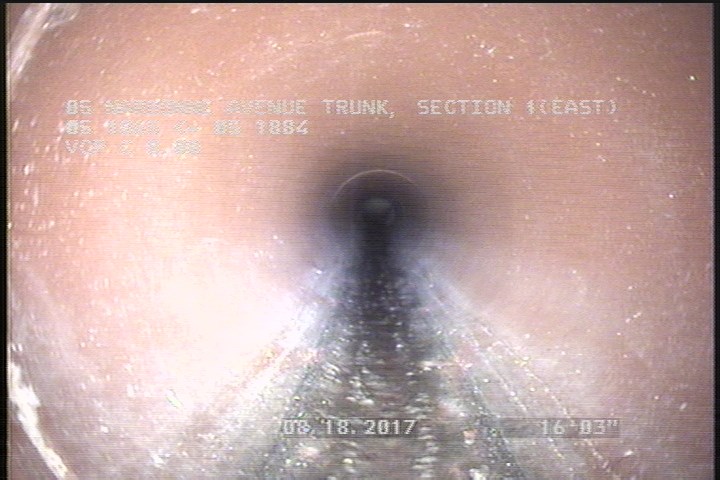

  • General Observation - 8" VCP

    16.3 ft. - General Observation - 8" VCP

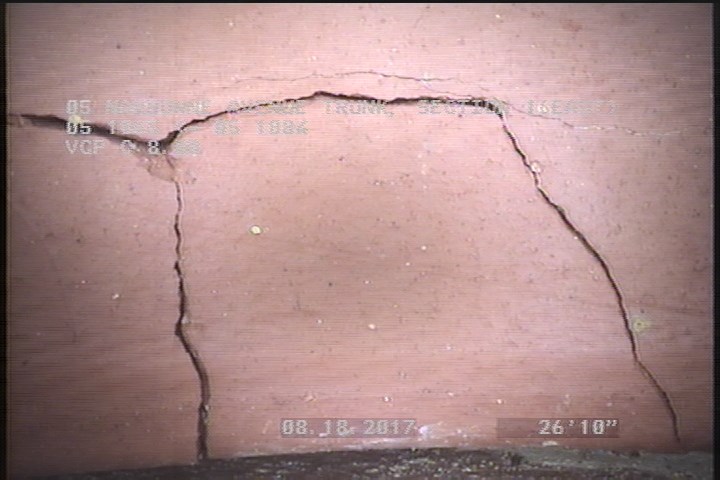

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

    26.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES - SLIGHT

All inspections of P07110Work order 0652016

Observations (11)

DistanceCodeObservation
16.3MGO8" VCP
34.8AMH4:15AM
12.3FCSLIGHT
34.5MGOMH CONN 3:00 OPEN OUTGOING LINE
26.9FMSLIGHT
7.5FCSLIGHT
0AMH4:05AM
0MWM—
12.3FCSLIGHT
0MWLNO FLOW
0FCSLIGHT

Properties (4)

custom_field_three
SLIGHT FRACTURES
custom_field_two
3
customer
LACSD
datetime
2017-08-18T04:00:56-07:00
