Wastewater/Activity/PacpInspection/1.0Jun 7, 2017, 06:48 AM
21 1208_21 1207_07062017_005242.mp4
- Date
- 06/06/2017
- W/O
- 641200
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00775
- PipeID
- P20947
- Time
- 11:48 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4541
- Sewer Name
- 21 LA VERNE-"B" STREET TRUNK
- City
- LA VERNE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 21
- Page No.
- 05
- Purpose
- Routine Assessment
- Project
- WO_641200_TV21051_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 21 1208
- Downstream MH
- 21 1207
- Dir. of Survey
- Downstream
- Length Surveyed
- 3.3 ft.
- Total Length
- 3.3 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

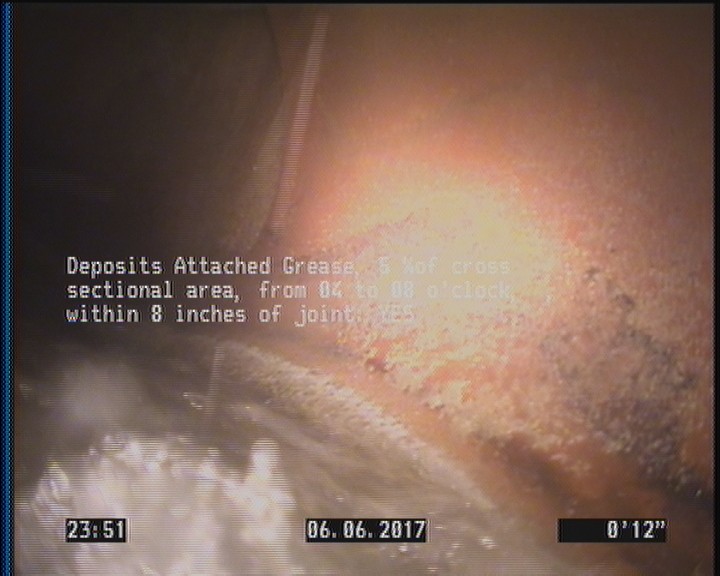

1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES
Observations (5)
| Distance | Code | Observation |
|---|---|---|
| 3.3 | AMH | 21 1207 |
| 0 | AMH | 21 1208 |
| 1 | DAGS | — |
| 0 | MWM | — |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC345356
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-06T23:48:24-07:00
- year_laid
- 33540
