Wastewater/Activity/PacpInspection/1.0Jun 21, 2017, 07:36 AM
14 0294_14 0293A_21062017_003710.mp4
- Date
- 06/21/2017
- W/O
- 641141
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00583
- PipeID
- P18357
- Time
- 12:36 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4588
- Sewer Name
- 14 TRUNK "F"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_641141_TV14041_JUN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 14 0294
- Downstream MH
- 14 0293A
- Dir. of Survey
- Downstream
- Length Surveyed
- 151.7 ft.
- Total Length
- 151.7 ft.
- Structural Index
- 3
- Structural Quick
- 3E2E
- Structural Rating
- 150
- O&M Index
- 2
- O&M Quick
- 2E00
- O&M Rating
- 60
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 210
Observation photos (3)

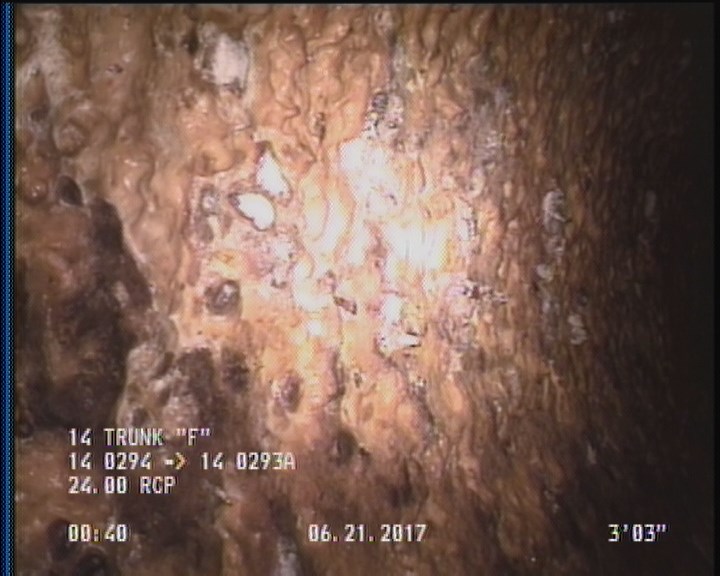

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

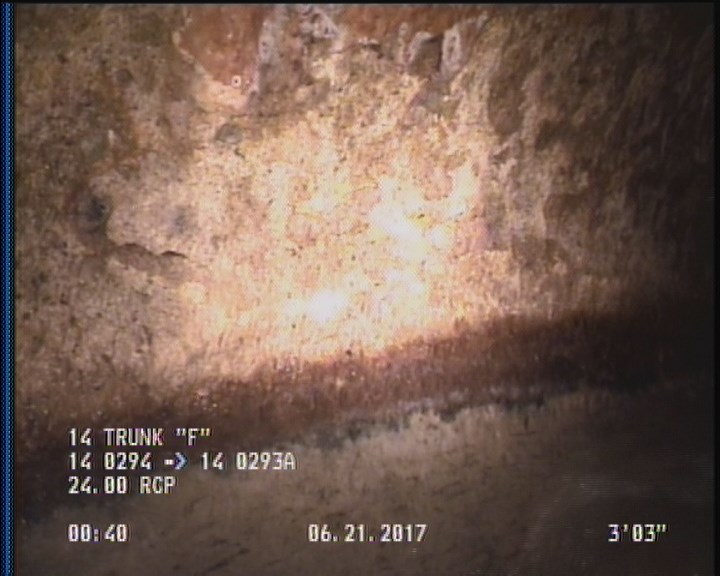

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

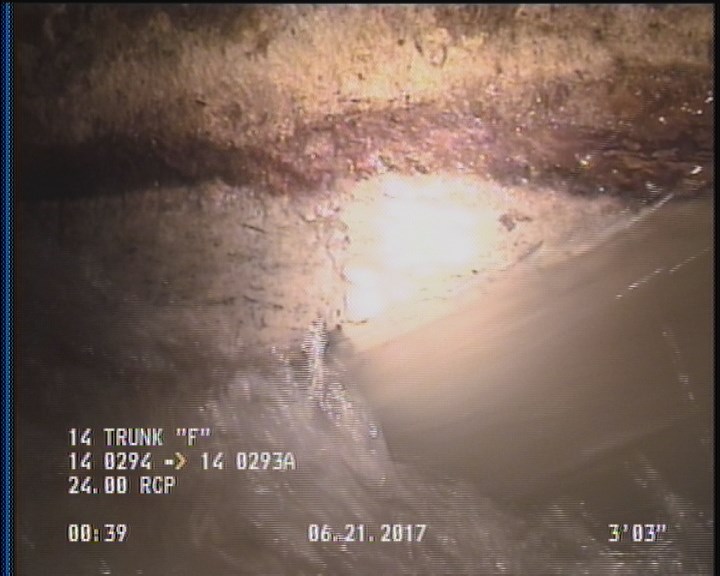

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 2 | SAP | — |
| 151.7 | MGO | COCKROACHES IN MANHOLE |
| 149.9 | SAP | — |
| 151.7 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
| 2 | SSS | — |
| 149.9 | DAGS | — |
| 149.9 | SSS | — |
| 0 | AMH | 14 0294 |
| 2 | DAGS | — |
| 151.7 | AMH | 14 0293A |
Properties (4)
- additional_info
- SC345414
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-06-21T00:36:47-07:00
