Wastewater/Activity/PacpInspection/1.0Jun 20, 2017, 10:15 AM
14 0291_14 1130_20062017_031614.mp4
- Date
- 06/20/2017
- W/O
- 641141
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00583
- PipeID
- P26317
- Time
- 3:15 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4587
- Sewer Name
- 14 TRUNK "F"
- City
- LANCASTER
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 09
- Purpose
- Routine Assessment
- Project
- WO_641141_TV14041_JUN2017
- Sewer Type
- Gravity
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 14 0291
- Downstream MH
- 14 1130
- Dir. of Survey
- Downstream
- Length Surveyed
- 303.2 ft.
- Total Length
- 303.2 ft.
- Structural Index
- 3
- Structural Quick
- 3K2K
- Structural Rating
- 300
- O&M Index
- 2
- O&M Quick
- 412K
- O&M Rating
- 124
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 424
Observation photos (3)

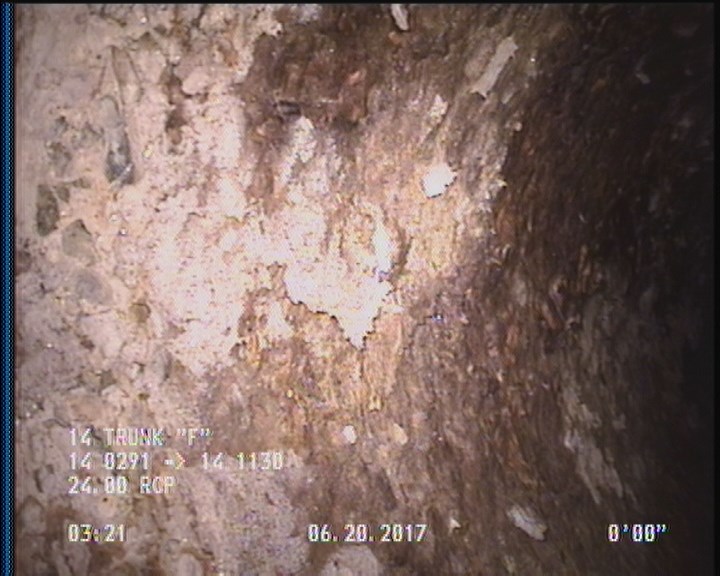

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

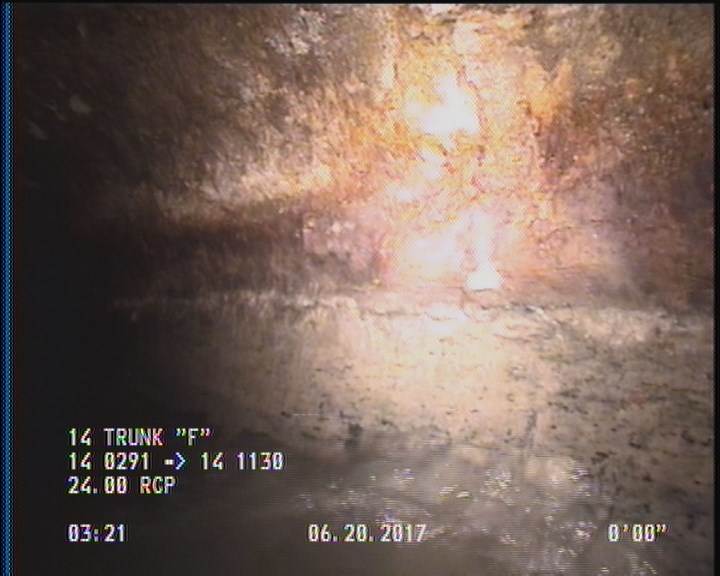

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

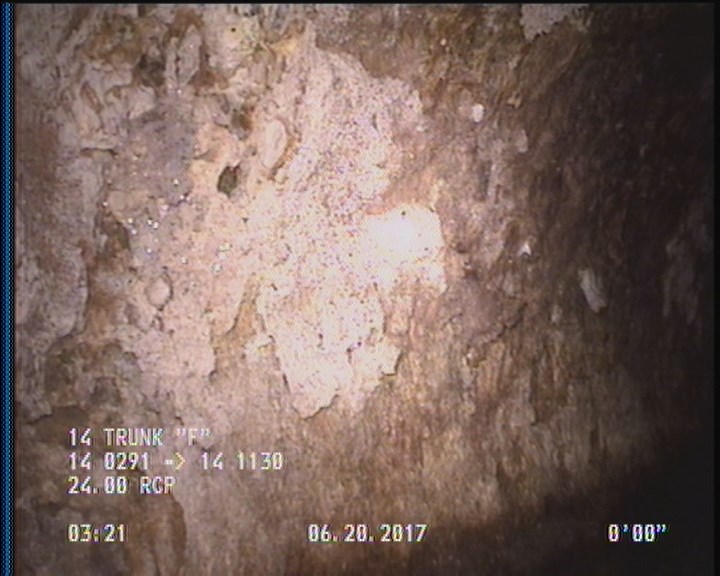

2 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 0 | AMH | 14 0291 |
| 2 | SSS | — |
| 301.1 | DAGS | — |
| 2 | DAGS | — |
| 0 | MWL | — |
| 303.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 2 | SAV | — |
| 301.1 | SAV | — |
| 303.2 | AMH | 14 1130 |
| 301.1 | SSS | — |
Properties (4)
- additional_info
- SC345413
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-06-20T03:15:56-07:00
