Wastewater/Activity/PacpInspection/1.0Jun 20, 2017, 08:24 AM
05 1277_05 1276 _20062017_025518.mp4
- Date
- 06/20/2017
- W/O
- 640992
- Weather
- Dry
- Operator/Surveyor
- M.MARTINEZ
- Sewer ID
- Z00518
- PipeID
- P06490
- Time
- 1:24 AM
- Certificate
- U-115-06022794
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3974-SC342132
- Sewer Name
- 05 SO HAWTHORNE-WARFIELD AV EXT TR, SECT 4
- City
- REDONDO BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 05
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_640992_TV05332_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 05 1277
- Downstream MH
- 05 1276
- Dir. of Survey
- Downstream
- Length Surveyed
- 337.2 ft.
- Total Length
- 337.2 ft.
- Structural Index
- 3
- Structural Quick
- 3K00
- Structural Rating
- 177
- O&M Index
- 2
- O&M Quick
- 4131
- O&M Rating
- 139
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 316
Observation photos (2)

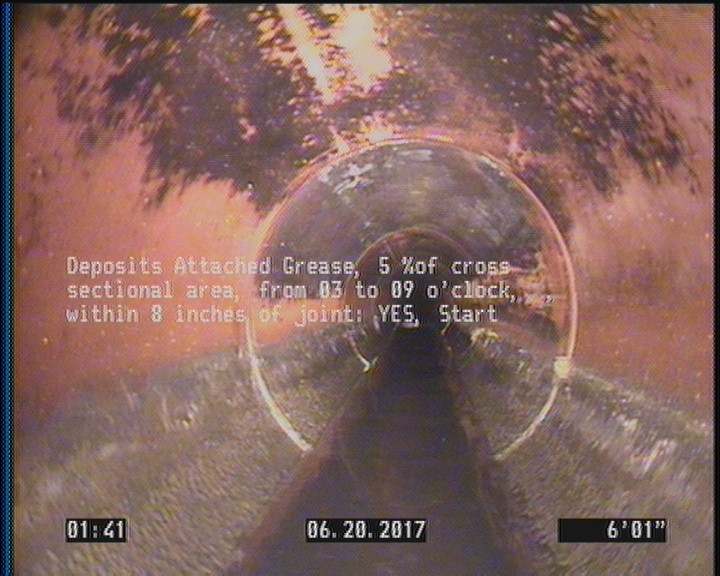

6.1 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

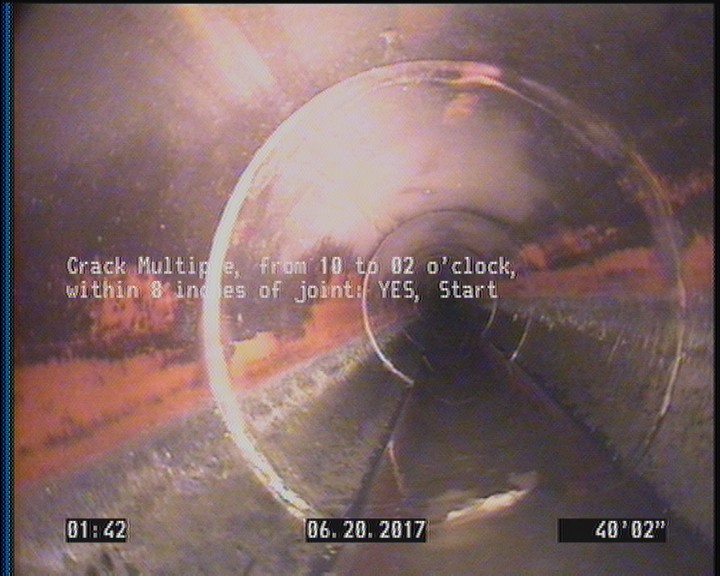

40.2 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | AMH | 05 1277 |
| 336.8 | MGO | CONNECTION AT THE MH 9 O'CLOCK |
| 0 | MWM | — |
| 40.2 | CM | — |
| 334 | CM | — |
| 66.9 | TFC | — |
| 0 | MWL | — |
| 336.8 | MGO | CONNECTION AT THE MH 3 O'CLOCK |
| 100.3 | TBI | — |
| 334 | DAGS | — |
| 337.2 | AMH | 05 1276 |
| 70.7 | TFC | — |
| 6.1 | DAGS | — |
| 264.7 | TFC | — |
| 268.8 | TFC | — |
Properties (3)
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2017-06-20T01:24:14-07:00
