Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 26, 2017, 10:32 AM

  • 01 0549_01 0548_26062017_045433.mp4

Date
06/26/2017
W/O
640684
Weather
Dry
Operator/Surveyor
M.MARTINEZ
Sewer ID
Z00206
PipeID
P01038
Time
3:32 AM
Certificate
U-115-06022794
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3975-SC342136
Sewer Name
01 CROCKETT BOULEVARD-GLEN AVENUE TRUNK
City
LOS ANGELES
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 01
Page No.
07
Purpose
Routine Assessment
Project
WO_640684_TV01243_JUN2017
Sewer Type
Gravity
Material
NRCP
Shape
Circular
Height
10 in.
Width
10 in.
Upstream MH
01 0549
Downstream MH
01 0548
Dir. of Survey
Downstream
Length Surveyed
312.5 ft.
Total Length
312.5 ft.
Structural Index
4
Structural Quick
4K00
Structural Rating
244
O&M Index
2
O&M Quick
412K
O&M Rating
128
Overall Index
3
Overall Quick
—
Overall Rating
372
Pipe schematic from manhole 01 0549 to 01 0548
MH: 01 0549MH: 01 0548downstream0 ft. MWM - Water Mark, 50 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 01 05490 ft. MWL - Water Level, 10 %of cross sectional area2.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start3.9 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start10.8 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"31.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"57.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"92.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"98 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"115.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"154 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"156.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"204.1 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 6"236.1 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 6"262.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"303.4 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 6"306.6 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 6"310.3 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Finish310.3 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish312.4 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK312.5 ft. AMH - Downstream Manhole, Survey Ends - 01 0548

Observation photos (2)

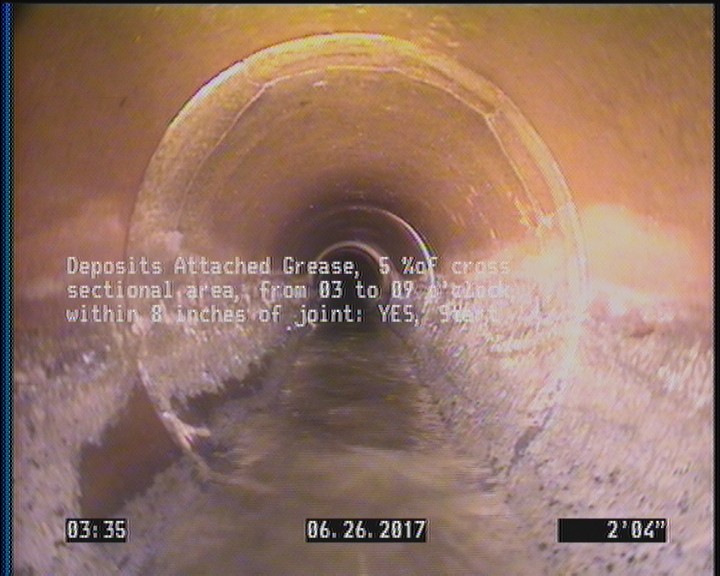

  • Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

    2.3 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

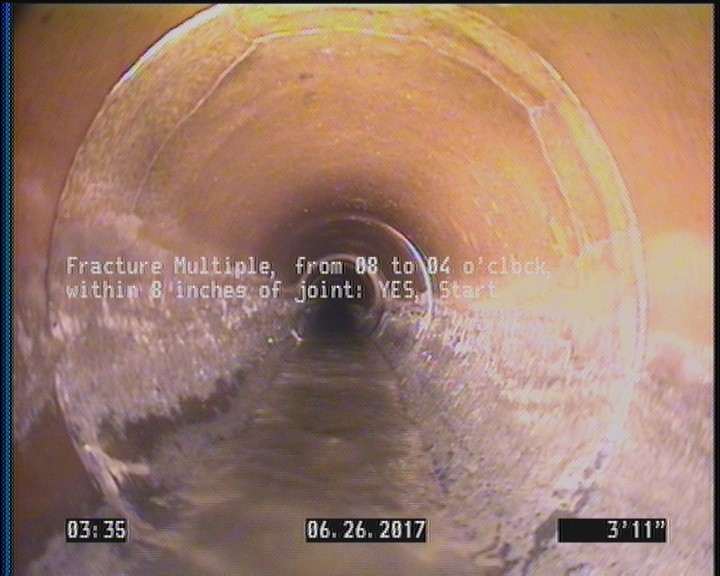

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    3.9 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P01038Work order 640684

Observations (22)

DistanceCodeObservation
312.4MGOCONNECTION AT THE MH 3 O'CLOCK
310.3DAGS—
0MWM—
10.8TF—
156.8TF—
154TF—
115.7TF—
92.7TFC—
204.1TF—
2.3DAGS—
306.6TFC—
57.4TF—
0AMH01 0549
0MWL—
98TFC—
31.1TF—
3.9FM—
262.2TFC—
310.3FM—
236.1TF—
303.4TFC—
312.5AMH01 0548

Properties (3)

custom_field_two
3
customer
LACSD
datetime
2017-06-26T03:32:14-07:00
