Wastewater/Activity/PacpInspection/1.0Jul 14, 2017, 09:18 AM
18 1113_18 1112 _14072017_022538.mp4
- Date
- 07/14/2017
- W/O
- 640649
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00711
- PipeID
- P14963
- Time
- 2:18 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4650
- Sewer Name
- 18 STAGE ROAD JUNCTION TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_640649_TV18058_JUN2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Width
- 12 in.
- Upstream MH
- 18 1113
- Downstream MH
- 18 1112
- Dir. of Survey
- Downstream
- Length Surveyed
- 150.7 ft.
- Total Length
- 150.7 ft.
- Structural Index
- 2
- Structural Quick
- 3122
- Structural Rating
- 7
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 11
Observation photos (5)

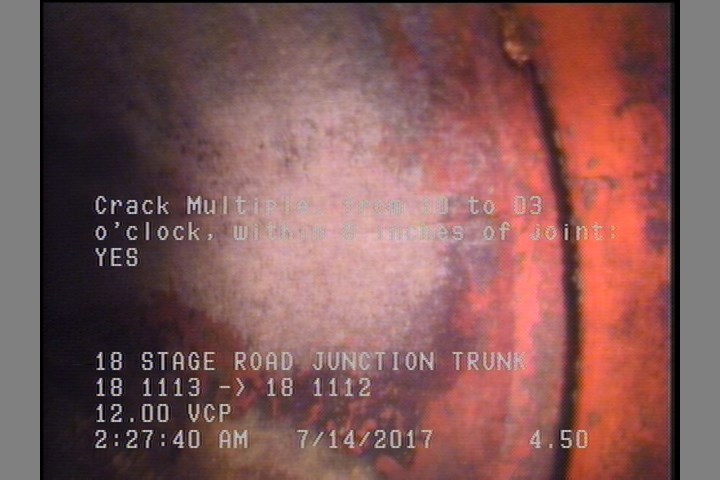

4.5 ft. - Crack Multiple, from 10 to 03 o'clock, within 8 inches of joint: YES

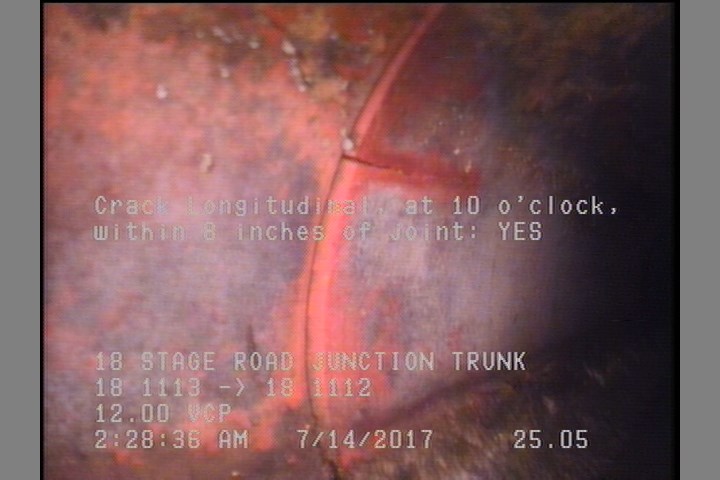

25.1 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

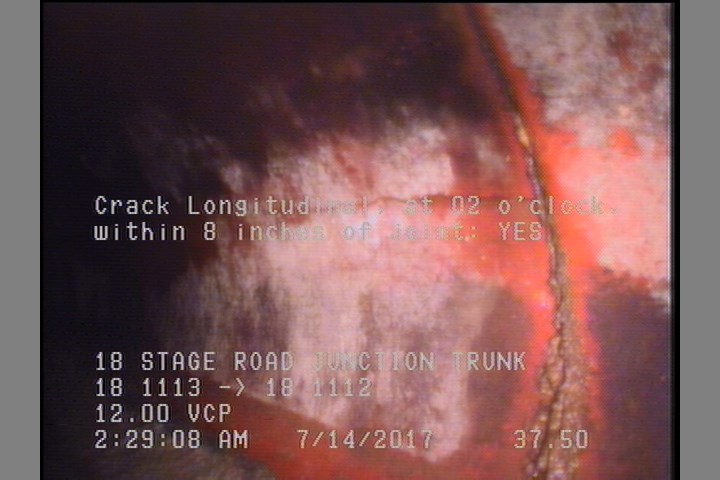

37.5 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

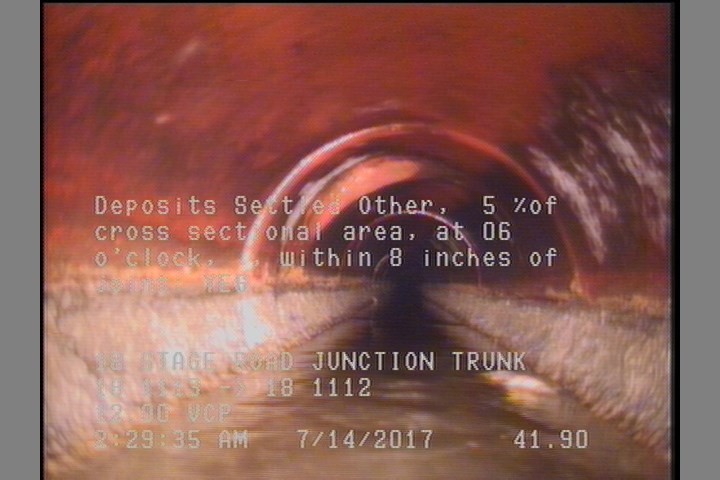

41.9 ft. - Deposits Settled Other, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES

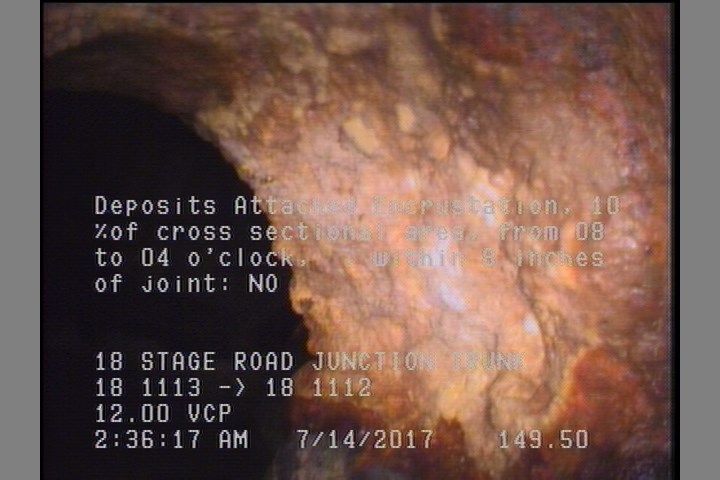

149.5 ft. - Deposits Attached Encrustation, 10 %of cross sectional area, from 08 to 04 o'clock, , within 8 inches of joint: NO
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 149.5 | DAE | — |
| 45.7 | TFC | — |
| 0 | AMH | 18 1113 |
| 37.5 | CL | — |
| 150.7 | AMH | 18 1112 |
| 41.9 | DSZ | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 25.1 | CL | — |
| 4.5 | CM | — |
Properties (4)
- additional_info
- SC345510
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-07-14T02:18:33-07:00
