Wastewater/Activity/PacpInspection/1.0Jul 13, 2017, 11:22 AM

  • 18 1114_18 1113A _13072017_042315.mp4

Date
07/13/2017
W/O
640649
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00711
PipeID
P14965
Time
4:22 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4646
Sewer Name
18 STAGE ROAD JUNCTION TRUNK
City
SANTA FE SPRINGS
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
31
Purpose
Routine Assessment
Project
WO_640649_TV18058_JUN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Width
12 in.
Upstream MH
18 1114
Downstream MH
18 1113A
Dir. of Survey
Downstream
Length Surveyed
124.5 ft.
Total Length
124.5 ft.
Structural Index
3
Structural Quick
3C00
Structural Rating
66
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
66
Pipe schematic from manhole 18 1114 to 18 1113A
MH: 18 1114MH: 18 1113Adownstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 5 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 111413.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES16.3 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SCATTERED46 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"94.9 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"121.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish124.5 ft. MGO - General Observation - CONNECTION AT MH 9 O'CLOCK124.5 ft. AMH - Downstream Manhole, Survey Ends - 18 1113A

Observation photos (2)

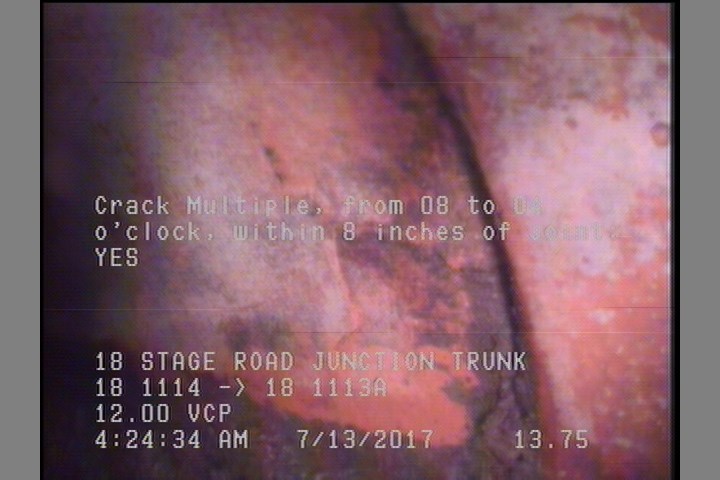

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    13.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

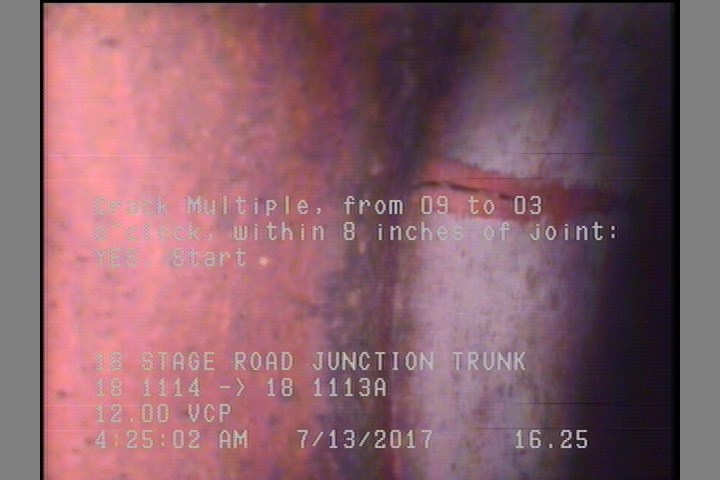

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SCATTERED

    16.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start - SCATTERED

All inspections of P14965Work order 640649

Observations (10)

DistanceCodeObservation
121.4CM—
0MWM—
16.3CMSCATTERED
124.5MGOCONNECTION AT MH 9 O'CLOCK
0MWL—
94.9TFC—
46TFC—
13.8CM—
0AMH18 1114
124.5AMH18 1113A

Properties (4)

additional_info
SC345506
custom_field_two
3
customer
LACSD
datetime
2017-07-13T04:22:51-07:00
