Wastewater/Activity/PacpInspection/1.0May 9, 2016, 11:32 AM
02 1402_02 1401_20160509_044829.mp4
- Date
- 05/09/2016
- W/O
- 568667
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00349
- PipeID
- P02973
- Time
- 4:32 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3368
- Sewer Name
- 02 DISTRICT #2 INTERCEPTOR TRUNK
- City
- BELL GARDENS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- RFIR_WO_568667_TV02220_MAY2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- 02 1402
- Downstream MH
- 02 1401
- Dir. of Survey
- Downstream
- Length Surveyed
- 384.5 ft.
- Total Length
- 384.5 ft.
- Structural Index
- 4
- Structural Quick
- 5132
- Structural Rating
- 11
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 13
Observation photos (4)
2.4 ft. - Surface Reinforcement Visible, from 08 to 04 o'clock, within 8 inches of joint: NO, Start
25.9 ft. - Alignment Left, 15 %
47.2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

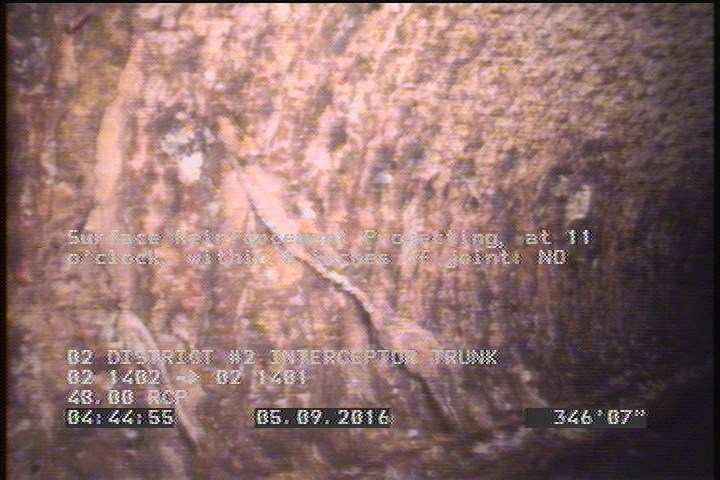

346.6 ft. - Surface Reinforcement Projecting, at 11 o'clock, within 8 inches of joint: NO
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 375.2 | SRV | — |
| 0 | MWM | — |
| 0 | AMH | 02 1402 |
| 47.2 | SAP | — |
| 25.9 | LL | — |
| 346.6 | SRP | — |
| 380 | SAP | — |
| 2.4 | SRV | — |
| 0 | MWL | — |
| 384.5 | AMH | 02 1401 |
Properties (4)
- additional_info
- SC300366
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-05-09T04:32:38-07:00
