Wastewater/Activity/PacpInspection/1.0May 9, 2016, 08:07 AM
02 1406_02 1405_20160509_012100.mp4
- Date
- 05/09/2016
- W/O
- 568667
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00349
- PipeID
- P02977
- Time
- 1:07 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3367
- Sewer Name
- 02 DISTRICT #2 INTERCEPTOR TRUNK
- City
- COMMERCE
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 20
- Purpose
- Routine Assessment
- Project
- RFIR_WO_568667_TV02220_MAY2016
- Sewer Type
- GRAVITY
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 48 in.
- Upstream MH
- 02 1406
- Downstream MH
- 02 1405
- Dir. of Survey
- Downstream
- Length Surveyed
- 332.6 ft.
- Total Length
- 332.6 ft.
- Structural Index
- 4
- Structural Quick
- 5132
- Structural Rating
- 11
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 15
Observation photos (4)

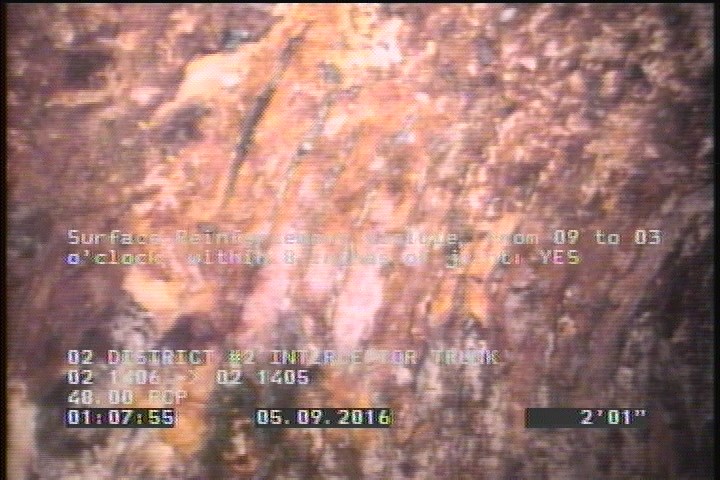

2.1 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

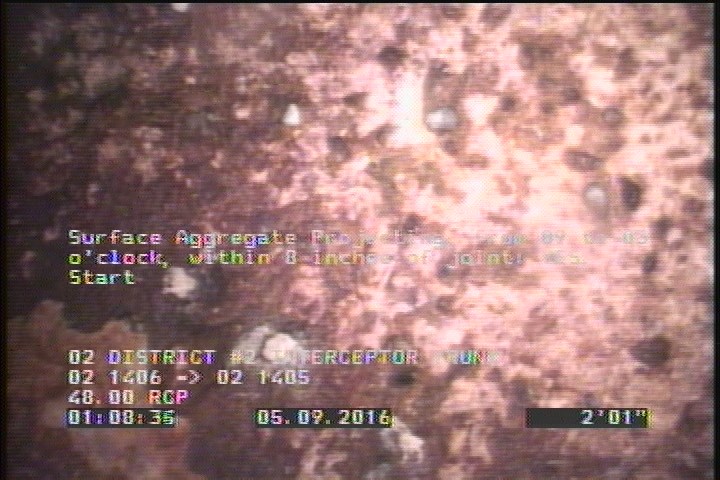

2.1 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

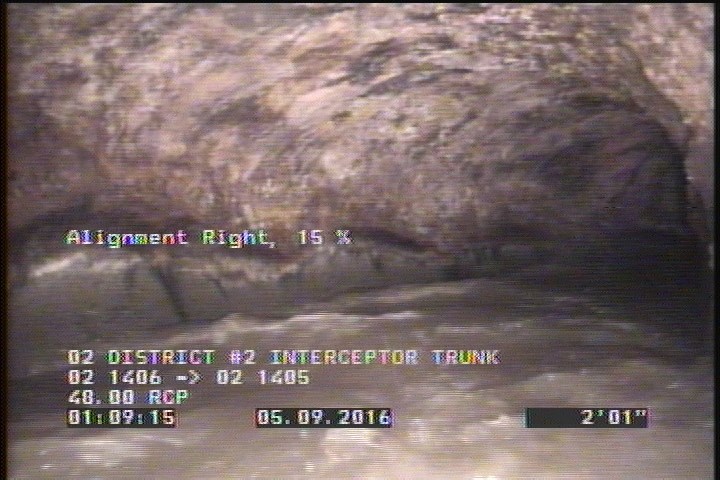

2.1 ft. - Alignment Right, 15 %

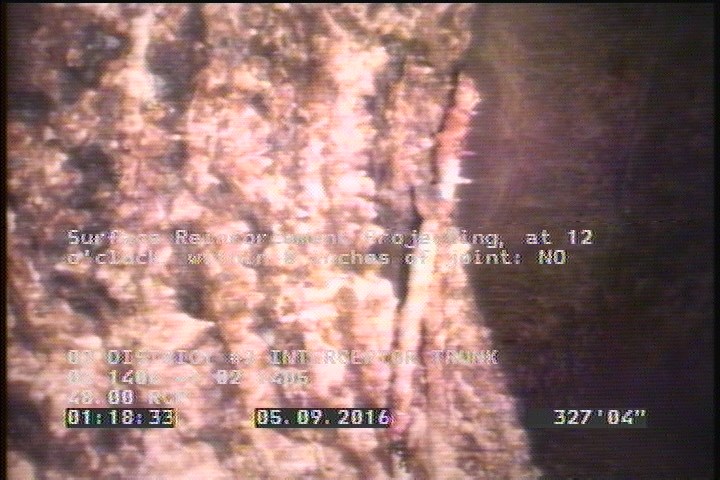

327.3 ft. - Surface Reinforcement Projecting, at 12 o'clock, within 8 inches of joint: NO
Observations (11)
| Distance | Code | Observation |
|---|---|---|
| 296.5 | LL | — |
| 0 | MWM | — |
| 0 | MWL | — |
| 327.3 | SRP | — |
| 327.3 | SRV | — |
| 0 | AMH | 12 1406 |
| 2.1 | SRV | — |
| 332.6 | AMH | 02 1405 |
| 327.3 | SAP | — |
| 2.1 | SAP | — |
| 2.1 | LR | — |
Properties (4)
- additional_info
- SC300364
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-05-09T01:07:21-07:00
