Wastewater/Activity/PacpInspection/1.0May 2, 2017, 05:37 AM
B 0261_B 0260 _01052017_223804.mp4
- Date
- 05/01/2017
- W/O
- 630216
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00079
- PipeID
- P08741
- Time
- 10:37 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4480
- Sewer Name
- B JOINT OUTFALL B - UNIT 1F
- City
- ROSEMEAD
- Loc. details
- Easement/Right of Way
- Location Code
- D
- Use of Sewer
- Sanitary Sewer
- District
- District 15
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_630216_TV15042_APR2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- B 0261
- Downstream MH
- B 0260
- Dir. of Survey
- Downstream
- Length Surveyed
- 241.1 ft.
- Total Length
- 241.1 ft.
- Structural Index
- 2
- Structural Quick
- 2200
- Structural Rating
- 4
- O&M Index
- 3
- O&M Quick
- 3400
- O&M Rating
- 12
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 16
Observation photos (3)

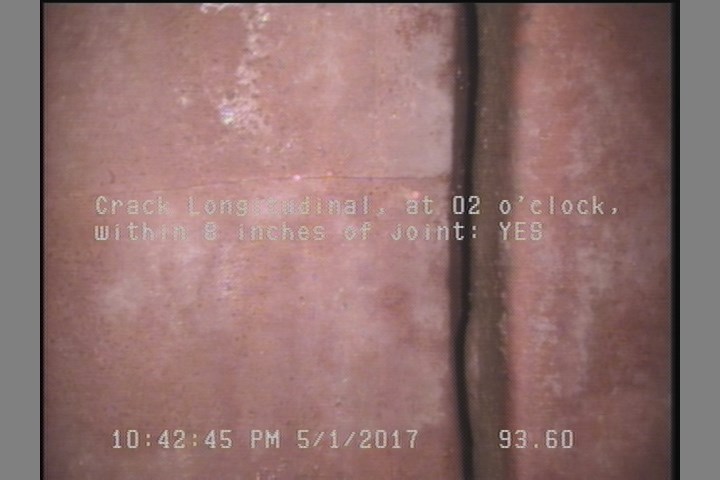

93.6 ft. - Crack Longitudinal, at 02 o'clock, within 8 inches of joint: YES

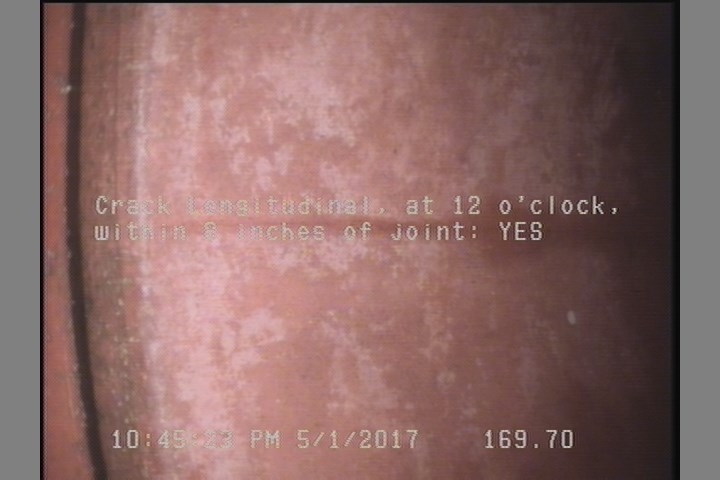

169.7 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

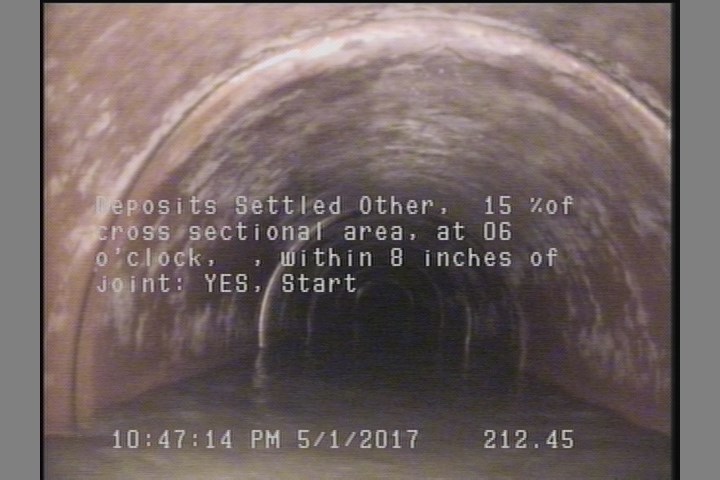

212.5 ft. - Deposits Settled Other, 15 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWM | — |
| 122.4 | TF | — |
| 0 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 115.8 | TFA | — |
| 142.7 | TF | — |
| 172.2 | TF | — |
| 66.8 | TF | — |
| 193.3 | TF | — |
| 0 | AMH | B 0261 |
| 212.5 | DSZ | — |
| 16.7 | TF | — |
| 169.7 | CL | — |
| 241.1 | AMH | B 0260 |
| 37.1 | TF | — |
| 233.9 | DSZ | — |
| 93.6 | CL | — |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC345190
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-01T22:37:29-07:00
