Wastewater/Activity/PacpInspection/1.0May 22, 2017, 11:39 AM
18 0429_18 0428 _20170522_050238.mp4
- Date
- 05/22/2017
- W/O
- 635635
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00675
- PipeID
- P14277
- Time
- 4:39 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4501
- Sewer Name
- 18 FLORENCE AVENUE TRUNK
- City
- SANTA FE SPRINGS
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 18
- Page No.
- 19
- Purpose
- Routine Assessment
- Project
- WO_635635_TV18097_MAY2017
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 27 in.
- Width
- 27 in.
- Upstream MH
- 18 0429
- Downstream MH
- 18 0428
- Dir. of Survey
- Downstream
- Length Surveyed
- 448.8 ft.
- Total Length
- 448.8 ft.
- Structural Index
- 4
- Structural Quick
- 5Q3Q
- Structural Rating
- 712
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 40
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 752
Observation photos (3)

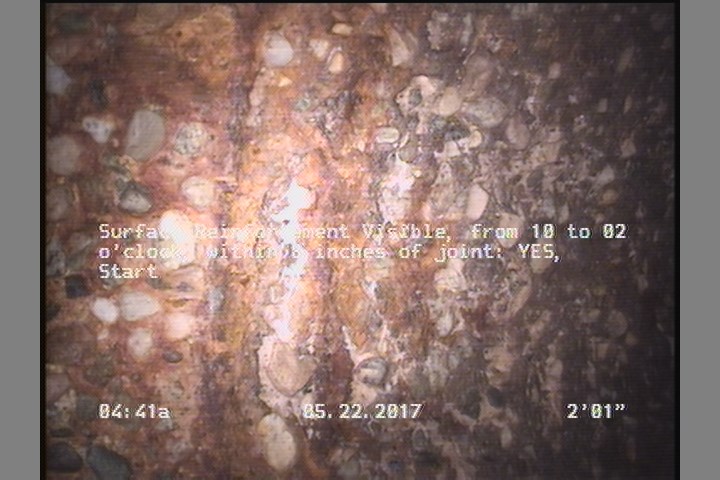

2.1 ft. - Surface Reinforcement Visible, from 10 to 02 o'clock, within 8 inches of joint: YES, Start
2.1 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

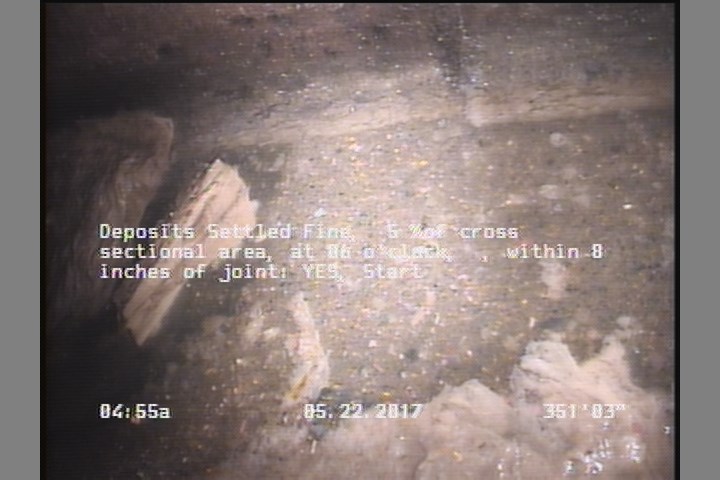

351.2 ft. - Deposits Settled Fine, 5 %of cross sectional area, at 06 o'clock, , within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 2.1 | SRV | — |
| 0 | MWM | — |
| 447.9 | SRV | — |
| 448.8 | SAP | — |
| 298.8 | TFC | — |
| 347.4 | TFC | — |
| 448.8 | DSF | — |
| 0 | MWL | — |
| 448.8 | AMH | 18 0428 |
| 351.2 | DSF | — |
| 2.1 | SAP | — |
| 0 | AMH | 18 0429 |
| 246.3 | TF | — |
| 395.5 | TFC | — |
| 436.1 | TFC | — |
Properties (5)
- additional_info
- SC345311
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-05-22T04:39:52-07:00
- sewer_category
- Gravity
