Wastewater/Activity/PacpInspection/1.0May 11, 2016, 04:36 AM
02 1393_02 1392_20160510_220417.mp4
- Date
- 05/10/2016
- W/O
- 568667
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00349
- PipeID
- P02964
- Time
- 9:36 PM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3370
- Sewer Name
- 02 DISTRICT #2 INTERCEPTOR TRUNK
- City
- BELL GARDENS
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- RFIR_WO_568667_TV02220_MAY2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 54 in.
- Upstream MH
- 02 1393
- Downstream MH
- 02 1392
- Dir. of Survey
- Downstream
- Length Surveyed
- 895.1 ft.
- Total Length
- 895.1 ft.
- Structural Index
- 4
- Structural Quick
- 5b3c
- Structural Rating
- 1409
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 1409
Observation photos (3)

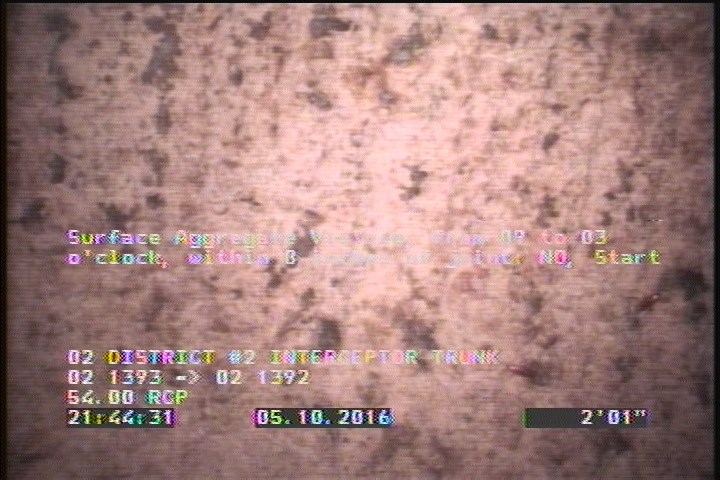

2.1 ft. - Surface Aggregate Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start

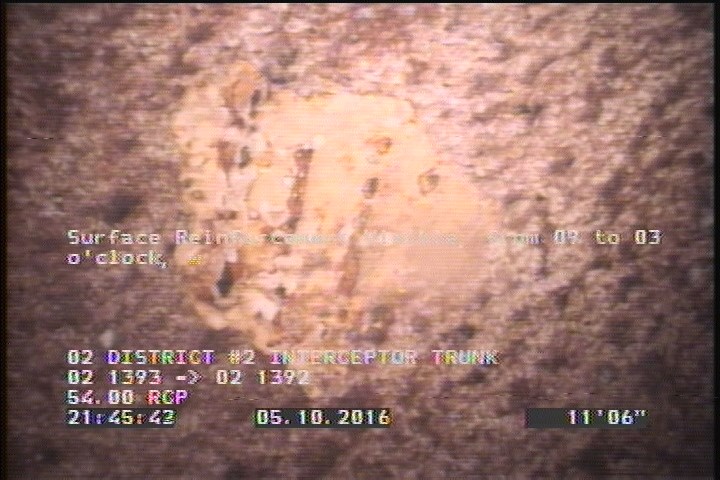

11.5 ft. - Surface Reinforcement Visible, from 09 to 03 o'clock, within 8 inches of joint: NO, Start - SPORADICALLY

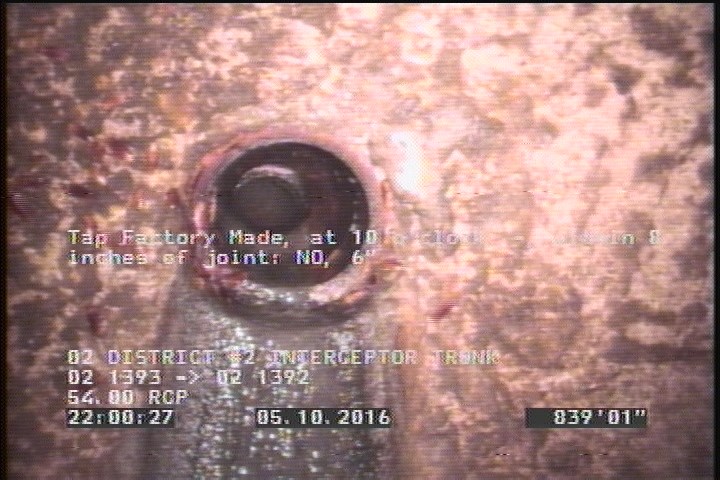

839 ft. - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 11.5 | SRV | SPORADICALLY |
| 895.1 | AMH | 02 1392 |
| 2 | MGO | 50% MAG COAT |
| 0 | MWM | — |
| 0 | AMH | 02 1393 |
| 2.1 | SAV | — |
| 770 | SRV | — |
| 890.2 | SAV | — |
| 0 | MWL | — |
| 839 | TF | — |
Properties (5)
- additional_info
- SC300368
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-05-10T21:36:22-07:00
- sewer_category
- GRAVITY
