Wastewater/Activity/PacpInspection/1.0Jul 17, 2017, 08:10 AM
02 0890_02 0889 _17072017_011214.mp4
- Date
- 07/17/2017
- W/O
- 646918
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00249
- PipeID
- P03459
- Time
- 1:10 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4651
- Sewer Name
- 02 DOWNEY TRUNK
- City
- DOWNEY
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 27
- Purpose
- Routine Assessment
- Project
- WO_646918_TV02306_JUL2017
- Sewer Type
- Gravity
- Material
- NRCP
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0890
- Downstream MH
- 02 0889
- Dir. of Survey
- Downstream
- Length Surveyed
- 320.5 ft.
- Total Length
- 320.6 ft.
- Structural Index
- 3
- Structural Quick
- 3L2H
- Structural Rating
- 275
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 277
Observation photos (3)

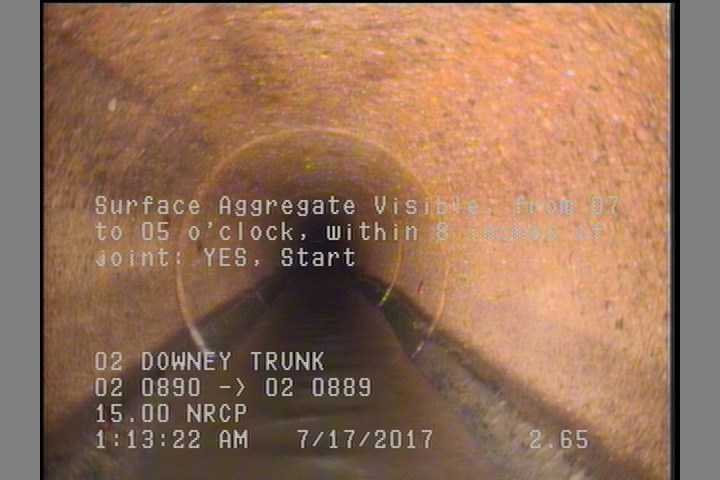

2.7 ft. - Surface Aggregate Visible, from 07 to 05 o'clock, within 8 inches of joint: YES, Start

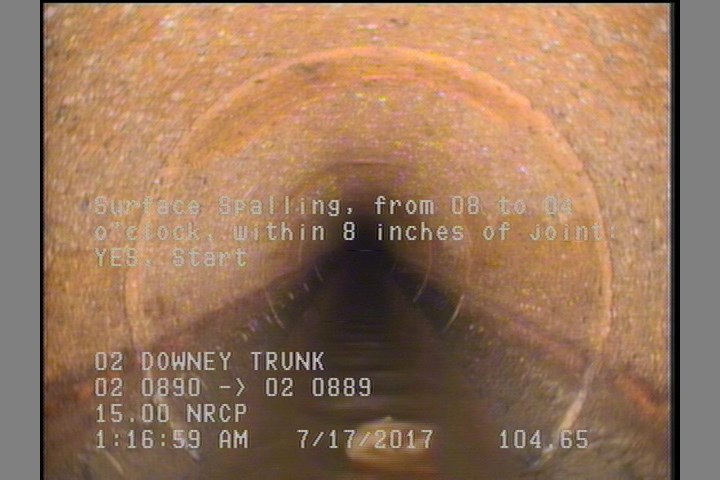

104.7 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

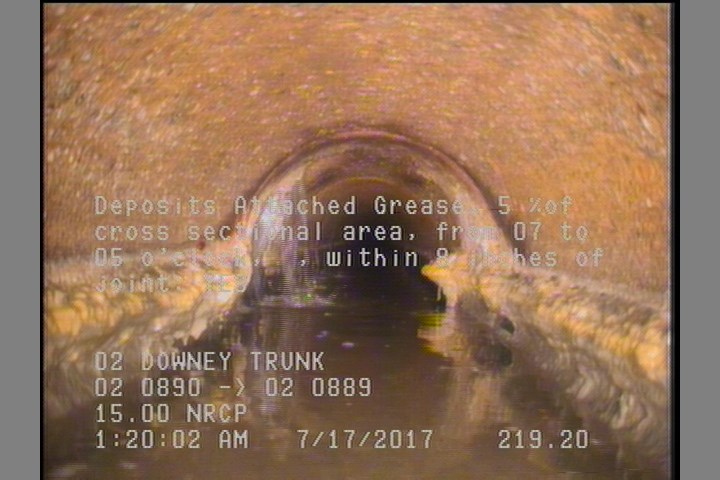

219.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 05 o'clock, , within 8 inches of joint: YES
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 182.7 | TF | — |
| 222.4 | TFA | — |
| 80.9 | TF | — |
| 2.7 | SAV | — |
| 0 | MWL | — |
| 29 | TF | — |
| 219.2 | DAGS | — |
| 0 | MWM | — |
| 320.6 | MGO | CONNECTION AT MH 3 O'CLOCK |
| 318.5 | SSS | — |
| 318.6 | SAV | — |
| 0 | AMH | 02 0890 |
| 320.6 | MGO | CONNECTION AT MH 9 O'CLOCK |
| 320.6 | AMH | 02 0889 |
| 104.7 | SSS | — |
| 119.6 | TF | — |
| 20.6 | TFC | — |
Properties (4)
- additional_info
- SC345511
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2017-07-17T01:10:43-07:00
