Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 10, 2017, 08:58 AM

  • 18 0255_18 0254 _10072017_015905.mp4

Date
07/10/2017
W/O
640666
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00672
PipeID
P14083
Time
1:58 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K4639
Sewer Name
18 BROADWAY TRUNK
City
WHITTIER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 18
Page No.
13
Purpose
Routine Assessment
Project
WO_640666_TV18003_JUN2017
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
18 0255
Downstream MH
18 0254
Dir. of Survey
Downstream
Length Surveyed
260.1 ft.
Total Length
260.1 ft.
Structural Index
3
Structural Quick
3H21
Structural Rating
134
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
134
Pipe schematic from manhole 18 0255 to 18 0254
MH: 18 0255MH: 18 0254downstream0 ft. MGO - General Observation - CONNECTION AT MH 3 ACTIVE0 ft. MWL - Water Level, 10 %of cross sectional area0 ft. MWM - Water Mark, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 18 02550 ft. MGO - General Observation - CONNECTION AT MH 9 ACTIVE29.3 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES33.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES38.2 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start79.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"155.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"231.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"255.3 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish260 ft. MGO - General Observation - CONNECTION AT MH 9 ACTIVE260.1 ft. AMH - Downstream Manhole, Survey Ends - 18 0254260.1 ft. MGO - General Observation - CONNECTION AT MH 3 ACTIVE

Observation photos (3)

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

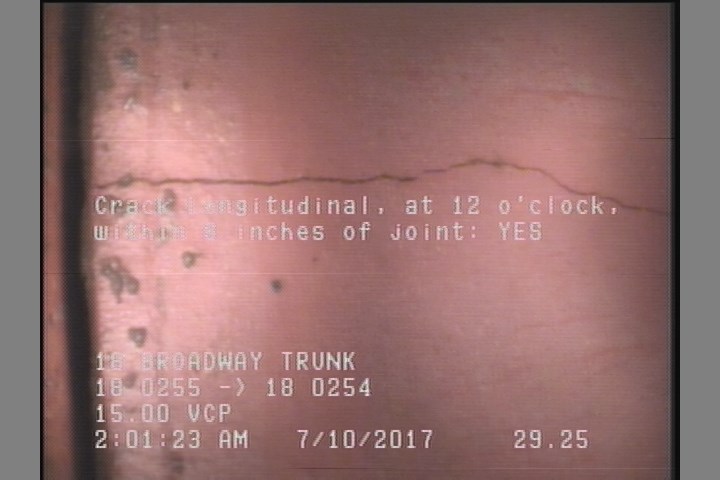

    29.3 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

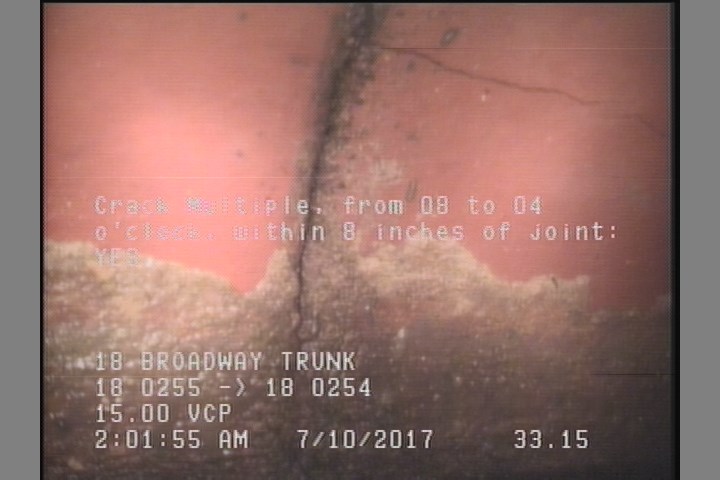

    33.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

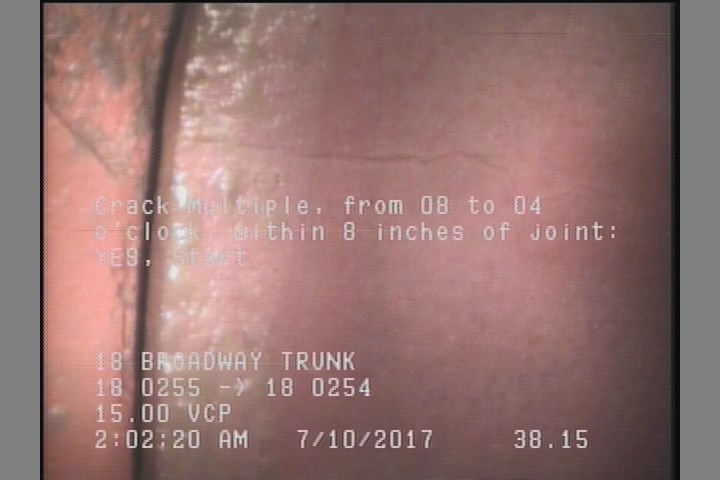

    38.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P14083Work order 640666

Observations (15)

DistanceCodeObservation
260.1AMH18 0254
255.3CM—
29.3CL—
260MGOCONNECTION AT MH 9 ACTIVE
0MGOCONNECTION AT MH 3 ACTIVE
231.9TFC—
0MWL—
0MWM—
33.2CM—
0AMH18 0255
79.6TFC—
260.1MGOCONNECTION AT MH 3 ACTIVE
38.2CM—
0MGOCONNECTION AT MH 9 ACTIVE
155.5TFC—

Properties (4)

additional_info
SC345385
custom_field_two
3
customer
LACSD
datetime
2017-07-10T01:58:19-07:00
