Wastewater/Activity/PacpInspection/1.0May 26, 2016, 09:41 AM
02 2003_02 2002_26052016_024626.mp4
- Date
- 05/26/2016
- W/O
- 574758
- Weather
- Dry
- Operator/Surveyor
- N.ZAHREDDINE
- Sewer ID
- Z00260
- PipeID
- P04358
- Time
- 2:41 AM
- Certificate
- U-109-7948
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3407
- Sewer Name
- 02 EAST COMPTON BOULEVARD RELIEF TRUNK #2
- City
- BELLFLOWER
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 36
- Purpose
- Routine Assessment
- Project
- WO_574758_TV02288_JUNE2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 18 in.
- Upstream MH
- 02 2003
- Downstream MH
- 02 2002
- Dir. of Survey
- Downstream
- Length Surveyed
- 55.6 ft.
- Total Length
- 55.6 ft.
- Structural Index
- 4
- Structural Quick
- 4700
- Structural Rating
- 28
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 4
- Overall Quick
- —
- Overall Rating
- 30
Observation photos (4)

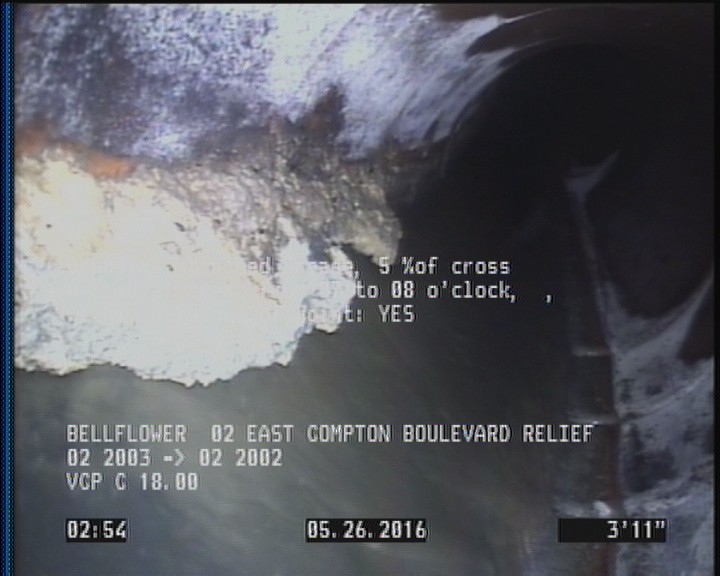

3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 07 to 08 o'clock, , within 8 inches of joint: YES

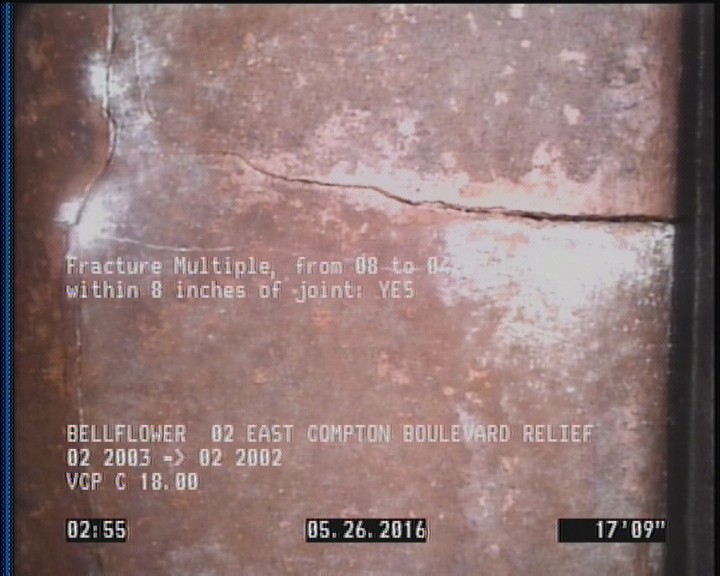

17.7 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

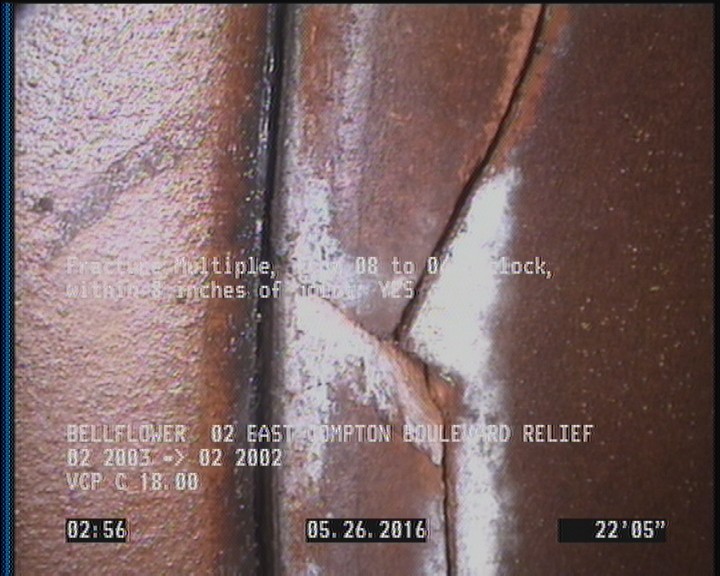

22.4 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

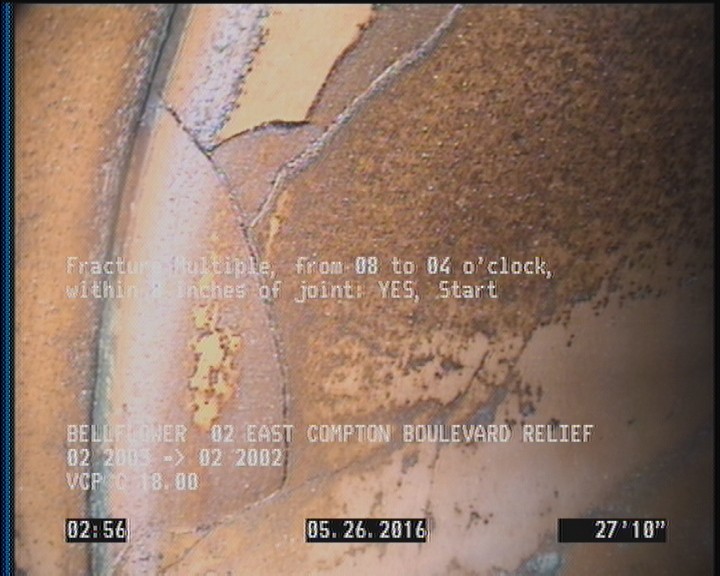

27.8 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 17.7 | FM | — |
| 3.9 | DAGS | — |
| 51.6 | FM | — |
| 0 | AMH | 02 2003 |
| 55.6 | AMH | 02 2002 |
| 0 | MWM | — |
| 22.4 | FM | — |
| 27.8 | FM | — |
| 0 | MWL | — |
Properties (6)
- additional_info
- SC300667
- custom_field_two
- 2
- customer
- LACSD
- datetime
- 2016-05-26T02:41:23-07:00
- sewer_category
- GRAVITY
- year_laid
- 19750612
