Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 2, 2016, 08:29 AM
Date
06/02/2016
W/O
574365
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z01125
PipeID
P13446
Time
1:29 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3388
Sewer Name
B JOINT OUTFALL B - UNIT 6H
City
ALHAMBRA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 16
Page No.
20
Purpose
Routine Assessment
Project
WO_574365_TV16044_JUNE2016
Material
BRICK
Shape
Circular
Height
27 in.
Width
27 in.
Upstream MH
B 1144
Downstream MH
B 1143
Dir. of Survey
Downstream
Length Surveyed
636.6 ft.
Total Length
636.6 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
2
Overall Quick
—
Overall Rating
2
Pipe schematic from manhole B 1144 to B 1143
MH: B 1144MH: B 1143downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - B 11440 ft. MWL - Water Level, 15 %of cross sectional area80 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 6"89.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"128.7 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"133 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 6"168.4 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: NO, 6"182.5 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"238.5 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"280 ft. TS - Tap Saddle, at 11 o'clock, -, within 8 inches of joint: NO, 6"281.9 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"330.6 ft. TFI - Tap Factory Made Intruding, at 11 o'clock, -, -, within 8 inches of joint: NO, 6", 2"335.1 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"335.1 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"383.2 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"383.2 ft. TF - Tap Factory Made, at 01 o'clock, -, within 8 inches of joint: NO, 6"436 ft. TFC - Tap Factory Made Capped, at 11 o'clock, -, within 8 inches of joint: NO, 6"436 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"483.6 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"534.5 ft. TF - Tap Factory Made, at 11 o'clock, -, within 8 inches of joint: NO, 6"534.9 ft. TFC - Tap Factory Made Capped, at 01 o'clock, -, within 8 inches of joint: NO, 6"581.6 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"636.6 ft. MGO - General Observation - CONNECTION AT MH 9 OCLOCK636.6 ft. AMH - Downstream Manhole, Survey Ends - B 1143

Observation photos (1)

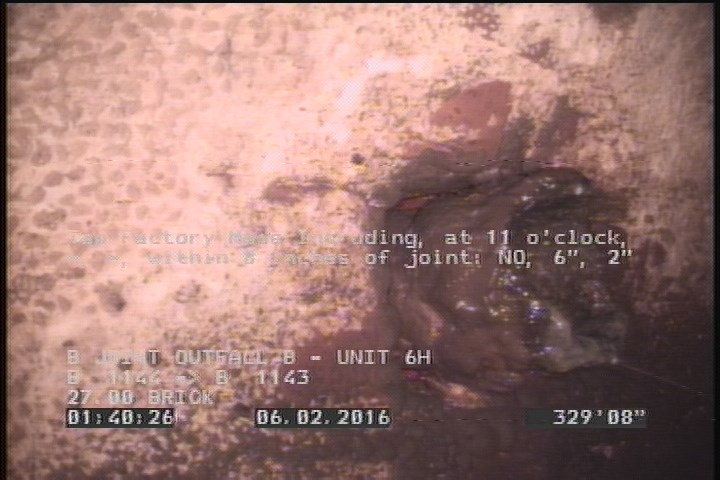

  • Tap Factory Made Intruding, at 11 o'clock, -, -, within 8 inches of joint: NO, 6", 2"

    330.6 ft. - Tap Factory Made Intruding, at 11 o'clock, -, -, within 8 inches of joint: NO, 6", 2"

All inspections of P13446Work order 574365

Observations (25)

DistanceCodeObservation
0MWM—
133TF—
80TFC—
330.6TFI—
436TFC—
383.2TF—
281.9TFC—
182.5TFC—
280TS—
483.6TFC—
0AMHB 1144
534.5TF—
383.2TF—
534.9TFC—
581.6TFC—
128.7TF—
168.4TF—
89.7TF—
335.1TFC—
636.6MGOCONNECTION AT MH 9 OCLOCK
636.6AMHB 1143
436TFC—
238.5TF—
335.1TFC—
0MWL—

Properties (5)

additional_info
SC300388
custom_field_two
4
customer
LACSD
datetime
2016-06-02T01:29:49-07:00
sewer_category
Gravity
