Wastewater/Activity/PacpInspection/1.0May 27, 2016, 11:09 AM
14 0454_14 0453_27052016_040947.mp4
- Date
- 05/27/2016
- W/O
- 574295
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00570
- PipeID
- P18542
- Time
- 4:09 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3514
- Sewer Name
- 14 AVENUE "I" TRUNK
- City
- PALMDALE
- Loc. details
- Main Highway - Suburban/Rural
- Location Code
- B
- Use of Sewer
- Sanitary Sewer
- District
- District 14
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_574295_TV14045_JUNE2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 12 in.
- Upstream MH
- 14 0454
- Downstream MH
- 14 0453
- Dir. of Survey
- Downstream
- Length Surveyed
- 112.5 ft.
- Total Length
- 112.5 ft.
- Structural Index
- 3
- Structural Quick
- 3C00
- Structural Rating
- 63
- O&M Index
- 2
- O&M Quick
- 2C00
- O&M Rating
- 44
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 107
Observation photos (2)

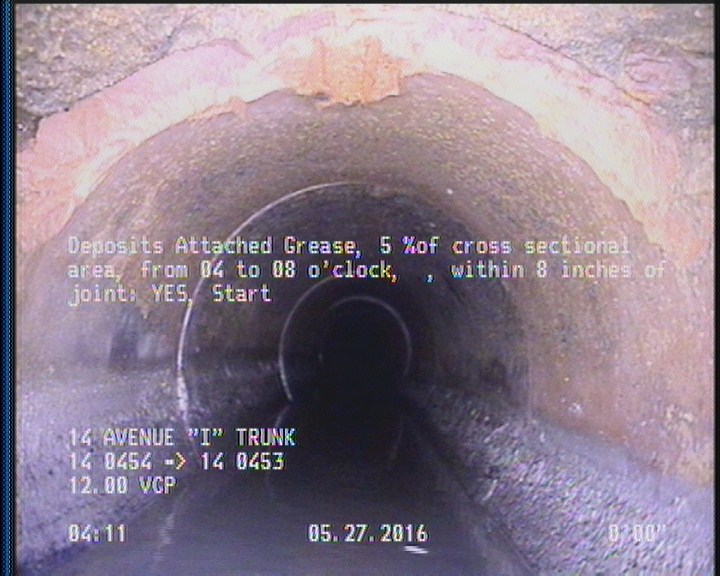

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

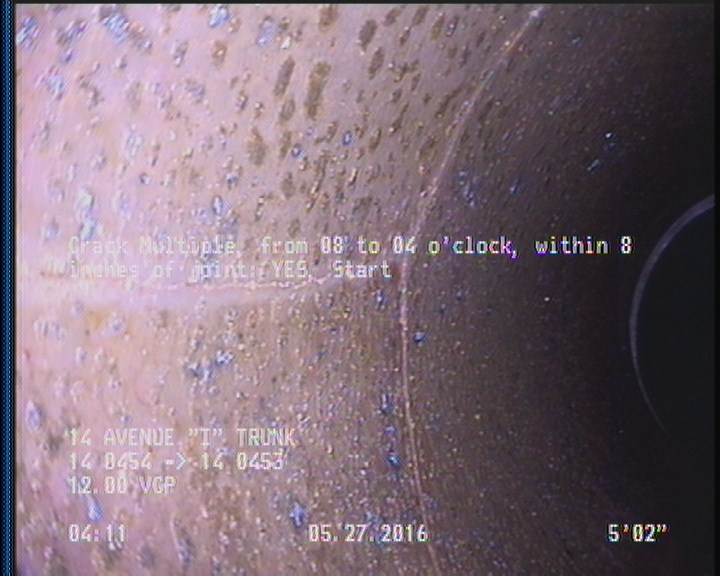

5.2 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
Observations (14)
| Distance | Code | Observation |
|---|---|---|
| 33.4 | TFA | — |
| 2 | DAGS | — |
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 31 | TFC | — |
| 84.9 | TFC | — |
| 112.5 | AMH | 14 0453 |
| 0 | MWL | — |
| 110.7 | DAGS | — |
| 0 | AMH | 14 0454 |
| 5.2 | CM | — |
| 112.5 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 110.7 | CM | — |
| 112.5 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC305644
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-27T04:09:11-07:00
- sewer_category
- GRAVITY
