Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0May 31, 2016, 08:37 AM

  • 14 0267_14 0459_31052016_013849.mp4

Date
05/31/2016
W/O
574295
Weather
Dry
Operator/Surveyor
S. LOPEZ
Sewer ID
Z00570
PipeID
P18548
Time
1:37 AM
Certificate
U-111-11880
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3515
Sewer Name
14 AVENUE "I" TRUNK
City
LANCASTER
Loc. details
Main Highway - Suburban/Rural
Location Code
B
Use of Sewer
Sanitary Sewer
District
District 14
Page No.
04
Purpose
Routine Assessment
Project
WO_574295_TV14045_JUNE2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
12 in.
Upstream MH
14 0267
Downstream MH
14 0459
Dir. of Survey
Downstream
Length Surveyed
147.7 ft.
Total Length
147.7 ft.
Structural Index
3
Structural Quick
3D21
Structural Rating
74
O&M Index
2
O&M Quick
2300
O&M Rating
6
Overall Index
3
Overall Quick
—
Overall Rating
80
Pipe schematic from manhole 14 0267 to 14 0459
MH: 14 0267MH: 14 0459downstream0 ft. AMH - Upstream Manhole, Survey Begins - 14 02670 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 3 O'CLOCK16.5 ft. CS - Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES22 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start25.7 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start39.5 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"84.3 ft. TFC - Tap Factory Made Capped, at 09 o'clock, -, within 8 inches of joint: NO, 6"86.9 ft. TF - Tap Factory Made, at 03 o'clock, -, within 8 inches of joint: NO, 6"143.6 ft. DSZ - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES145.5 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Finish145.5 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish147.7 ft. MGO - General Observation - ACTIVE CONNECTION AT MH 9 O'CLOCK147.7 ft. MGO - General Observation - COCKROACHES IN MANHOLE147.7 ft. AMH - Downstream Manhole, Survey Ends - 14 0459

Observation photos (5)

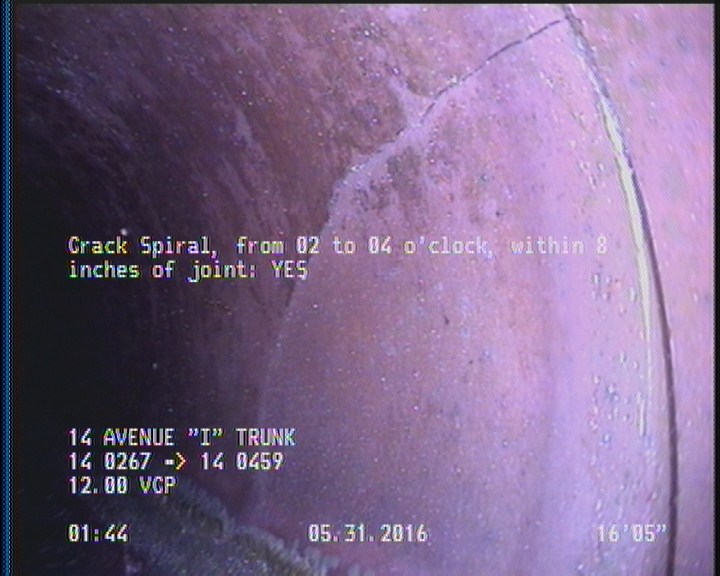

  • Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

    16.5 ft. - Crack Spiral, from 02 to 04 o'clock, within 8 inches of joint: YES

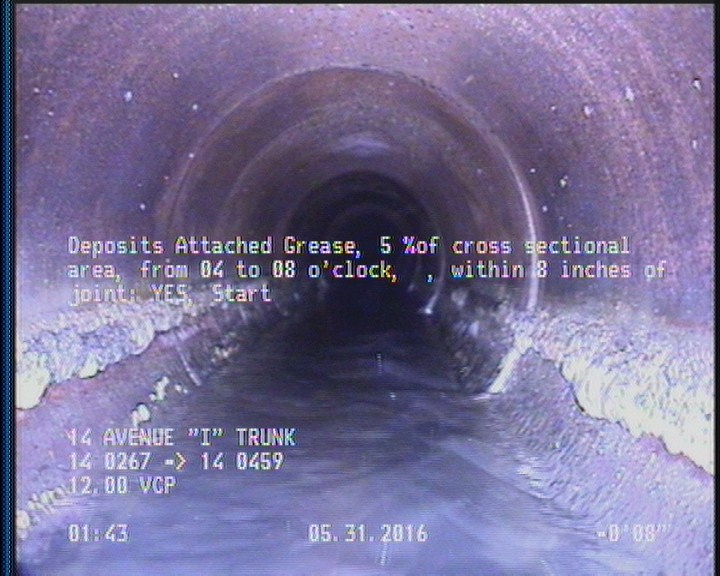

  • Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

    22 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 02 to 10 o'clock, , within 8 inches of joint: YES, Start

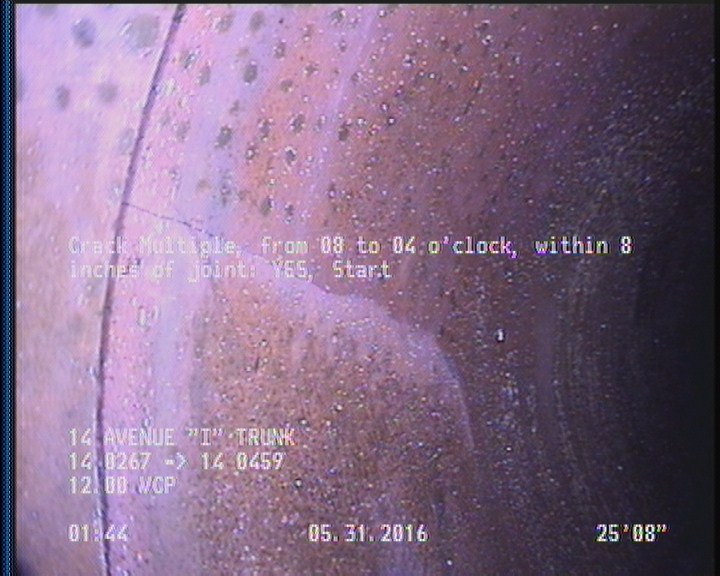

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    25.7 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

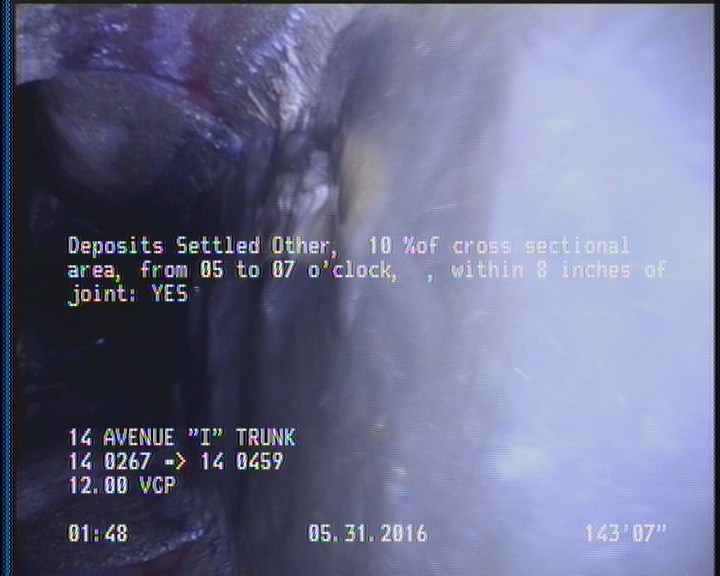

  • Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

    143.6 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES

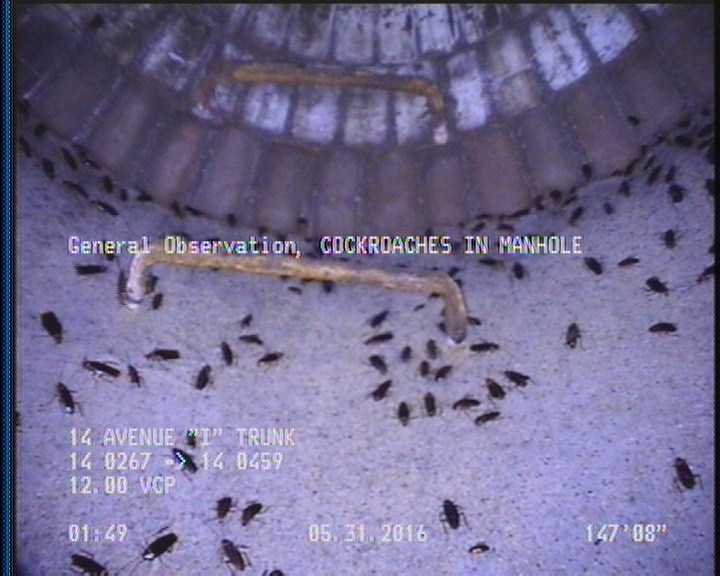

  • General Observation - COCKROACHES IN MANHOLE

    147.7 ft. - General Observation - COCKROACHES IN MANHOLE

All inspections of P18548Work order 574295

Observations (16)

DistanceCodeObservation
147.7MGOACTIVE CONNECTION AT MH 9 O'CLOCK
0AMH14 0267
84.3TFC—
145.5DAGS—
147.7MGOCOCKROACHES IN MANHOLE
16.5CS—
145.5CM—
143.6DSZ—
25.7CM—
86.9TF—
147.7AMH14 0459
0MWM—
39.5TFC—
22DAGS—
0MWL—
0MGOACTIVE CONNECTION AT MH 3 O'CLOCK

Properties (5)

additional_info
SC305645
custom_field_two
3
customer
LACSD
datetime
2016-05-31T01:37:50-07:00
sewer_category
GRAVITY
