Wastewater/Activity/PacpInspection/1.0May 19, 2016, 07:04 AM
03 0318_03 0317_19052016_000509.mp4
- Date
- 05/19/2016
- W/O
- 573469
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00359
- PipeID
- P04892
- Time
- 12:04 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3354
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_573469_JUNE2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0318
- Downstream MH
- 03 0317
- Dir. of Survey
- Downstream
- Length Surveyed
- 325.3 ft.
- Total Length
- 325.3 ft.
- Structural Index
- 3
- Structural Quick
- 3L2L
- Structural Rating
- 320
- O&M Index
- 4
- O&M Quick
- 4100
- O&M Rating
- 4
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 324
Observation photos (2)

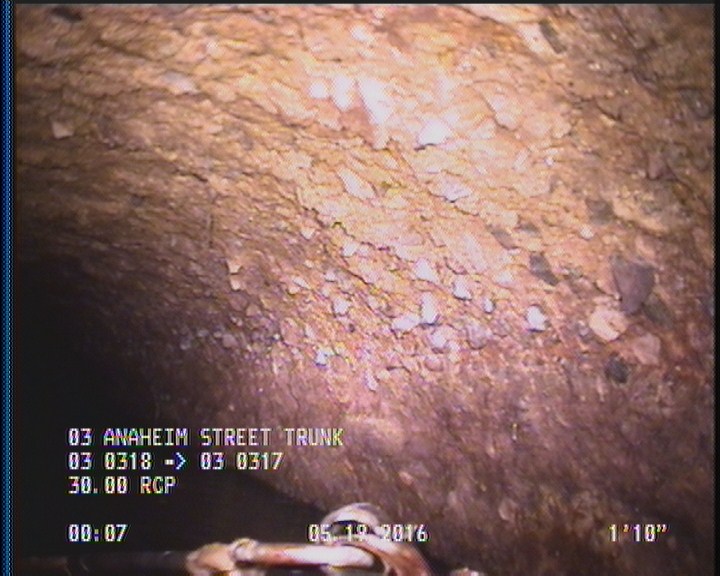

2 ft. - Surface Aggregate Projecting, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

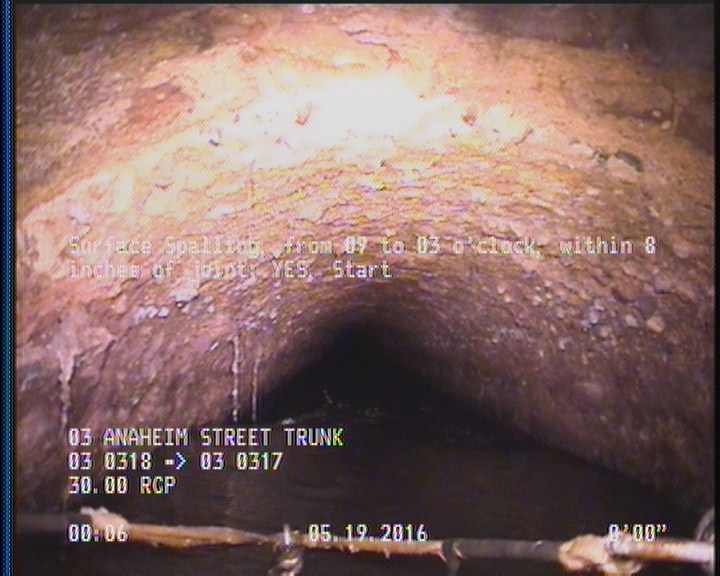

2 ft. - Surface Spalling, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 2 | SAP | — |
| 0 | MWM | — |
| 323.9 | SSS | — |
| 325.3 | MGO | ACTIVE CONNECTION AT MH 8 O'CLOCK |
| 0 | AMH | 03 0318 |
| 2 | SSS | — |
| 325.3 | AMH | 03 0317 |
| 323.9 | SAP | — |
| 325.3 | MGO | ACTIVE CONNECTION AT MH 4 O'CLOCK |
| 0 | MWL | — |
Properties (5)
- additional_info
- SC305634
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-19T00:04:21-07:00
- sewer_category
- GRAVITY
