Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jun 20, 2016, 07:38 AM

  • 05 1647_05 1646 _062016_003835.mpg

Date
06/20/2016
W/O
563399
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00539
PipeID
P06870
Time
12:38 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3399
Sewer Name
05 WEST TORRANCE TRUNK
City
TORRANCE
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 05
Page No.
30
Purpose
Routine Assessment
Project
WO_563399_TV05132_JUNE2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
05 1647
Downstream MH
05 1646
Dir. of Survey
Downstream
Length Surveyed
308.4 ft.
Total Length
308.4 ft.
Structural Index
3
Structural Quick
3K21
Structural Rating
179
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
179
Pipe schematic from manhole 05 1647 to 05 1646
MH: 05 1647MH: 05 1646downstream0 ft. MWL - Water Level, 15 %of cross sectional area0 ft. MWM - Water Mark, 30 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 05 16470 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK8.4 ft. CL - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES13 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start34.3 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"73.8 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"113.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"153 ft. TFA - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 6"162.5 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"192.8 ft. TF - Tap Factory Made, at 12 o'clock, -, within 8 inches of joint: NO, 6"232.5 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"271.9 ft. TFC - Tap Factory Made Capped, at 12 o'clock, -, within 8 inches of joint: NO, 6"308.4 ft. CM - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish308.4 ft. MGO - General Observation - CONNECTION AT THE MH 9 O'CLOCK308.4 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK308.4 ft. AMH - Downstream Manhole, Survey Ends - 05 1646

Observation photos (2)

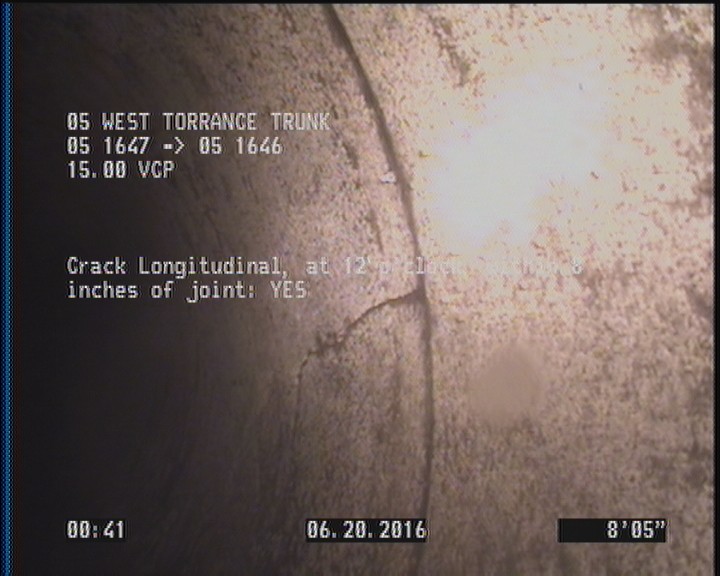

  • Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

    8.4 ft. - Crack Longitudinal, at 12 o'clock, within 8 inches of joint: YES

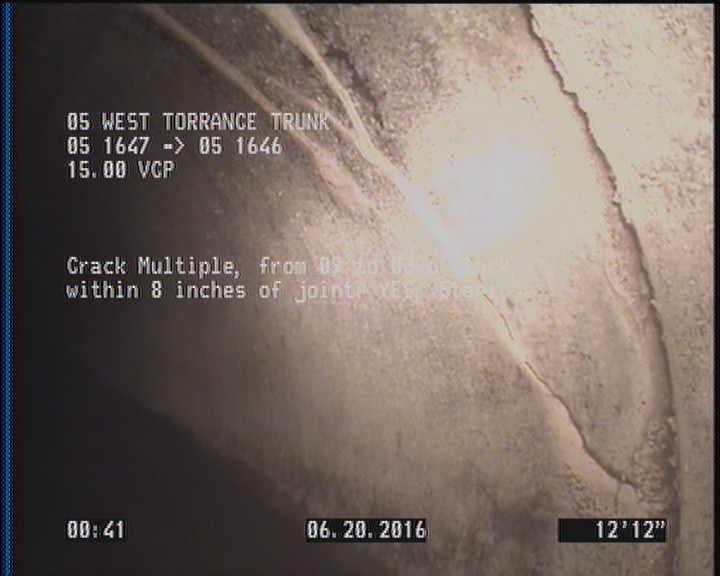

  • Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

    13 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

All inspections of P06870Work order 563399

Observations (18)

DistanceCodeObservation
34.3TFC—
308.4CM—
162.5TF—
0MWL—
308.4MGOCONNECTION AT THE MH 9 O'CLOCK
271.9TFC—
73.8TFC—
308.4MGOCONNECTION AT THE MH 3 O'CLOCK
8.4CL—
0MWM—
308.4AMH05 1646
0AMH05 1647
192.8TF—
0MGOCONNECTION AT THE MH 3 O'CLOCK
232.5TFC—
13CM—
153TFA—
113.5TF—

Properties (5)

additional_info
SC300399
custom_field_two
3
customer
LACSD
datetime
2016-06-20T00:38:15-07:00
sewer_category
Gravity
