Wastewater/Activity/PacpInspection/1.0May 19, 2017, 07:21 AM
02 0612_02 0611_19052017_002338.mp4
- Date
- 05/19/2017
- W/O
- 618894
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00258
- PipeID
- P03159
- Time
- 12:21 AM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K4557
- Sewer Name
- 02 EAST COMPTON BOULEVARD EXTENSION TRUNK
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 33
- Purpose
- Routine Assessment
- Project
- WO_618894_TV02057_MAY2017
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0611
- Downstream MH
- 02 0612
- Dir. of Survey
- Upstream
- Length Surveyed
- 6.8 ft.
- Total Length
- 6.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 4
Observation photos (1)

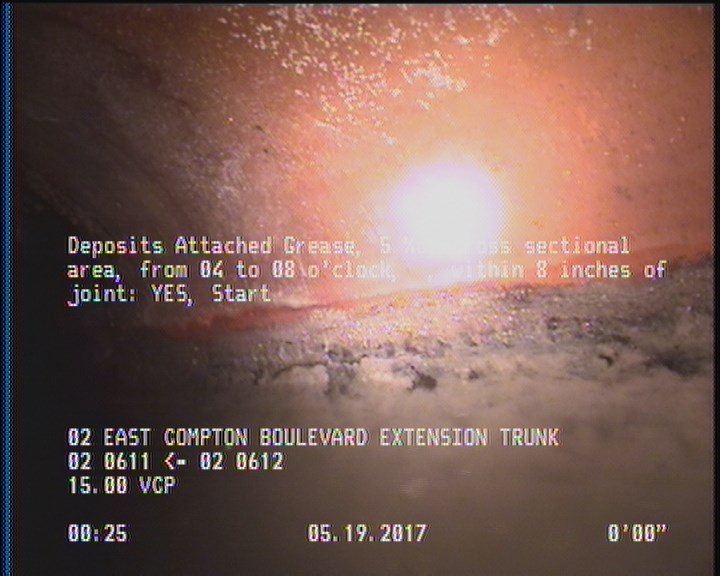

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (8)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 0 | MWM | — |
| 6.8 | AMH | 02 0612 |
| 6.8 | MGO | COCKROACHES IN MANHOLE |
| 0 | AMH | 02 0611 |
| 6.8 | DAGS | — |
| 2 | DAGS | — |
| 6.8 | MGO | STOP LOG CONNECTION AT MH 3 O'CLOCK |
Properties (4)
- additional_info
- SC345233
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-19T00:21:11-07:00
