Wastewater/Activity/PacpInspection/1.0Jul 21, 2016, 06:26 AM
02 0786_02 0785_20160721_003049.mp4
- Date
- 07/20/2016
- W/O
- 574316
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00294
- PipeID
- P03347
- Time
- 11:26 PM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3659
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_574316_TV02111_JUNE2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0786
- Downstream MH
- 02 0785
- Dir. of Survey
- Downstream
- Length Surveyed
- 86 ft.
- Total Length
- 86 ft.
- Structural Index
- 3
- Structural Quick
- 3121
- Structural Rating
- 5
- O&M Index
- 2
- O&M Quick
- 2111
- O&M Rating
- 3
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 8
Observation photos (3)

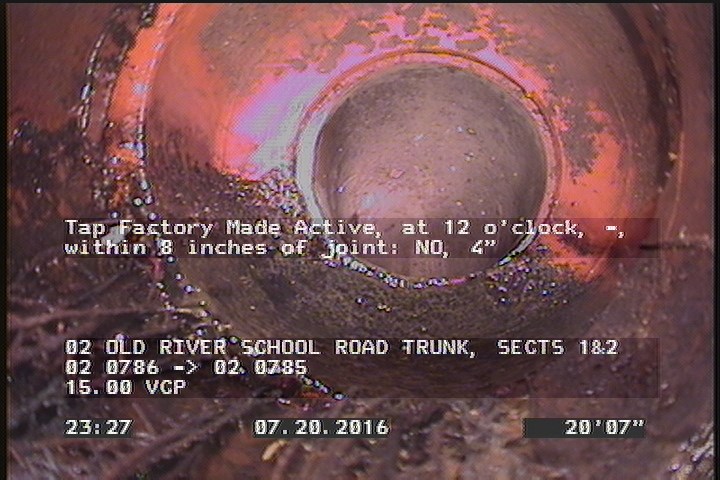

20.6 ft. - Tap Factory Made Active, at 12 o'clock, -, within 8 inches of joint: NO, 4"

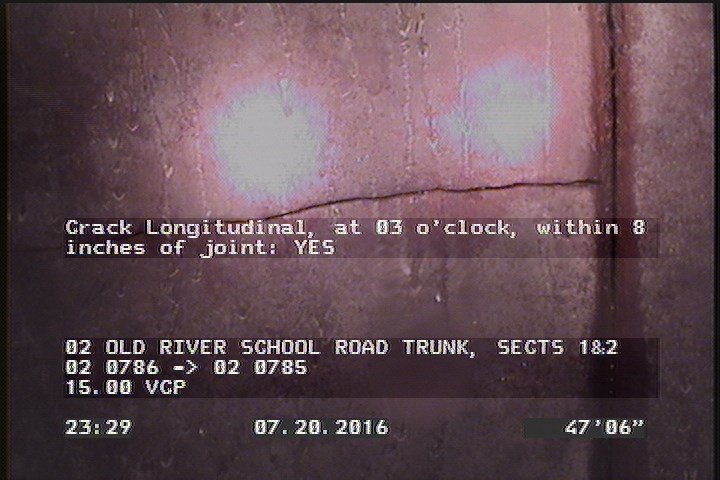

47.5 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

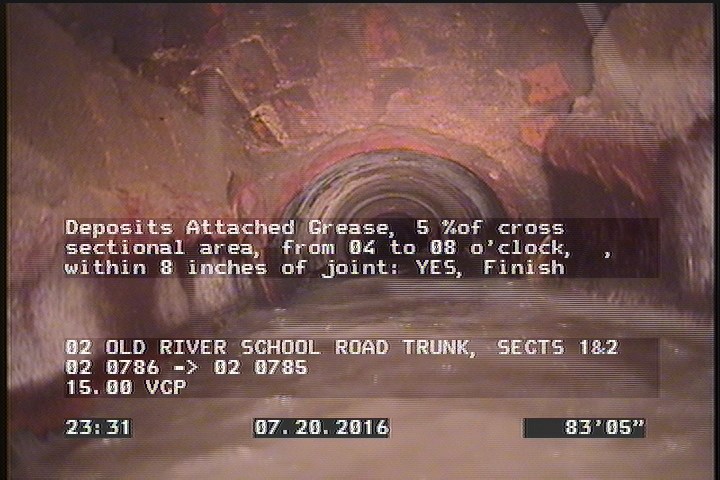

83.4 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish
Observations (12)
| Distance | Code | Observation |
|---|---|---|
| 47.5 | CL | — |
| 0 | MWM | — |
| 0 | AMH | 02 0786 |
| 2 | DAGS | — |
| 86 | AMH | 02 0785 |
| 20.6 | TFA | — |
| 0 | MWL | — |
| 86 | MGO | CONNECTION AT THE MH 3 O'CLOCK ACTIVE |
| 69.4 | TFA | — |
| 80.5 | CM | — |
| 20.6 | RFC | — |
| 83.4 | DAGS | — |
Properties (4)
- additional_info
- SC305538
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-20T23:26:00-07:00
