Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 20, 2016, 08:33 AM

  • 02 0802_02 0801_20160720_023416.mp4

Date
07/20/2016
W/O
574316
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00294
PipeID
P03368
Time
1:33 AM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3658
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
24
Purpose
Routine Assessment
Project
WO_574316_TV02111_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0801
Downstream MH
02 0802
Dir. of Survey
Upstream
Length Surveyed
38.7 ft.
Total Length
38.7 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
2
O&M Quick
2100
O&M Rating
2
Overall Index
3
Overall Quick
—
Overall Rating
8
Pipe schematic from manhole 02 0801 to 02 0802
MH: 02 0801MH: 02 0802upstream0 ft. AMH - Upstream Manhole, Survey Ends - 02 08021.8 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish11.5 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES11.5 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"15 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"30.8 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES36.7 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start38.7 ft. AMH - Downstream Manhole, Survey Begins - 02 080138.7 ft. MWM - Water Mark, 20 %of cross sectional area38.7 ft. MWL - Water Level, 15 %of cross sectional area

Observation photos (2)

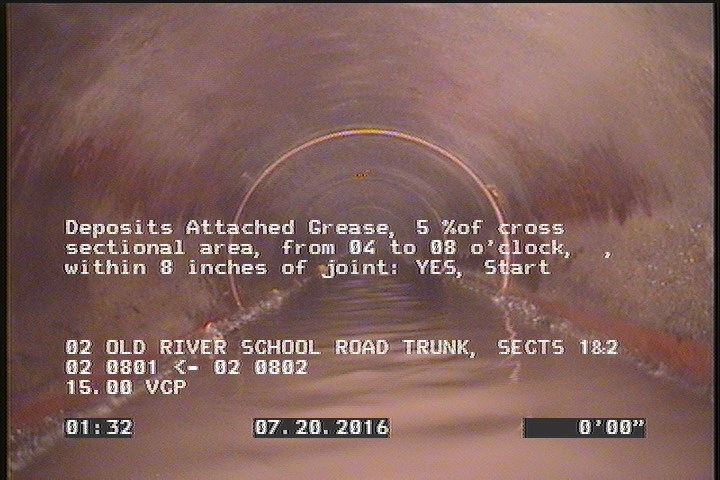

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

    2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

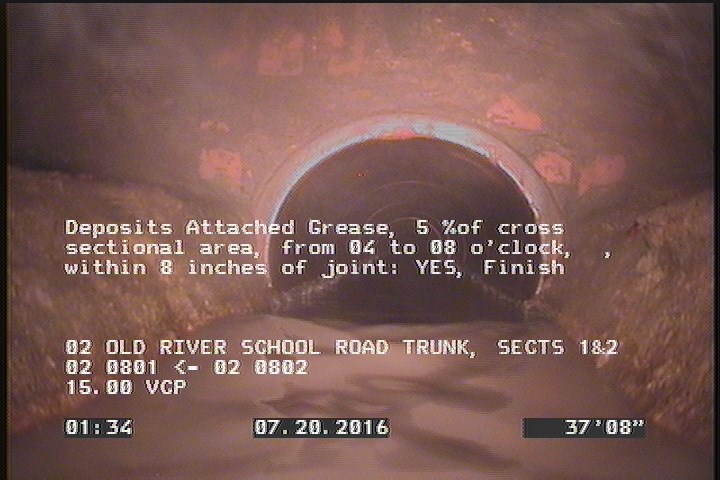

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

    36.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish

All inspections of P03368Work order 574316

Observations (10)

DistanceCodeObservation
2DAGS—
36.9DAGS—
23.7TFC—
0AMH02 0801
0MWM—
38.7AMH02 0802
27.2CM—
27.2TFC—
0MWL—
7.9CM—

Properties (4)

additional_info
SC305537
custom_field_two
4
customer
LACSD
datetime
2016-07-20T01:33:00-07:00
