Wastewater/Activity/PacpInspection/1.0Jul 20, 2016, 11:31 AM
02 0795_02 0794_20160720_053743.mp4
- Date
- 07/20/2016
- W/O
- 574316
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00294
- PipeID
- P03360
- Time
- 4:31 AM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3658
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_574316_TV02111_JUNE2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0794
- Downstream MH
- 02 0795
- Dir. of Survey
- Upstream
- Length Surveyed
- 78.2 ft.
- Total Length
- 78.2 ft.
- Structural Index
- 3
- Structural Quick
- 3200
- Structural Rating
- 6
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 6
Observation photos (5)

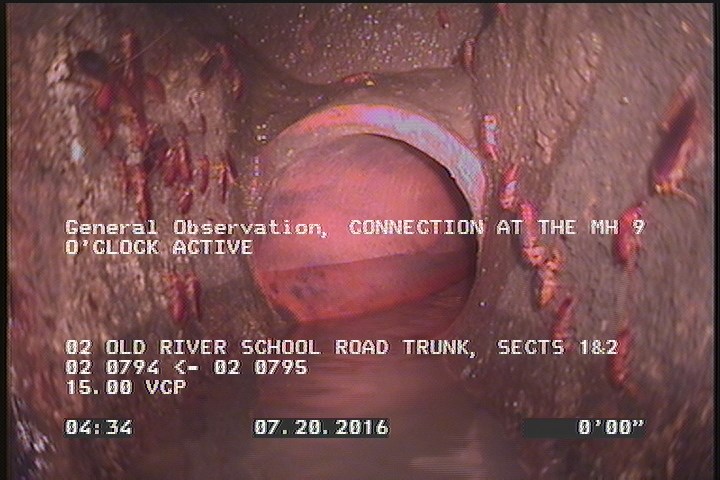

0 ft. - General Observation - CONNECTION AT THE MH 9 O'CLOCK ACTIVE

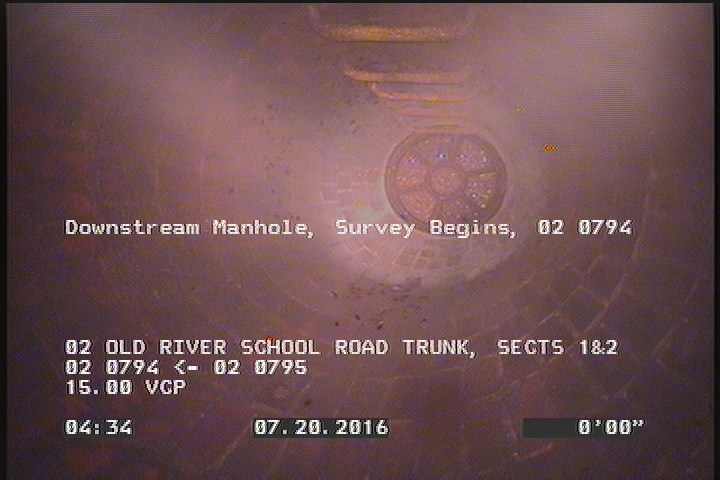

0 ft. - Downstream Manhole, Survey Begins - 02 0794

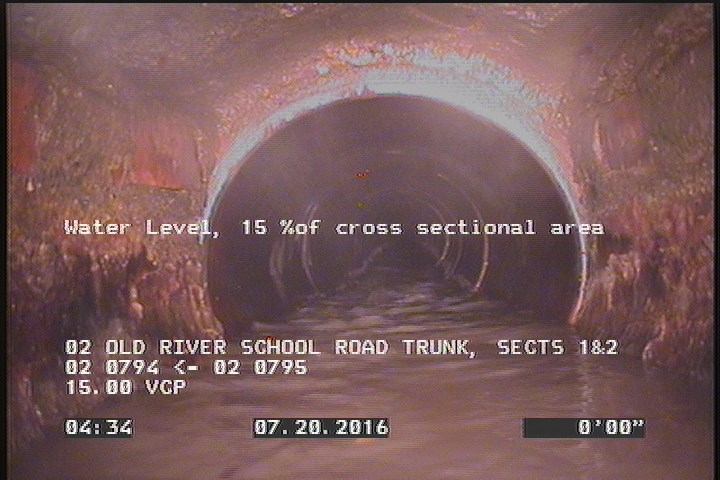

0 ft. - Water Level, 15 %of cross sectional area

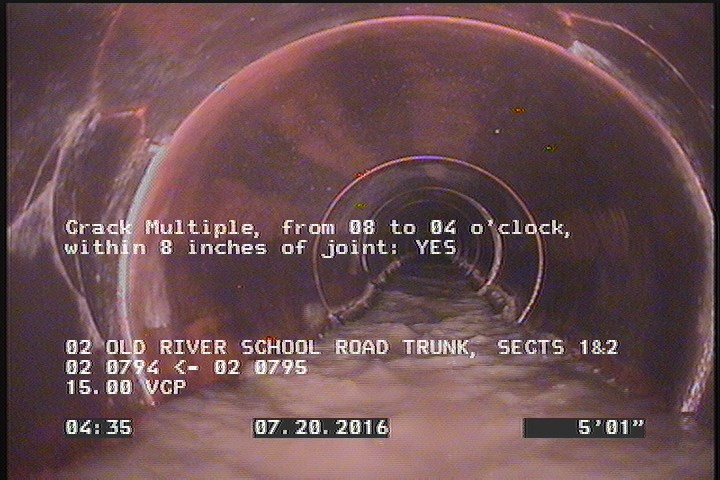

5.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

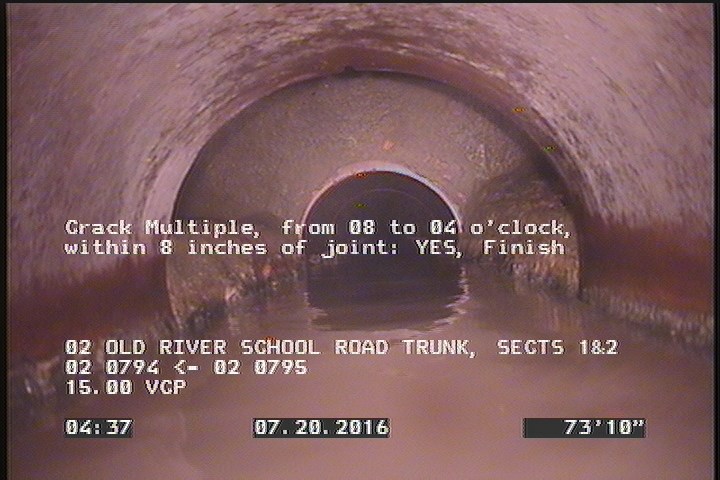

73.8 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 50.2 | TFC | — |
| 73.8 | CM | — |
| 0 | MGO | CONNECTION AT THE MH 9 O'CLOCK ACTIVE |
| 5.1 | CM | — |
| 47.2 | TF | — |
| 27.5 | CM | — |
| 0 | AMH | 02 0794 |
| 0 | MWM | — |
| 78.2 | AMH | 02 0795 |
| 0 | MWL | — |
Properties (4)
- additional_info
- SC305537
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-07-20T04:31:52-07:00
