Wastewater/Activity/PacpInspection/1.0Jul 22, 2016, 06:07 AM
02 0807_02 0806_20160722_001534.mp4
- Date
- 07/21/2016
- W/O
- 574316
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00294
- PipeID
- P03373
- Time
- 11:07 PM
- Certificate
- U-507-3386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3660
- Sewer Name
- 02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
- City
- DOWNEY
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_574316_TV02111_JUNE2016
- Sewer Type
- Gravity
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 15 in.
- Width
- 15 in.
- Upstream MH
- 02 0807
- Downstream MH
- 02 0806
- Dir. of Survey
- Downstream
- Length Surveyed
- 143.6 ft.
- Total Length
- 143.6 ft.
- Structural Index
- 3
- Structural Quick
- 3221
- Structural Rating
- 8
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 10
Observation photos (4)

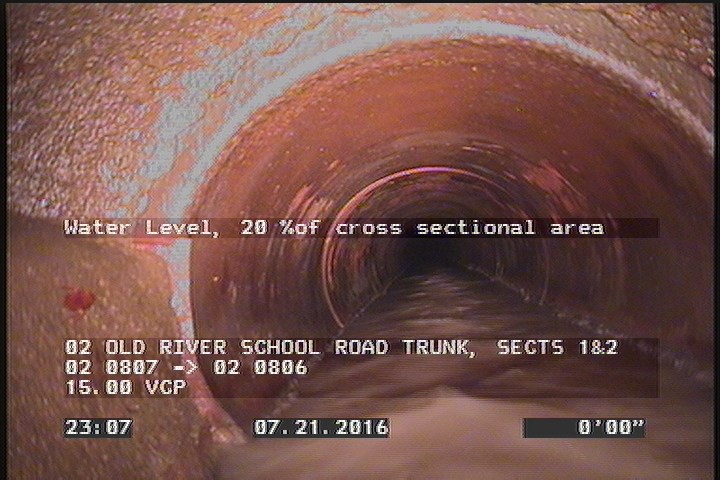

0 ft. - Water Level, 20 %of cross sectional area

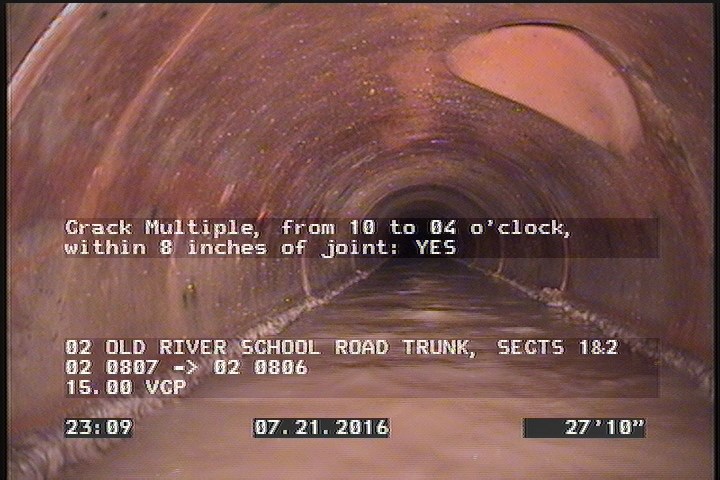

27.9 ft. - Crack Multiple, from 10 to 04 o'clock, within 8 inches of joint: YES

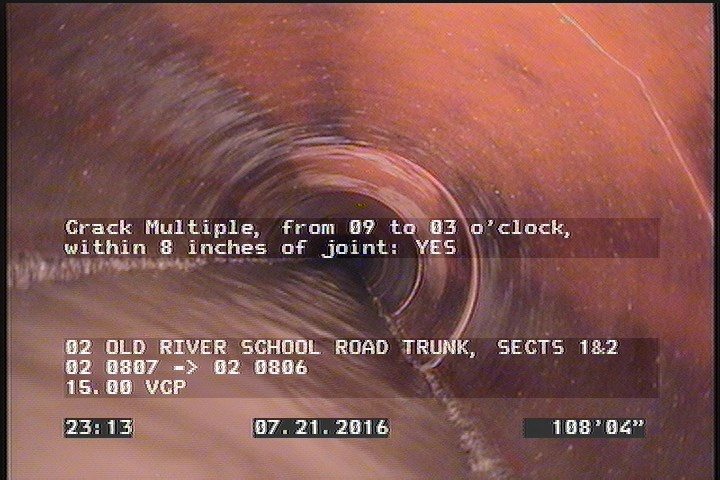

108.3 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES

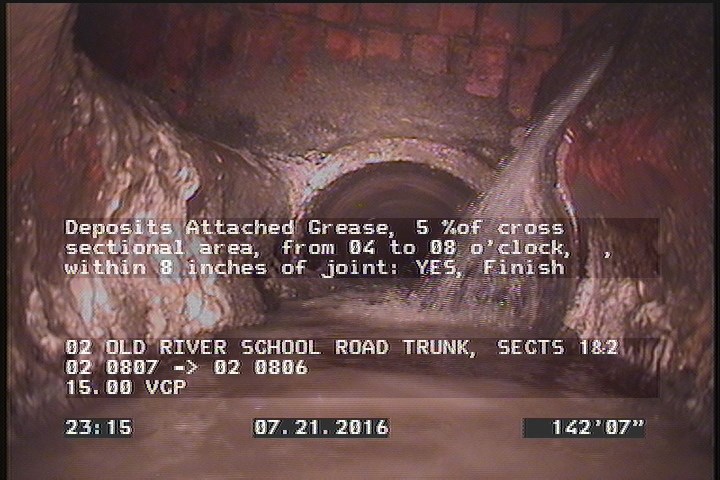

142.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Finish
Observations (17)
| Distance | Code | Observation |
|---|---|---|
| 125.4 | TFC | — |
| 0 | MWL | — |
| 143.6 | AMH | 02 0806 |
| 142.6 | DAGS | — |
| 3 | DAGS | — |
| 0 | AMH | 02 0807 |
| 3 | SSS | — |
| 79.6 | TFC | — |
| 143.6 | MGO | CONNECTION AT THE MH O'CLOCK ACTIVE |
| 0 | MWM | — |
| 27.2 | TFC | — |
| 76.2 | TFC | — |
| 108.3 | CM | — |
| 27.9 | CM | — |
| 32 | SSS | — |
| 128.7 | TFC | — |
| 30.5 | TFC | — |
Properties (4)
- additional_info
- SC305539
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-07-21T23:07:00-07:00
