Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 12, 2016, 09:11 PM

  • 02 0814_02 0813_20160804_114142.mp4

Date
07/12/2016
W/O
574316
Weather
Dry
Operator/Surveyor
N. ZAHREDDINE
Sewer ID
Z00294
PipeID
P03380
Time
2:11 PM
Certificate
N/A
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3204
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
24
Purpose
Routine Assessment
Project
WO_574316_TV02111_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0814
Downstream MH
02 0813
Dir. of Survey
Downstream
Length Surveyed
257.8 ft.
Total Length
257.8 ft.
Structural Index
3
Structural Quick
413C
Structural Rating
58
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
58
Pipe schematic from manhole 02 0814 to 02 0813
MH: 02 0814MH: 02 0813downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 08140 ft. MWM - Water Mark, 35 %of cross sectional area0 ft. MWL - Water Level, 15 %of cross sectional area3.1 ft. FM - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES108.1 ft. CM - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES132.1 ft. CM - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES168 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES176.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start253.1 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish257.1 ft. MGO - General Observation - CONNECTION AT MH 3 O'CLOCK257.8 ft. AMH - Downstream Manhole, Survey Ends - 02 0813

Observation photos (5)

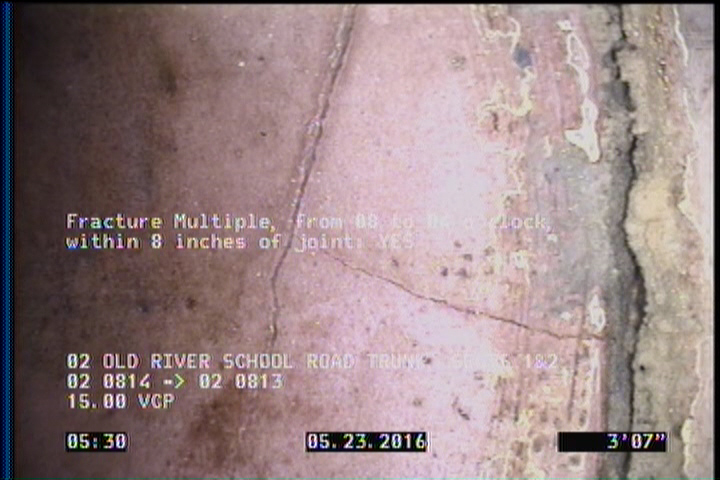

  • Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    3.1 ft. - Fracture Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

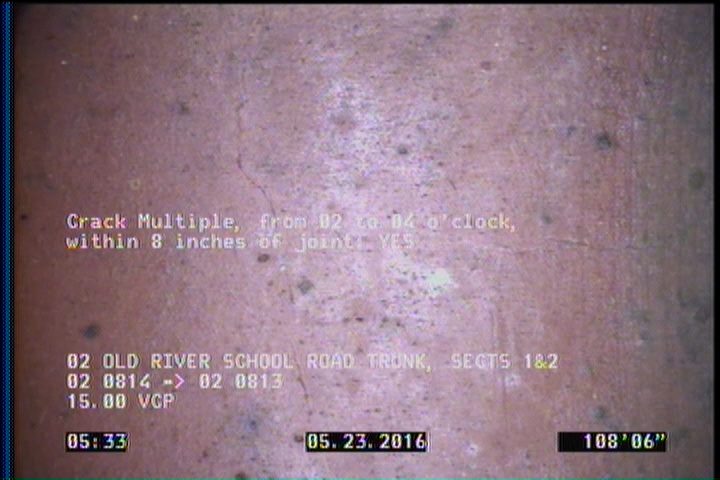

  • Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

    108.1 ft. - Crack Multiple, from 02 to 04 o'clock, within 8 inches of joint: YES

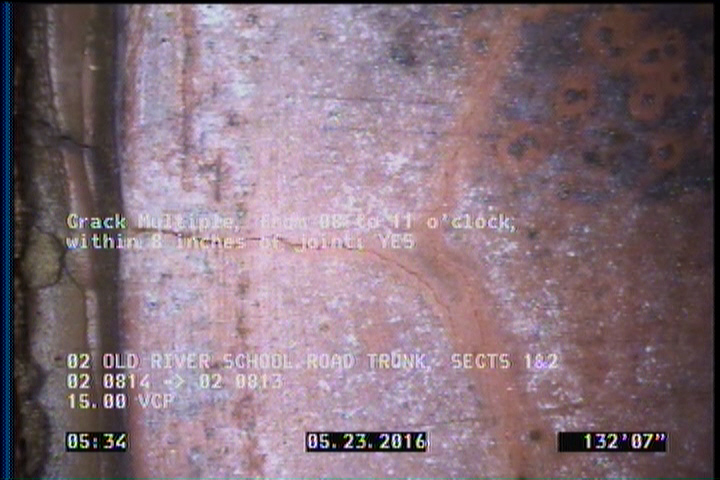

  • Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

    132.1 ft. - Crack Multiple, from 08 to 11 o'clock, within 8 inches of joint: YES

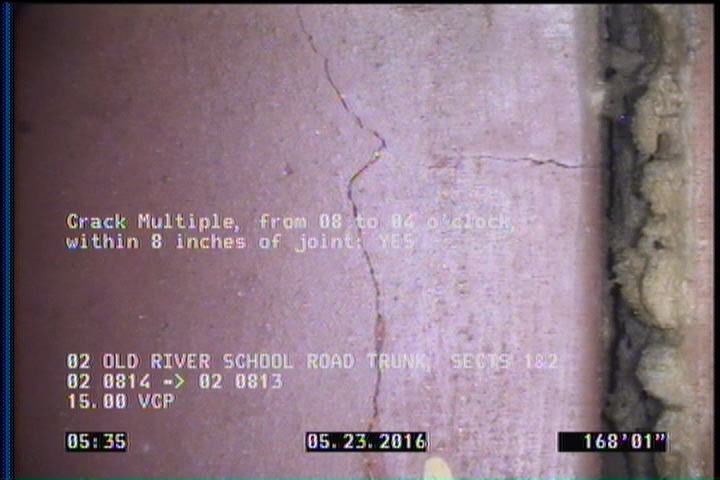

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

    168 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES

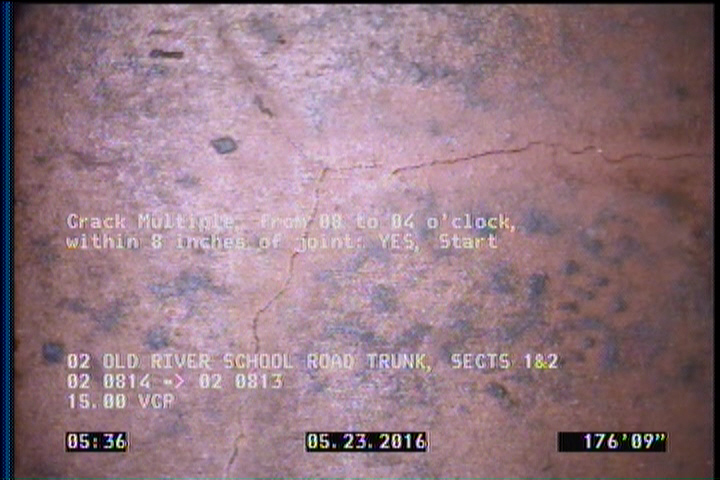

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    176.1 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P03380Work order 574316

Observations (11)

DistanceCodeObservation
168CM—
3.1FM—
108.1CM—
0AMH02 0814
257.1MGOCONNECTION AT MH 3 O'CLOCK
0MWM—
257.8AMH02 0813
253.1CM—
176.1CM—
0MWL—
132.1CM—

Properties (4)

additional_info
SC300662
custom_field_two
3
customer
LACSD
datetime
2016-07-12T14:11:28-07:00
