Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 22, 2016, 06:18 AM

  • 02 0806_02 0805_20160722_002944.mp4

Date
07/21/2016
W/O
574316
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00294
PipeID
P03372
Time
11:18 PM
Certificate
U-507-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3660
Sewer Name
02 OLD RIVER SCHOOL ROAD TRUNK, SECTS 1&2
City
DOWNEY
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
24
Purpose
Routine Assessment
Project
WO_574316_TV02111_JUNE2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0806
Downstream MH
02 0805
Dir. of Survey
Downstream
Length Surveyed
194.3 ft.
Total Length
194.3 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
3
O&M Quick
3121
O&M Rating
5
Overall Index
3
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 02 0806 to 02 0805
MH: 02 0806MH: 02 0805downstream0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. MWL - Water Level, 20 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 08067.4 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Start33.4 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"36.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"82.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"82.5 ft. CM - Crack Multiple, from 08 to 01 o'clock, within 8 inches of joint: YES85.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"132.3 ft. DAGS - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 05 o'clock, , within 8 inches of joint: YES138.5 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: NO, 4"139.7 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: NO, 4"174.1 ft. CM - Crack Multiple, from 08 to 12 o'clock, within 8 inches of joint: YES192.1 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: NO, Finish194.3 ft. AMH - Downstream Manhole, Survey Ends - 02 0805194.3 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE

Observation photos (2)

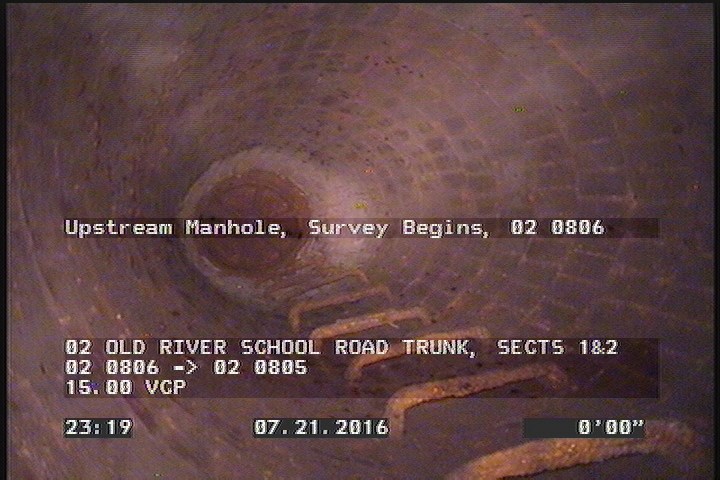

  • Upstream Manhole, Survey Begins - 02 0806

    0 ft. - Upstream Manhole, Survey Begins - 02 0806

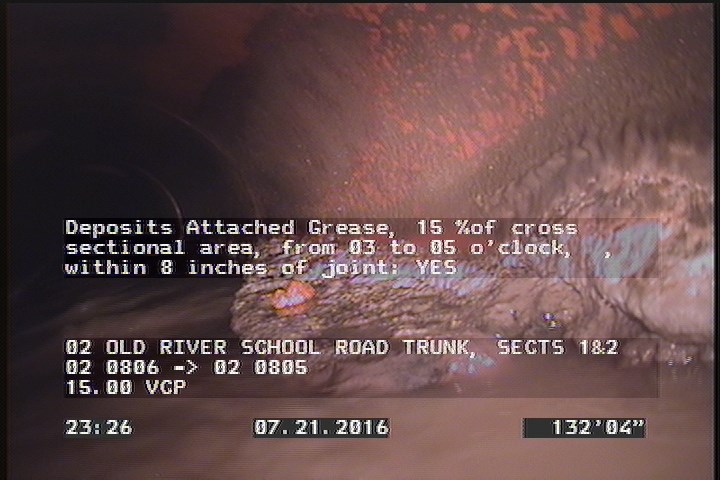

  • Deposits Attached Grease, 15 %of cross sectional area, from 03 to 05 o'clock, , within 8 inches of joint: YES

    132.3 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 03 to 05 o'clock, , within 8 inches of joint: YES

All inspections of P03372Work order 574316

Observations (17)

DistanceCodeObservation
174.1CM—
33.4TFC—
0MGOCONNECTION AT THE MH 3 O'CLOCK ACTIVE
82.5CM—
194.3AMH02 0805
132.3DAGS—
139.7TFC—
0MWM—
194.3MGOCONNECTION AT THE MH 3 O'CLOCK ACTIVE
0MWL—
36.7TFC—
138.5TFC—
0AMH02 0806
192.1DAGS—
82.2TFC—
85.2TFC—
7.4DAGS—

Properties (4)

additional_info
SC305539
custom_field_two
4
customer
LACSD
datetime
2016-07-21T23:18:33-07:00
