Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 9, 2016, 04:42 AM

  • 02 0380A_02 0380 _20160808_231537.mp4

Date
08/08/2016
W/O
252431
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00250
PipeID
P02698
Time
9:42 PM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3678
Sewer Name
02 DOWNEY AVENUE EXTENSION TRUNK
City
BELLFLOWER, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
36
Purpose
Routine Assessment
Project
WO_252431_TV02049_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
18 in.
Width
18 in.
Upstream MH
02 0380A
Downstream MH
02 0380
Dir. of Survey
Downstream
Length Surveyed
198.4 ft.
Total Length
198.4 ft.
Structural Index
3
Structural Quick
3221
Structural Rating
8
O&M Index
2
O&M Quick
2111
O&M Rating
3
Overall Index
2
Overall Quick
—
Overall Rating
11
Pipe schematic from manhole 02 0380A to 02 0380
MH: 02 0380AMH: 02 0380downstream0 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE0 ft. MWL - Water Level, 40 %of cross sectional area0 ft. VC - Vermin Cockroach0 ft. MWM - Water Mark, 45 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 0380A7.2 ft. DAGS - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES18.7 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"30.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"73.8 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: NO, 4"81.2 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"121.2 ft. TFC - Tap Factory Made Capped, at 10 o'clock, -, within 8 inches of joint: YES, 4"132.2 ft. TF - Tap Factory Made, at 02 o'clock, -, within 8 inches of joint: YES, 4"166.2 ft. CL - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES171.9 ft. TF - Tap Factory Made, at 10 o'clock, -, within 8 inches of joint: YES, 4"173.4 ft. CM - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES177.7 ft. CM - Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES178.9 ft. TFC - Tap Factory Made Capped, at 02 o'clock, -, within 8 inches of joint: YES, 4"198.4 ft. AMH - Downstream Manhole, Survey Ends - 02 0380198.4 ft. MGO - General Observation - CONNECTION AT THE MH 3 O'CLOCK ACTIVE

Observation photos (4)

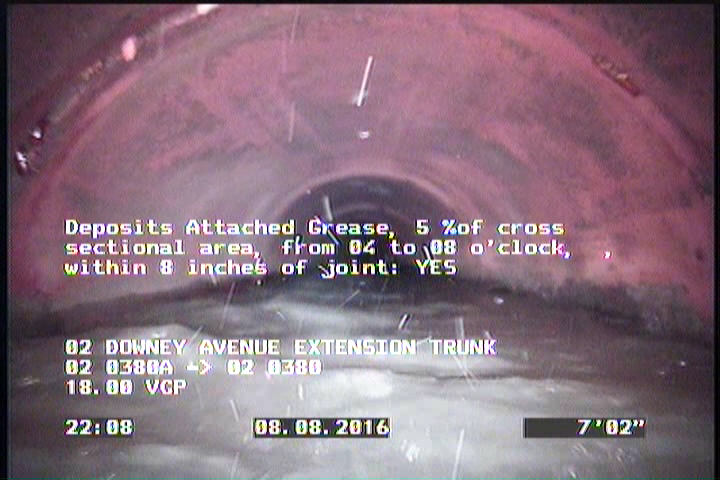

  • Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

    7.2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES

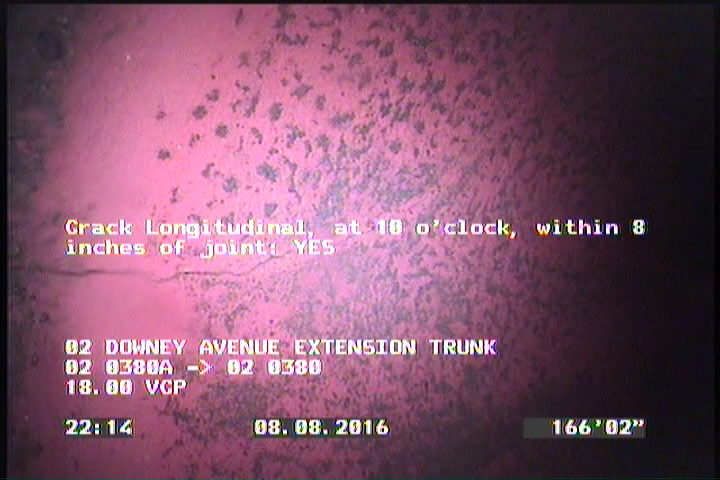

  • Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

    166.2 ft. - Crack Longitudinal, at 10 o'clock, within 8 inches of joint: YES

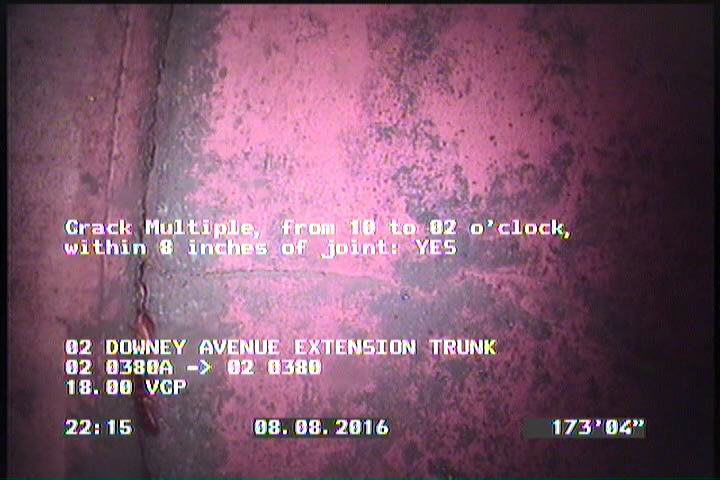

  • Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

    173.4 ft. - Crack Multiple, from 10 to 02 o'clock, within 8 inches of joint: YES

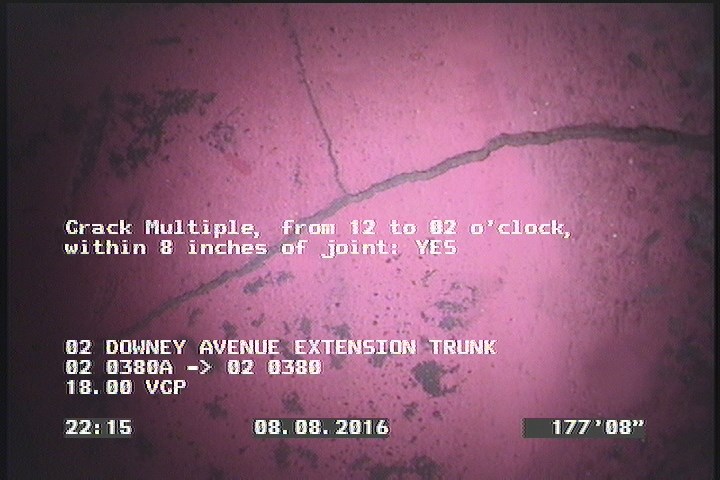

  • Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

    177.7 ft. - Crack Multiple, from 12 to 02 o'clock, within 8 inches of joint: YES

All inspections of P02698Work order 252431

Observations (19)

DistanceCodeObservation
173.4CM—
73.8TF—
81.2TFC—
178.9TFC—
121.2TFC—
18.7TFC—
0MGOCONNECTION AT THE MH 3 O'CLOCK ACTIVE
132.2TF—
166.2CL—
30.9TFC—
171.9TF—
0MWL—
0VC—
0MWM—
0AMH02 0380A
198.4AMH02 0380
198.4MGOCONNECTION AT THE MH 3 O'CLOCK ACTIVE
7.2DAGS—
177.7CM—

Properties (4)

additional_info
SC306008
custom_field_two
4
customer
LACSD
datetime
