Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 11, 2016, 09:05 AM

  • 02 0405_02 0404 _20160811_032850.mp4

Date
08/11/2016
W/O
252431
Weather
Dry
Operator/Surveyor
J. HARTOOG
Sewer ID
Z00250
PipeID
P02726
Time
2:05 AM
Certificate
U-507-03-3386
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
K3680
Sewer Name
02 DOWNEY AVENUE EXTENSION TRUNK
City
SOUTH GATE, CA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
32
Purpose
Routine Assessment
Project
WO_252431_TV02049_AUG2016
Sewer Type
Gravity
Material
Vitrified Clay Pipe
Shape
Circular
Height
15 in.
Width
15 in.
Upstream MH
02 0405
Downstream MH
02 0404
Dir. of Survey
Downstream
Length Surveyed
448.3 ft.
Total Length
448.3 ft.
Structural Index
0
Structural Quick
0000
Structural Rating
0
O&M Index
3
O&M Quick
3100
O&M Rating
3
Overall Index
3
Overall Quick
—
Overall Rating
3
Pipe schematic from manhole 02 0405 to 02 0404
MH: 02 0405MH: 02 0404downstream0 ft. MWM - Water Mark, 25 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 02 04050 ft. MWL - Water Level, 25 %of cross sectional area7.2 ft. OBR - Obstacles Rocks, 20 %of cross sectional area, from 04 to 08 o'clock, Start105.8 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"125.7 ft. OBR - Obstacles Rocks, 20 %of cross sectional area, from 04 to 08 o'clock, Finish239.5 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"367.5 ft. TBA - Tap Break-In Active, at 12 o'clock, -, within 8 inches of joint: YES, 4"448.3 ft. AMH - Downstream Manhole, Survey Ends - 02 0404

Observation photos (2)

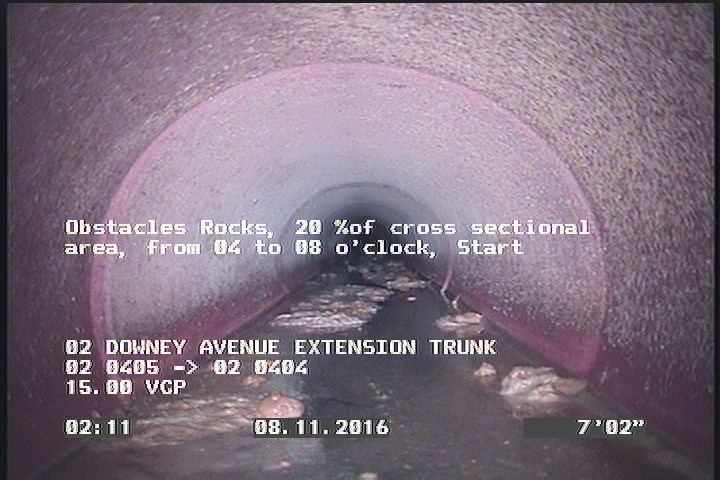

  • Obstacles Rocks, 20 %of cross sectional area, from 04 to 08 o'clock, Start

    7.2 ft. - Obstacles Rocks, 20 %of cross sectional area, from 04 to 08 o'clock, Start

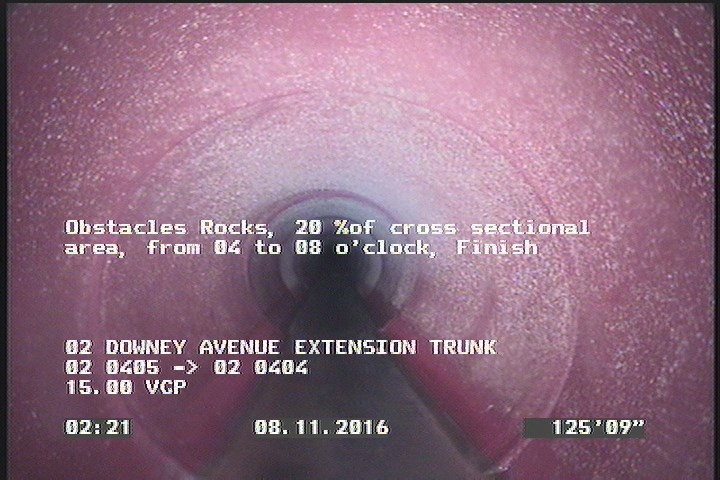

  • Obstacles Rocks, 20 %of cross sectional area, from 04 to 08 o'clock, Finish

    125.7 ft. - Obstacles Rocks, 20 %of cross sectional area, from 04 to 08 o'clock, Finish

All inspections of P02726Work order 252431

Observations (9)

DistanceCodeObservation
367.5TBA—
0MWM—
448.3AMH02 0404
125.7OBR—
239.5TBA—
105.8TBA—
0AMH02 0405
7.2OBR—
0MWL—

Properties (4)

additional_info
SC306010
custom_field_two
4
customer
LACSD
datetime
2016-08-11T02:05:00-07:00
