Wastewater/Activity/PacpInspection/1.0Sep 7, 2016, 10:57 AM
01 1002_01 1014_07092016_035821.mp4
- Date
- 09/07/2016
- W/O
- 585982
- Weather
- Dry
- Operator/Surveyor
- B.FUGATE
- Sewer ID
- Z00221
- PipeID
- P01844
- Time
- 3:57 AM
- Certificate
- U-508-7069
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3580
- Sewer Name
- 01 VERNON EXTENSION TRUNK
- City
- HUNTINGTON PARK
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 01
- Page No.
- 04
- Purpose
- Routine Assessment
- Project
- WO_585982_TV01065_AUG2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 24 in.
- Width
- 24 in.
- Upstream MH
- 01 1014
- Downstream MH
- 01 1002
- Dir. of Survey
- Upstream
- Length Surveyed
- 7.8 ft.
- Total Length
- 7.8 ft.
- Structural Index
- 0
- Structural Quick
- 0000
- Structural Rating
- 0
- O&M Index
- 2
- O&M Quick
- 2100
- O&M Rating
- 2
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 2
Observation photos (1)

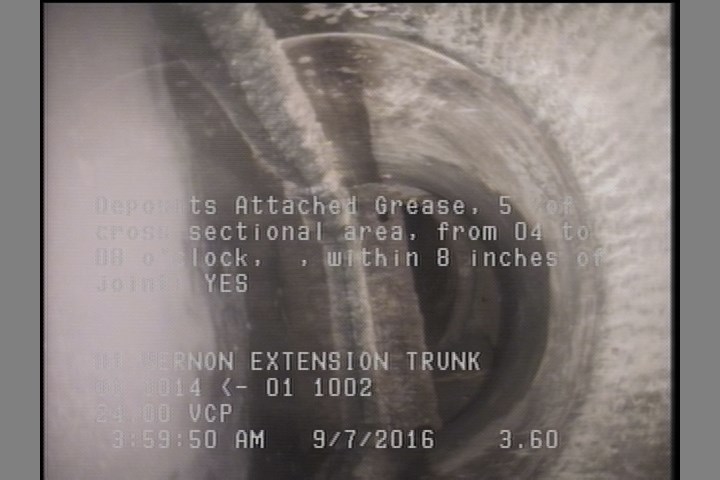

3.6 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES
Observations (6)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | LATERAL AT MH 3 OCLOCK |
| 0 | MWL | — |
| 7.8 | AMH | 01 1002 |
| 3.6 | DAGS | — |
| 0 | AMH | 01 1014 |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC306170
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2016-09-07T03:57:18-07:00
- sewer_category
- Gravity
