Wastewater/Activity/PacpInspection/1.0Sep 9, 2016, 10:36 AM
F 0079_F 0078 _20160909_050502.mp4
- Date
- 09/09/2016
- W/O
- 577468
- Weather
- Dry
- Operator/Surveyor
- J. HARTOOG
- Sewer ID
- Z00043
- PipeID
- P10283
- Time
- 3:36 AM
- Certificate
- U507033386
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K3705
- Sewer Name
- F JOINT OUTFALL F - UNIT 7A
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 02
- Page No.
- 37
- Purpose
- Routine Assessment
- Project
- WO_577468_TV02203_JULY2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 60 in.
- Width
- 60 in.
- Upstream MH
- F 0079
- Downstream MH
- F 0078
- Dir. of Survey
- Downstream
- Length Surveyed
- 697.2 ft.
- Total Length
- 697.2 ft.
- Structural Index
- 3
- Structural Quick
- 3100
- Structural Rating
- 3
- O&M Index
- 0
- O&M Quick
- 0000
- O&M Rating
- 0
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 3
Observation photos (2)

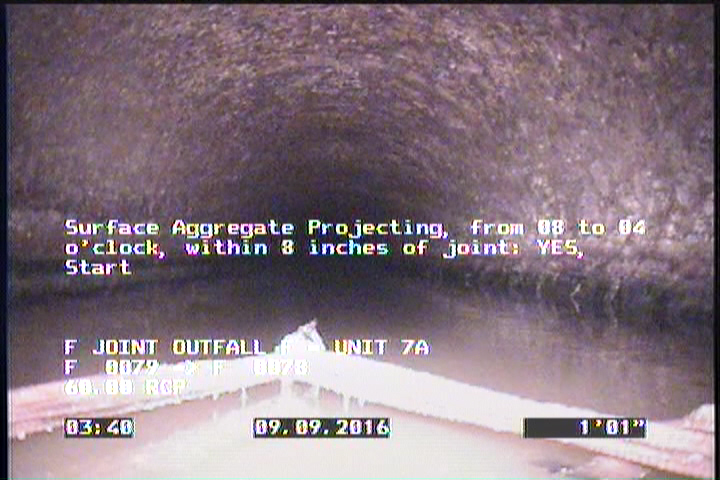

0.1 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start
85 ft. - General Photograph
Observations (9)
| Distance | Code | Observation |
|---|---|---|
| 697.2 | AMH | F 0078 |
| 0 | MWL | — |
| 695.1 | MGO | CONNECTION AT THE MH 9 O'CLOCK |
| 85 | MGP | — |
| 2 | MGO | MAG.H.C. START |
| 0.1 | SAP | — |
| 695.1 | SAP | — |
| 0 | MWM | — |
| 0 | AMH | F 0079 |
Properties (5)
- additional_info
- SC306036
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-09-09T03:36:25-07:00
- sewer_category
- Gravity
