Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Jul 8, 2016, 07:55 AM

  • 02 0322_02 0321 _070816_005531.mp4

Date
07/08/2016
W/O
574757
Weather
Dry
Operator/Surveyor
B.FUGATE
Sewer ID
Z00259
PipeID
P04547
Time
12:55 AM
Certificate
U-508-7069
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
No Pre-Cleaning
Media Label
K3562
Sewer Name
02 EAST COMPTON BOULEVARD RELIEF TRUNK
City
BELLFLOWER
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
39
Purpose
Routine Assessment
Project
WO_574757_TV02059_JUNE2016
Material
Vitrified Clay Pipe
Shape
Circular
Height
21 in.
Width
21 in.
Upstream MH
02 0322
Downstream MH
02 0321
Dir. of Survey
Downstream
Length Surveyed
429.4 ft.
Total Length
429.4 ft.
Structural Index
3
Structural Quick
3421
Structural Rating
14
O&M Index
0
O&M Quick
0000
O&M Rating
0
Overall Index
3
Overall Quick
—
Overall Rating
14
Pipe schematic from manhole 02 0322 to 02 0321
MH: 02 0322MH: 02 0321downstream0 ft. AMH - Upstream Manhole, Survey Begins - 02 03220 ft. MWL - Water Level, 5 %of cross sectional area0 ft. MWM - Water Mark, 10 %of cross sectional area25.3 ft. CM - Crack Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES30.9 ft. CM - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES46.4 ft. CM - Crack Multiple, from 02 to 03 o'clock, within 8 inches of joint: YES245.3 ft. CL - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES255 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start429.4 ft. AMH - Downstream Manhole, Survey Ends - 02 0321429.4 ft. CM - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Finish

Observation photos (5)

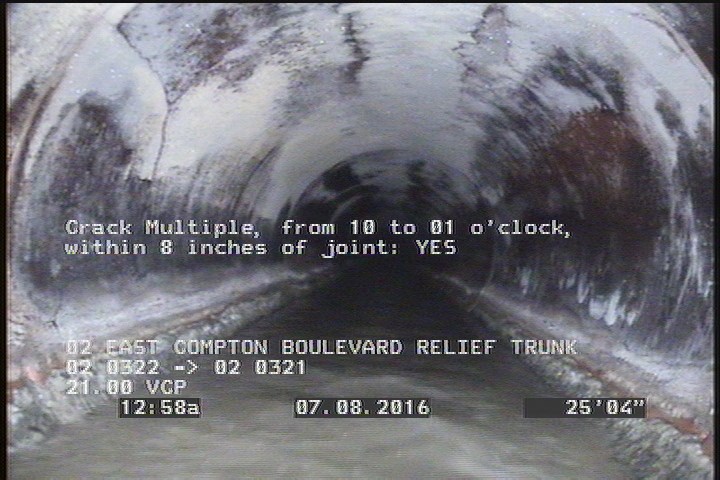

  • Crack Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES

    25.3 ft. - Crack Multiple, from 10 to 01 o'clock, within 8 inches of joint: YES

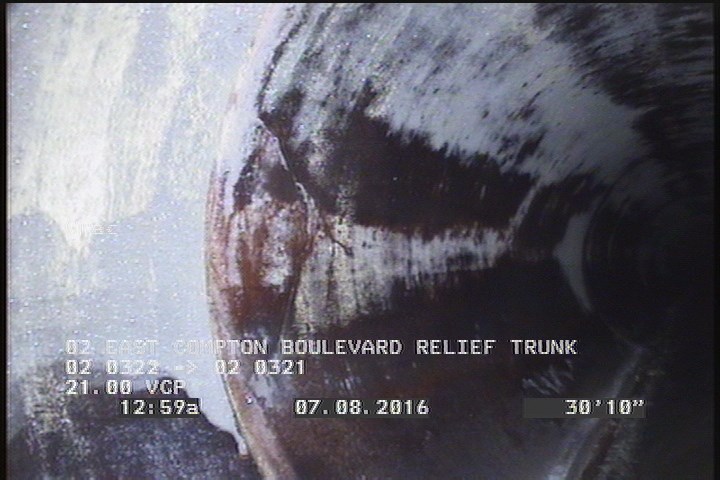

  • Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

    30.9 ft. - Crack Multiple, from 09 to 12 o'clock, within 8 inches of joint: YES

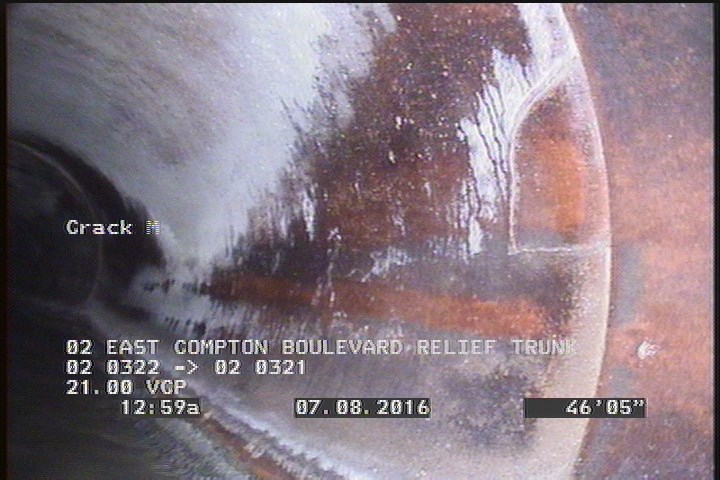

  • Crack Multiple, from 02 to 03 o'clock, within 8 inches of joint: YES

    46.4 ft. - Crack Multiple, from 02 to 03 o'clock, within 8 inches of joint: YES

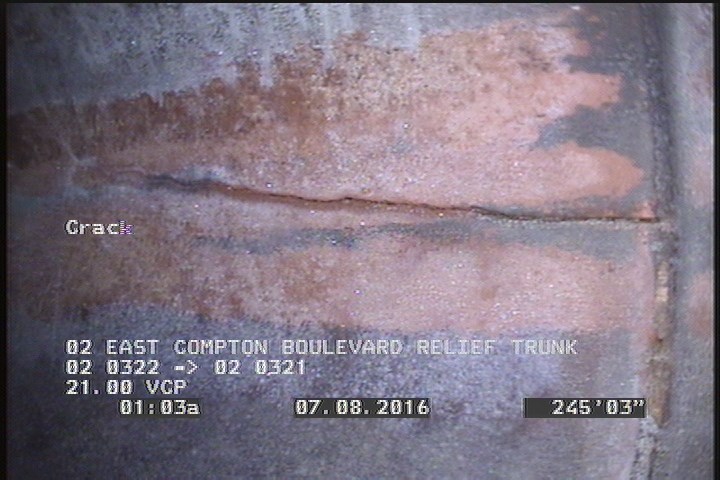

  • Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

    245.3 ft. - Crack Longitudinal, at 03 o'clock, within 8 inches of joint: YES

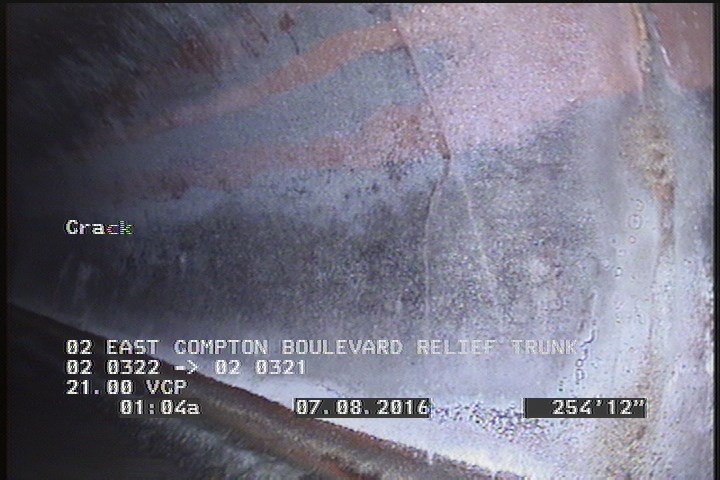

  • Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

    255 ft. - Crack Multiple, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

All inspections of P04547Work order 574757

Observations (10)

DistanceCodeObservation
429.4AMH02 0321
0AMH02 0322
0MWL—
429.4CM—
30.9CM—
0MWM—
245.3CL—
25.3CM—
46.4CM—
255CM—

Properties (5)

additional_info
SC305868
custom_field_two
3
customer
LACSD
datetime
2016-07-08T00:55:05-07:00
sewer_category
Gravity
