Wastewater/Activity/PacpInspection/1.0May 19, 2016, 05:04 AM
03 0296_03 0295_18052016_220823.mp4
- Date
- 05/18/2016
- W/O
- 573469
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00359
- PipeID
- P05149
- Time
- 10:04 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3354
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 23
- Purpose
- Routine Assessment
- Project
- WO_573469_JUNE2016
- Material
- Vitrified Clay Pipe
- Shape
- Circular
- Height
- 42 in.
- Upstream MH
- 03 0296
- Downstream MH
- 03 0295
- Dir. of Survey
- Downstream
- Length Surveyed
- 281.3 ft.
- Total Length
- 281.3 ft.
- Structural Index
- 3
- Structural Quick
- 3E00
- Structural Rating
- 87
- O&M Index
- 2
- O&M Quick
- 412J
- O&M Rating
- 116
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 203
Observation photos (3)

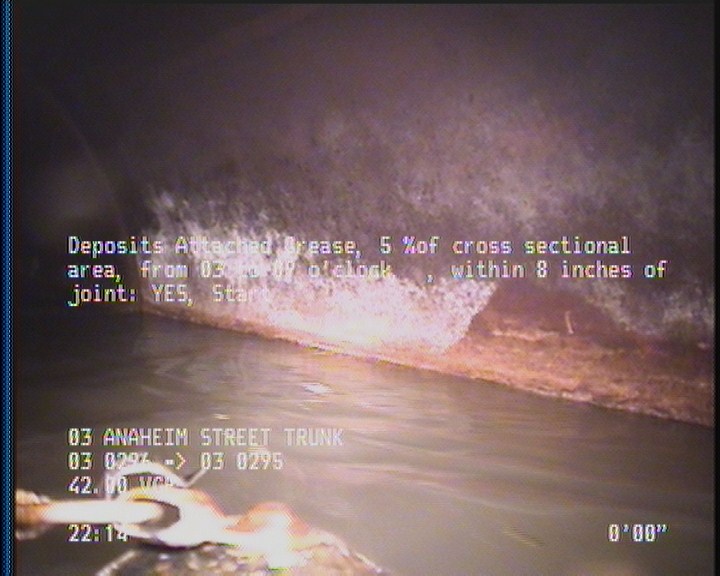

2 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 03 to 09 o'clock, , within 8 inches of joint: YES, Start

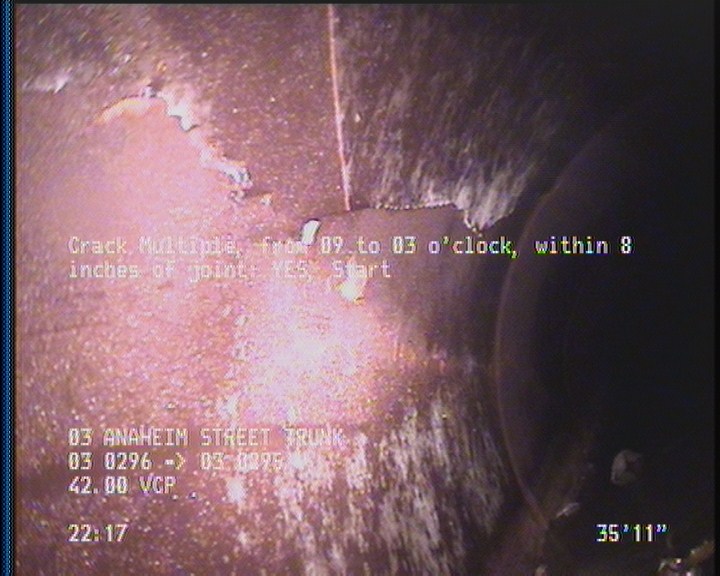

35.9 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Start

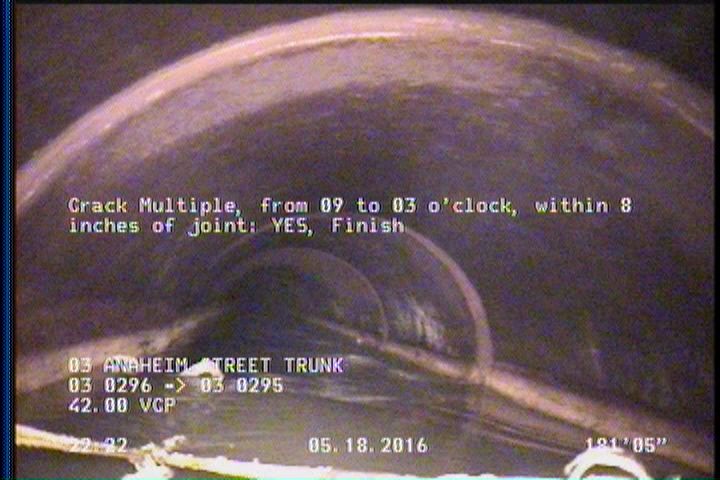

180.1 ft. - Crack Multiple, from 09 to 03 o'clock, within 8 inches of joint: YES, Finish
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 281.3 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 35.9 | CM | — |
| 0 | MWL | — |
| 281.3 | MGO | ACTIVE CONNECTION AT MH 3 O'CLOCK |
| 180.1 | CM | — |
| 281.3 | AMH | 03 0295 |
| 2 | DAGS | — |
| 0 | AMH | 03 0296 |
| 281.3 | DAGS | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC305634
- custom_field_two
- 3
- customer
- LACSD
- datetime
- 2016-05-18T22:04:56-07:00
- sewer_category
- GRAVITY
