Wastewater/Activity/PacpInspection/1.0May 18, 2016, 06:47 AM
03 0331_03 0330_17052016_234806.mp4
- Date
- 05/17/2016
- W/O
- 573469
- Weather
- Dry
- Operator/Surveyor
- S. LOPEZ
- Sewer ID
- Z00359
- PipeID
- P04905
- Time
- 11:47 PM
- Certificate
- U-111-11880
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- No Pre-Cleaning
- Media Label
- K3353
- Sewer Name
- 03 ANAHEIM STREET TRUNK
- City
- LONG BEACH
- Loc. details
- Light Highway
- Location Code
- C
- Use of Sewer
- Sanitary Sewer
- District
- District 03
- Page No.
- 24
- Purpose
- Routine Assessment
- Project
- WO_573469_JUNE2016
- Material
- Reinforced Concrete Pipe
- Shape
- Circular
- Height
- 30 in.
- Upstream MH
- 03 0331
- Downstream MH
- 03 0330
- Dir. of Survey
- Downstream
- Length Surveyed
- 332.2 ft.
- Total Length
- 332.2 ft.
- Structural Index
- 3
- Structural Quick
- 5C3L
- Structural Rating
- 425
- O&M Index
- 2
- O&M Quick
- 2J00
- O&M Rating
- 112
- Overall Index
- 3
- Overall Quick
- —
- Overall Rating
- 537
Observation photos (4)

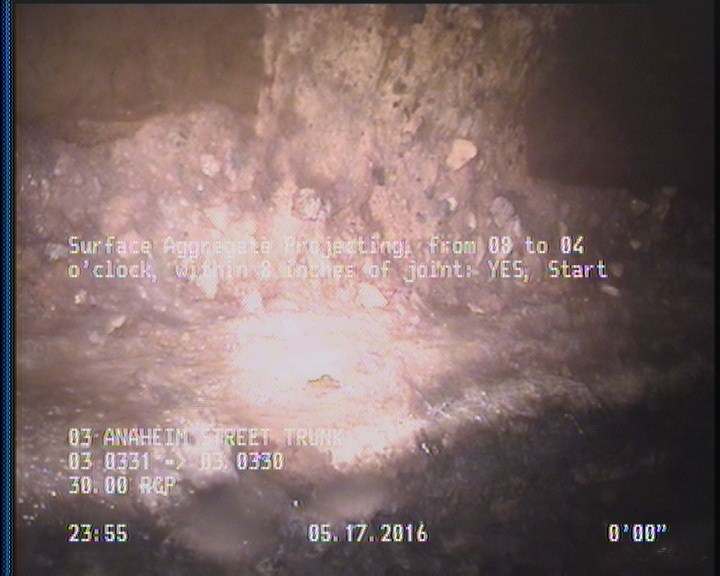

2 ft. - Surface Aggregate Projecting, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

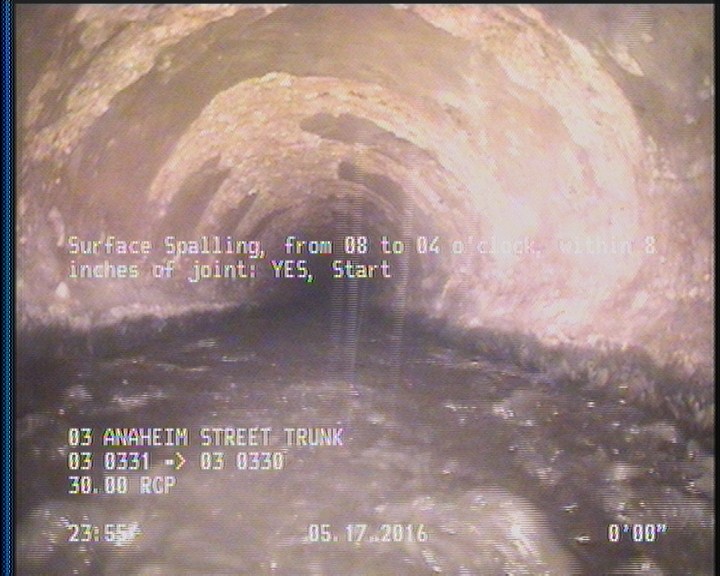

2 ft. - Surface Spalling, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

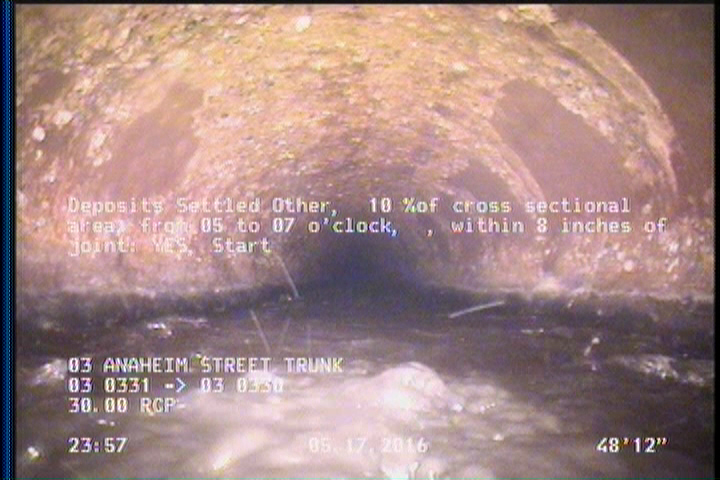

49 ft. - Deposits Settled Other, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start

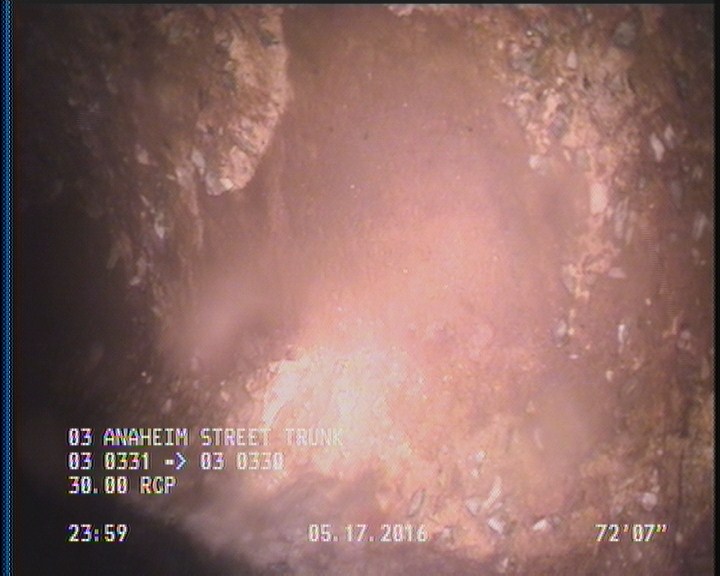

72.6 ft. - Surface Missing Wall, from 09 to 03 o'clock, within 8 inches of joint: YES, Start
Observations (15)
| Distance | Code | Observation |
|---|---|---|
| 0 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 329.5 | SSS | — |
| 2 | SAP | — |
| 72.6 | SMW | — |
| 298.9 | MWL | — |
| 0 | MWL | — |
| 329.5 | SAP | — |
| 0 | MWM | — |
| 2 | SSS | — |
| 332.2 | AMH | 03 0330 |
| 172 | SMW | — |
| 329.5 | DSZ | — |
| 49 | DSZ | — |
| 332.2 | MGO | ACTIVE CONNECTION AT MH 9 O'CLOCK |
| 0 | AMH | 03 0331 |
Properties (5)
- additional_info
- SC305633
- custom_field_two
- 1
- customer
- LACSD
- datetime
- 2016-05-17T23:47:45-07:00
- sewer_category
- GRAVITY
