Wastewater/Activity/PacpInspection/1.0May 17, 2017, 10:07 AM
- Date
- 05/17/2017
- W/O
- 635495
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00942
- PipeID
- P11180
- Time
- 3:07 AM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4529
- Sewer Name
- H JOINT OUTFALL H - UNIT 9C
- City
- COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 25
- Purpose
- Routine Assessment
- Project
- WO_635495_TV22079_MAY2017
- Material
- NRCP
- Shape
- Circular
- Height
- 20 in.
- Width
- 20 in.
- Upstream MH
- H 0772
- Downstream MH
- H 0771
- Dir. of Survey
- Downstream
- Length Surveyed
- 1078.1 ft.
- Total Length
- 1078.1 ft.
- Structural Index
- 1
- Structural Quick
- 1100
- Structural Rating
- 1
- O&M Index
- 2
- O&M Quick
- 2200
- O&M Rating
- 4
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 5
Observation photos (3)

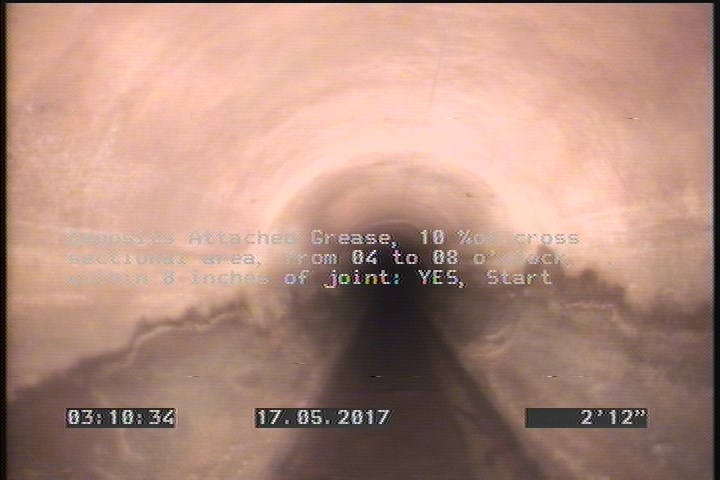

3 ft. - Deposits Attached Grease, 10 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

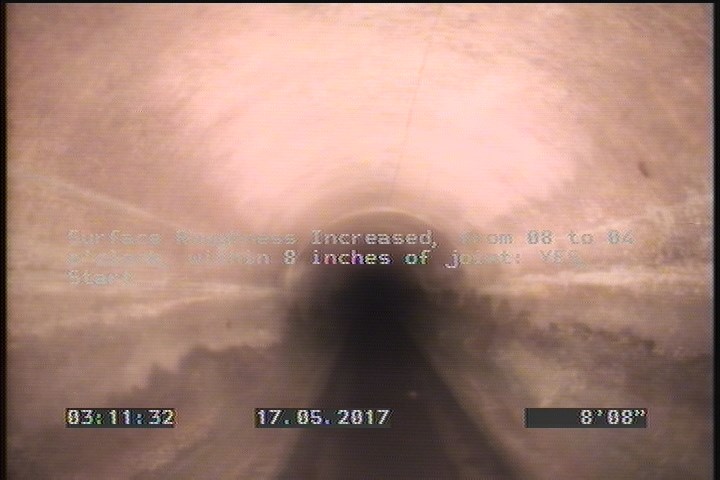

8.7 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

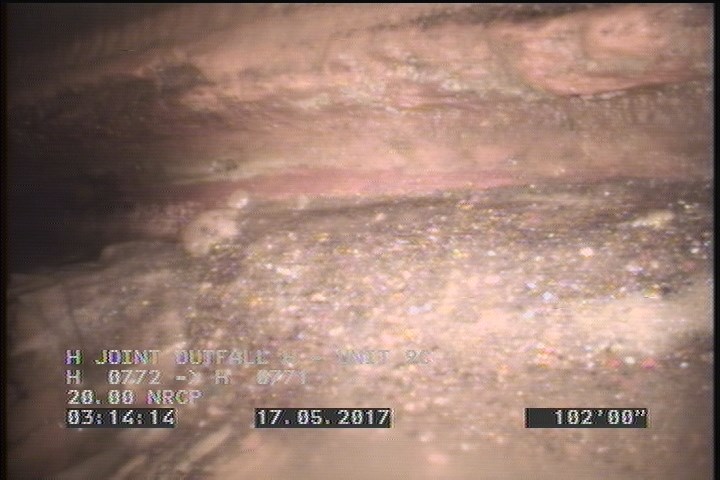

102 ft. - Deposits Settled Fine, 10 %of cross sectional area, from 05 to 07 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 102 | DSF | — |
| 1078.1 | DAGS | — |
| 8.7 | SRI | — |
| 0 | AMH | H 0772 |
| 0 | MWM | — |
| 0 | MWL | — |
| 3 | DAGS | — |
| 1078.1 | AMH | H 0771 |
| 1078.1 | SRI | — |
| 214.2 | DSF | — |
Properties (5)
- additional_info
- SC340743
- custom_field_two
- 4
- customer
- LACSD
- datetime
- 2017-05-17T03:07:24-07:00
- sewer_category
- Gravity
