Wastewater/Activity/PacpInspection/1.0Jun 2, 2017, 05:01 AM
- Date
- 06/01/2017
- W/O
- 635495
- Weather
- Dry
- Operator/Surveyor
- JUAN B
- Sewer ID
- Z00942
- PipeID
- P24210
- Time
- 10:01 PM
- Certificate
- U-715-07000770
- System Owner
- LACSD
- Date Cleaned
- —
- Pre-Cleaning
- Not Known
- Media Label
- K4536
- Sewer Name
- H JOINT OUTFALL H - UNIT 9C
- City
- WEST COVINA
- Loc. details
- Main Highway - Urban
- Location Code
- A
- Use of Sewer
- Sanitary Sewer
- District
- District 22
- Page No.
- 31
- Purpose
- Routine Assessment
- Project
- WO_635495_TV22079_MAY2017
- Material
- NRCP
- Shape
- Circular
- Height
- 22 in.
- Width
- 22 in.
- Upstream MH
- H 0765A
- Downstream MH
- H 0766
- Dir. of Survey
- Upstream
- Length Surveyed
- 1524.1 ft.
- Total Length
- 1524.1 ft.
- Structural Index
- 1
- Structural Quick
- 1200
- Structural Rating
- 2
- O&M Index
- 2
- O&M Quick
- 3Y2b
- O&M Rating
- 739
- Overall Index
- 2
- Overall Quick
- —
- Overall Rating
- 741
Observation photos (3)

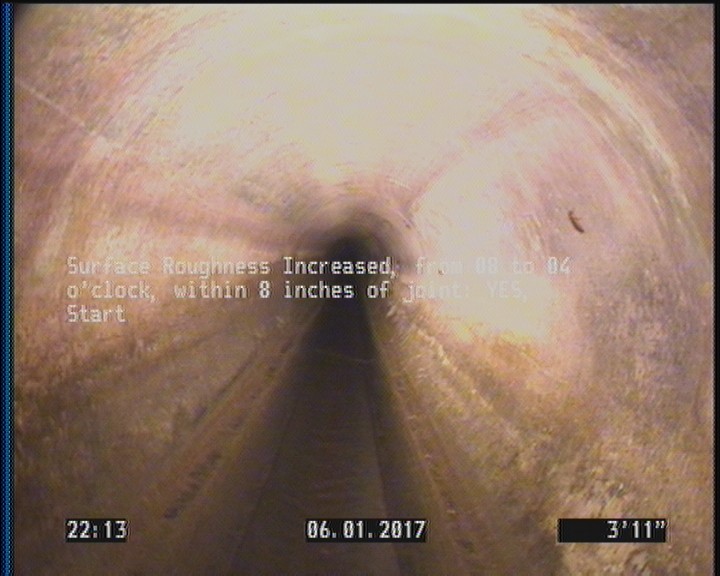

3.9 ft. - Surface Roughness Increased, from 08 to 04 o'clock, within 8 inches of joint: YES, Start

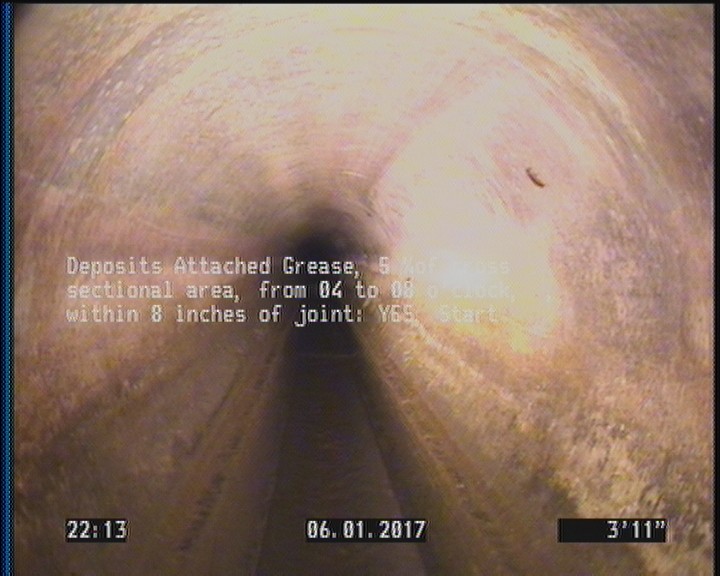

3.9 ft. - Deposits Attached Grease, 5 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start

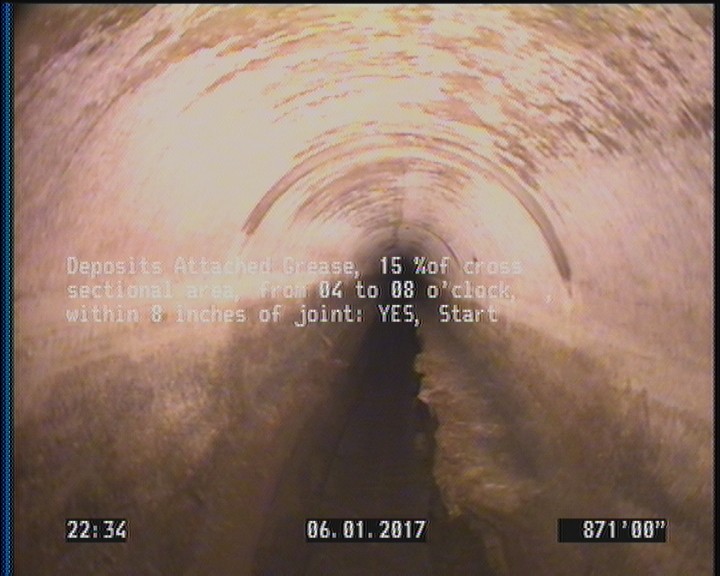

871 ft. - Deposits Attached Grease, 15 %of cross sectional area, from 04 to 08 o'clock, , within 8 inches of joint: YES, Start
Observations (10)
| Distance | Code | Observation |
|---|---|---|
| 0 | MWL | — |
| 871 | DAGS | — |
| 1524.1 | AMH | H 0766 |
| 1524.1 | SRI | — |
| 3.9 | SRI | — |
| 1524.1 | DAGS | — |
| 3.9 | DAGS | — |
| 0 | AMH | H 0765A |
| 871 | DAGS | — |
| 0 | MWM | — |
Properties (5)
- additional_info
- SC345351
- custom_field_two
- 5
- customer
- LACSD
- datetime
- 2017-06-01T22:01:35-07:00
- sewer_category
- Gravity
