Sanitation Districts of Los Angeles Countyt4 Spatial
Wastewater/Activity/PacpInspection/1.0Aug 7, 2017, 08:47 AM

  • Section#2_H 0334_H 0333__872017__G6794.mp4

Date
08/07/2017
W/O
0646404
Weather
Dry
Operator/Surveyor
MARTIN
Sewer ID
Z00175
PipeID
P10784
Time
1:47 AM
Certificate
U-1014-06022543
System Owner
LACSD
Date Cleaned
—
Pre-Cleaning
Not Known
Media Label
G6794
Sewer Name
H JOINT OUTFALL H - UNIT 4
City
PICO RIVERA
Loc. details
Light Highway
Location Code
C
Use of Sewer
Sanitary Sewer
District
District 02
Page No.
19A
Purpose
Capital Improvement Program Assesment
Project
20170807MDM_JOINT_OUTFALL_H_UNIT_4
Material
Reinforced Concrete Pipe
Shape
Circular
Height
63 in.
Upstream MH
H 0334
Downstream MH
H 0333
Dir. of Survey
Downstream
Length Surveyed
427.5 ft.
Total Length
427.5 ft.
Structural Index
3
Structural Quick
3200
Structural Rating
6
O&M Index
5
O&M Quick
5141
O&M Rating
9
Overall Index
4
Overall Quick
—
Overall Rating
15
Pipe schematic from manhole H 0334 to H 0333
MH: H 0334MH: H 0333downstream0 ft. MWL - Water Level, 70 %of cross sectional area0 ft. MWM - Water Mark, 80 %of cross sectional area0 ft. AMH - Upstream Manhole, Survey Begins - 1:50AM2 ft. MGO - General Observation - MAG COAT 100% START 10:00 TO 2:008 ft. MGP - General Photograph - MAG COAT192.9 ft. SAV - Surface Aggregate Visible, from 10 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG300 ft. MGO - General Observation - MAG COAT 100%318 ft. MWL - Water Level, 30 %of cross sectional area318 ft. MWM - Water Mark, 50 %of cross sectional area321 ft. SAV - Surface Aggregate Visible, from 11 to 12 o'clock, within 8 inches of joint: YES - SEVERE AGG427.1 ft. MGO - General Observation - M,AG COAT 100% FINISH427.5 ft. AMH - Downstream Manhole, Survey Ends - 2:40AM

Observation photos (5)

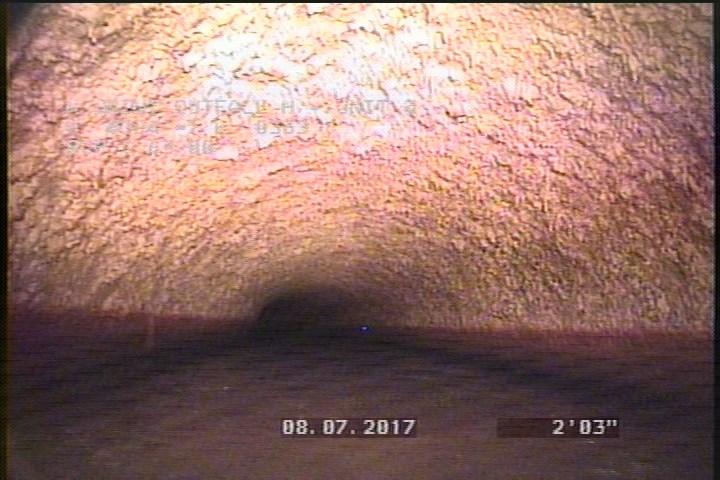

  • General Observation - MAG COAT 100% START 10:00 TO 2:00

    2 ft. - General Observation - MAG COAT 100% START 10:00 TO 2:00

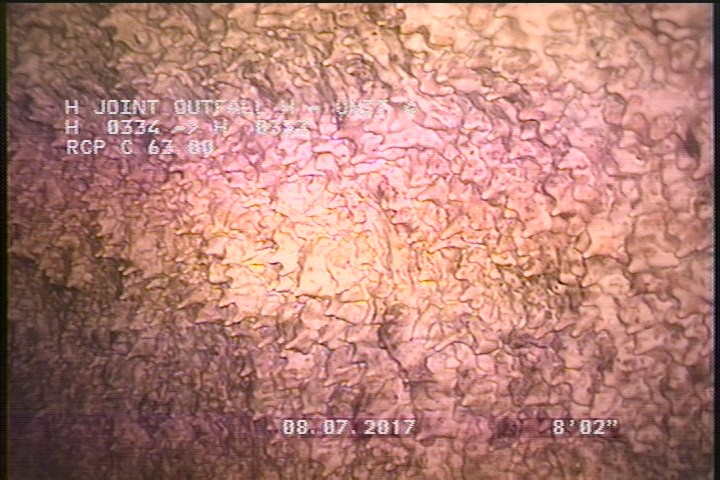

  • General Photograph - MAG COAT

    8 ft. - General Photograph - MAG COAT

  • Surface Aggregate Visible, from 10 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG

    192.9 ft. - Surface Aggregate Visible, from 10 to 11 o'clock, within 8 inches of joint: NO - SEVERE AGG

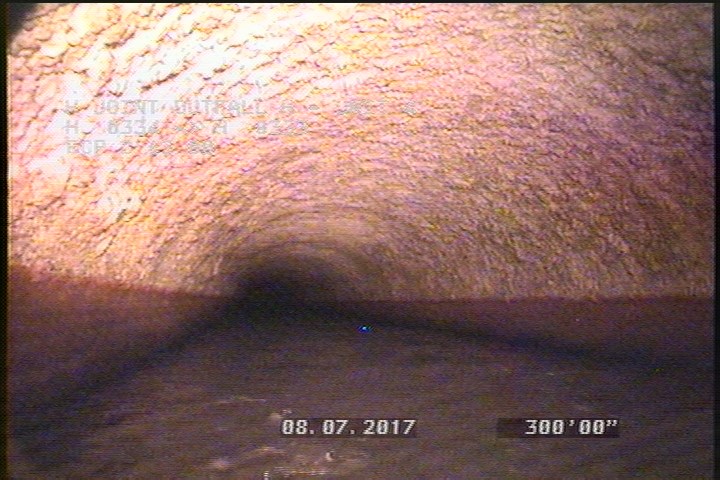

  • General Observation - MAG COAT 100%

    300 ft. - General Observation - MAG COAT 100%

  • Surface Aggregate Visible, from 11 to 12 o'clock, within 8 inches of joint: YES - SEVERE AGG

    321 ft. - Surface Aggregate Visible, from 11 to 12 o'clock, within 8 inches of joint: YES - SEVERE AGG

All inspections of P10784Work order 0646404

Observations (12)

DistanceCodeObservation
427.1MGOM,AG COAT 100% FINISH
427.5AMH2:40AM
8MGPMAG COAT
192.9SAVSEVERE AGG
318MWL—
0MWL—
318MWM—
321SAVSEVERE AGG
2MGOMAG COAT 100% START 10:00 TO 2:00
300MGOMAG COAT 100%
0MWM—
0AMH1:50AM

Properties (4)

custom_field_three
100% MAG COAT
custom_field_two
5
customer
LACSD
datetime
2017-08-07T01:47:32-07:00
